Front Wheel Speed Sensor Jumper Harness Removal and Installation: Installation
- Install the front wheel speed sensor jumper harness.

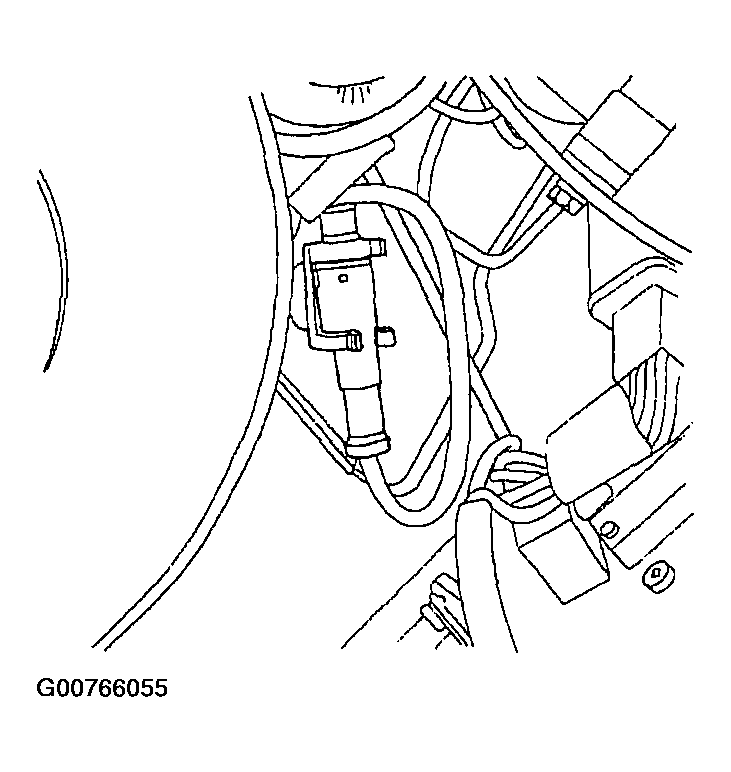

- Connect the front wheel speed sensor electrical connector and secure it into the clamps.
Courtesy of SUZUKI OF AMERICA CORP.
- Replace the jumper harness into the wiring harness.
- Insert the terminals into connector as they had been removed:
- Right-side - terminals 4 (WHT) and 5 (GRY).
- Left-side - terminals 6 (BRN) and 7 (LT BLU).

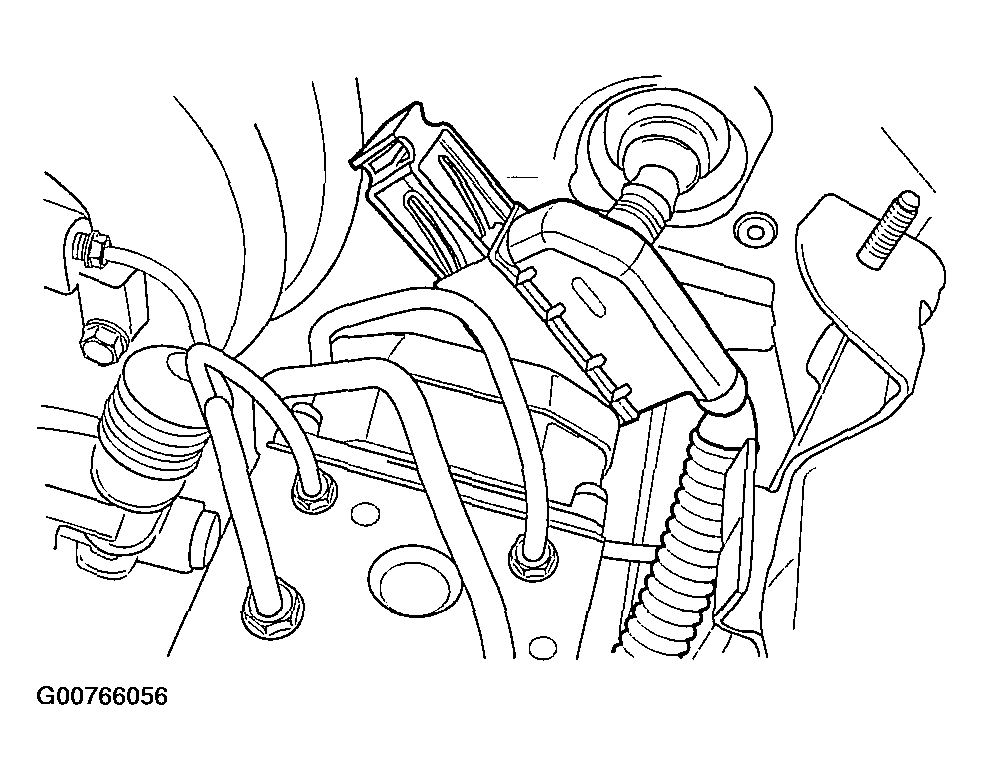

- Connect EBCM connector.
- Connect the negative battery cable.
Courtesy of SUZUKI OF AMERICA CORP.
