ABS 5.3 Assembly Removal and Installation: Installation

Insert the ABS 5.3 hydraulic unit into its mounting bracket and install the nuts.
Tighten

Tighten the ABS 5.3 mounting nuts to 15 N.m (11 lb-ft).
Remove the screw plugs and install all of the hydraulic brake pipes.

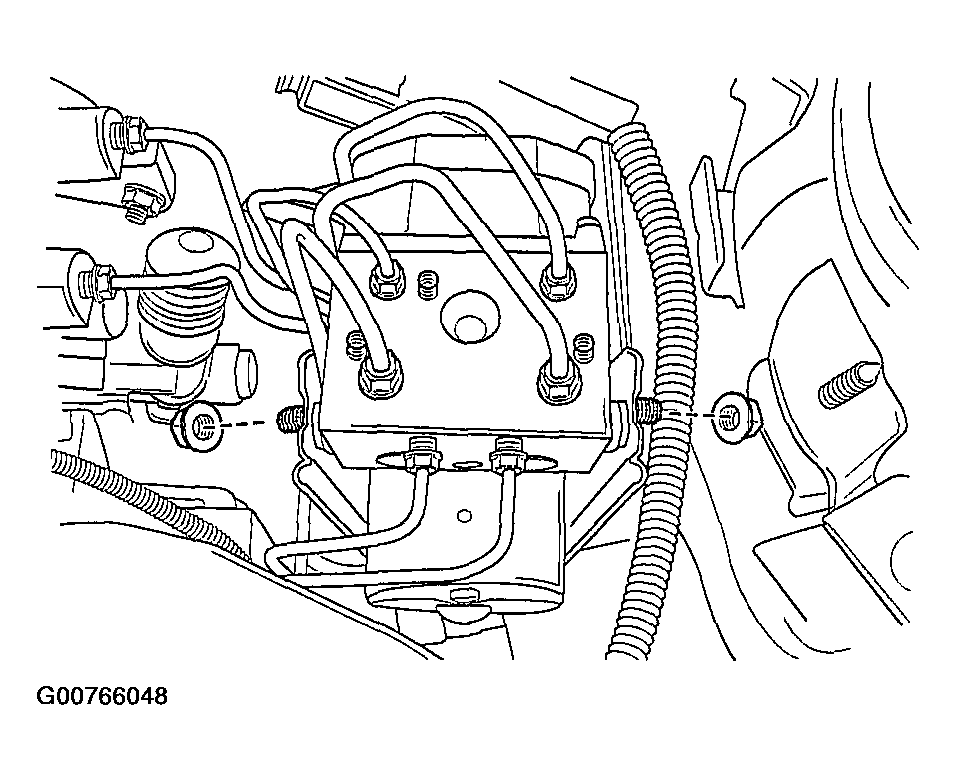

Fig 1: Installing The Hydraulic Brake Pipes
Courtesy of SUZUKI OF AMERICA CORP.

Tighten

Tighten the brake pipe nuts to 22 N.m (16 lb-ft).
Connect the 31-pin wiring harness connector J1.
Connect the negative battery cable.
Bleed the hydraulic system. Refer to BLEEDING PROCEDURES .
Install the engine coolant reservoir tank and fill it with the engine coolant.
