Electronic Brake-Force Distribution (EBD) System Indicator Lamp Inoperative: Notes

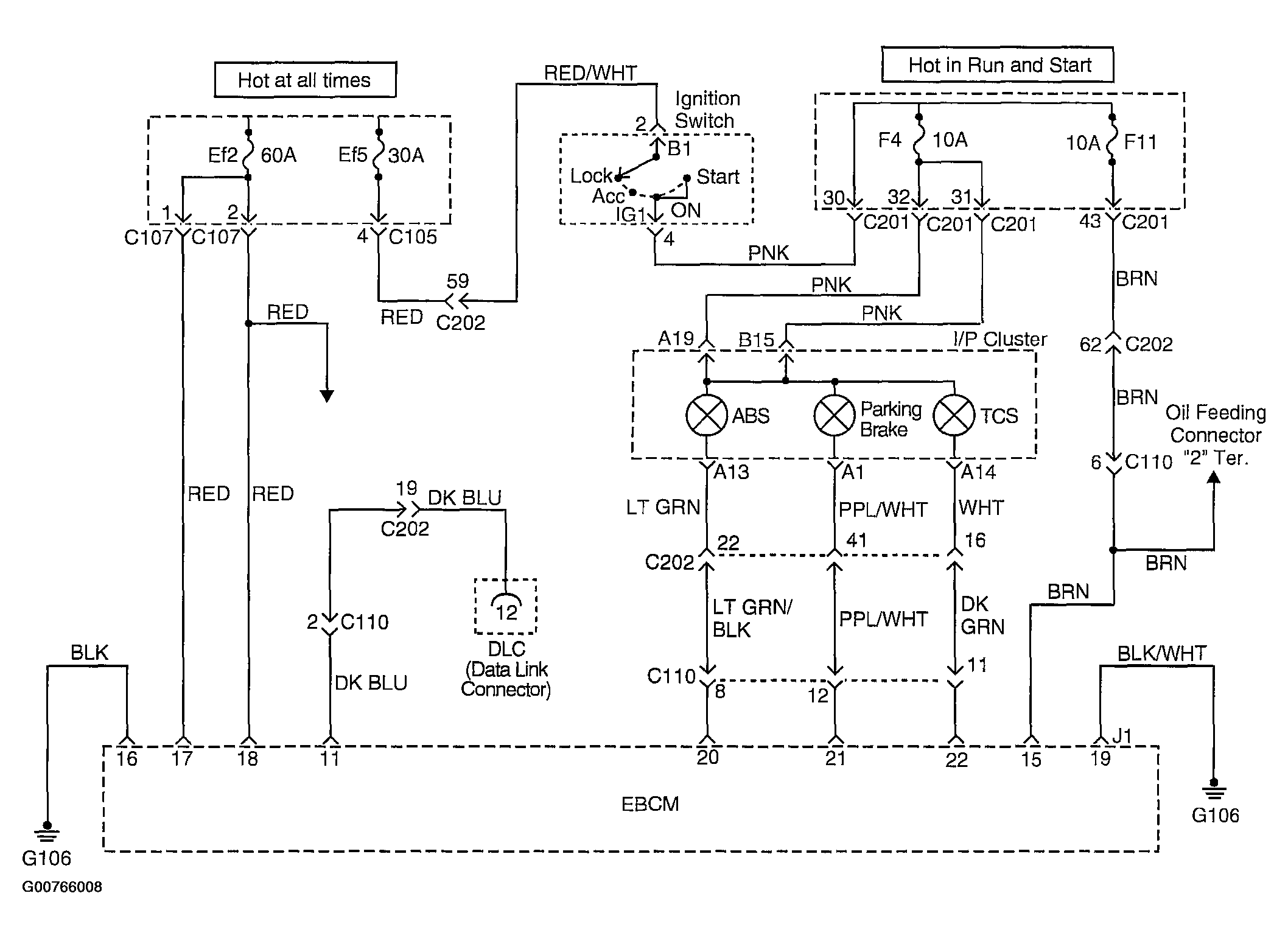

Fig 1: Electronic Brake-Force Distribution (EBD) System Indicator Lamp Inoperative - Diagnostic Wiring Diagram
G00766008Courtesy of SUZUKI OF AMERICA CORP.
