Diagnostic Circuit Check: Notes

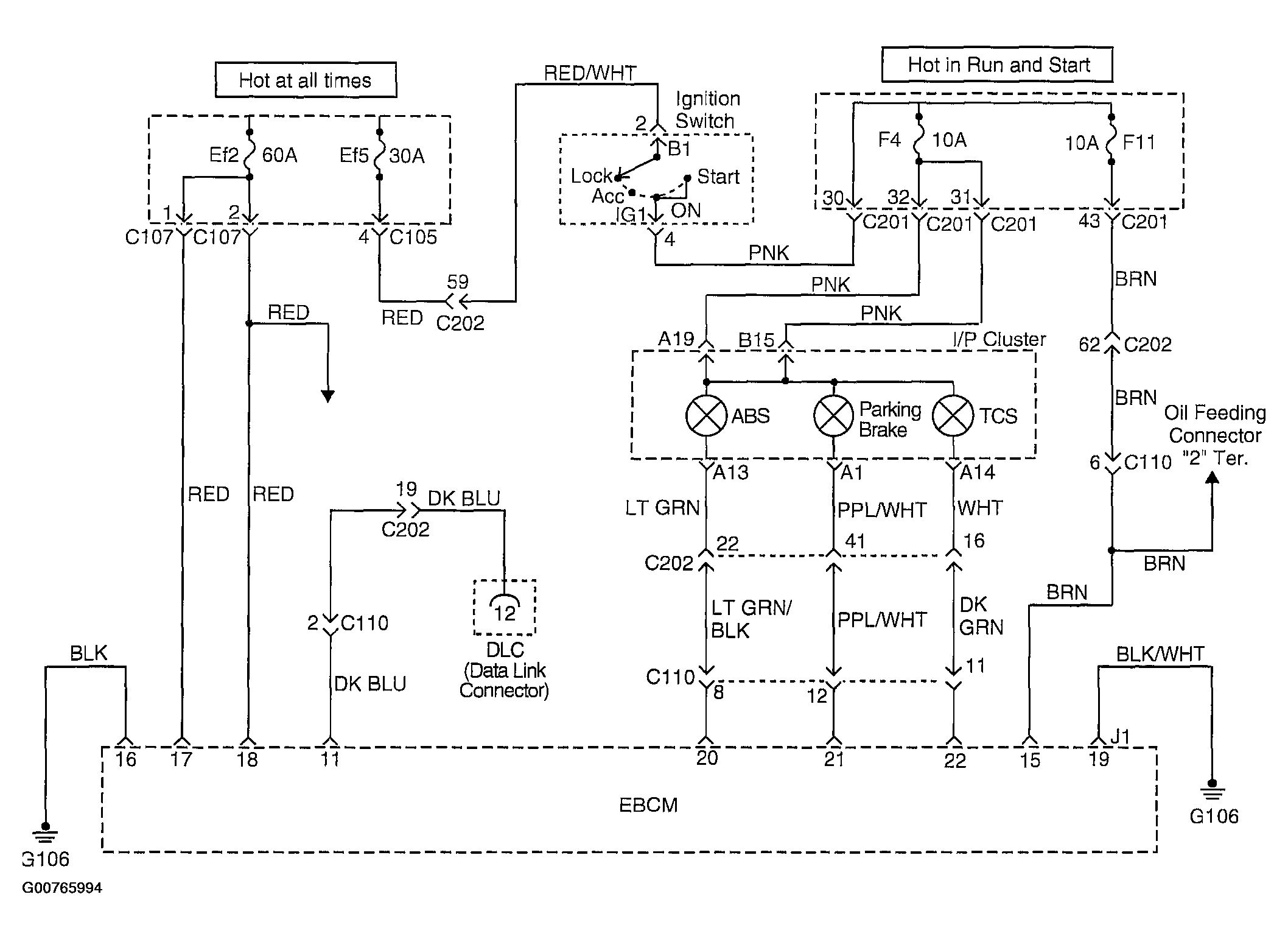

Fig 1: Diagnostic Circuit Check - Diagnostic Wiring Diagram

Courtesy of SUZUKI OF AMERICA CORP.

The Diagnostic Circuit Check is an organized approach to identifying a problem created by an antilock brake system (ABS) malfunction. It must be the starting point for any ABS complaint diagnosis because it directs the service technician to the next logical step in diagnosing the complaint.
