Diagnostic Aids

It is very important to perform a thorough inspection of the wiring and the connectors. Failure to inspect the wiring and the connectors carefully and completely may result in misdiagnosis, causing part replacement with the reappearance of the malfunction.

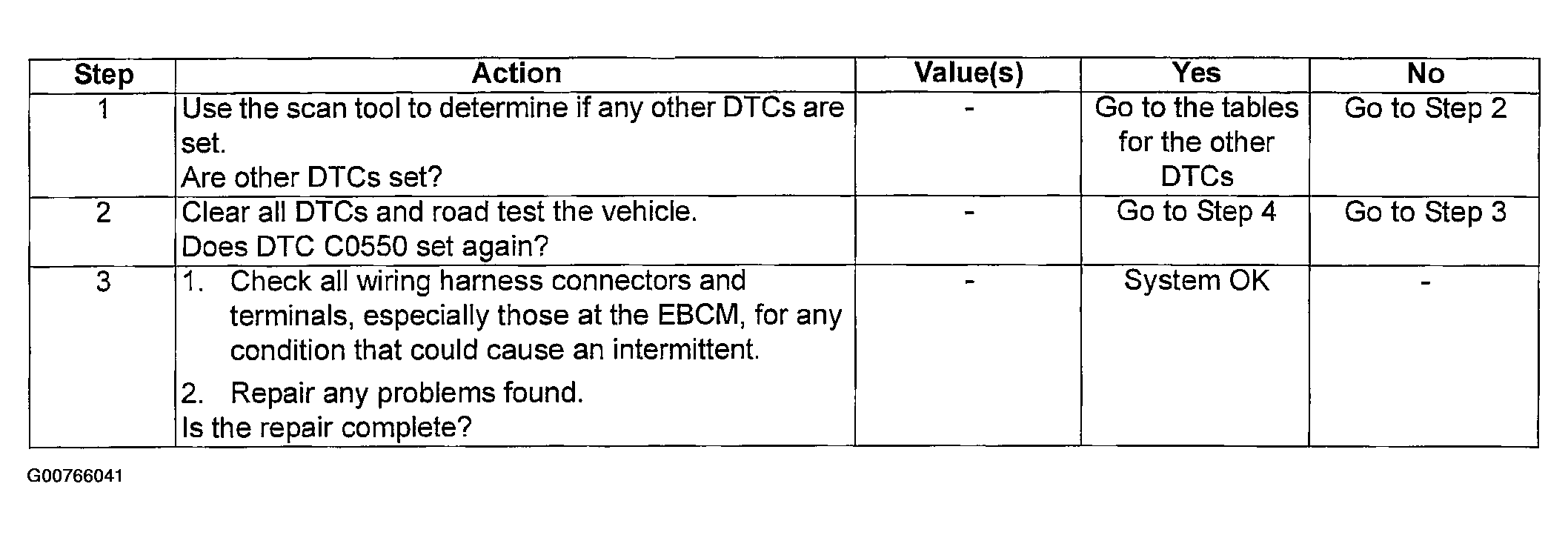

Fig 1: DTC C0550 ABS Control Module Internal Fault Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

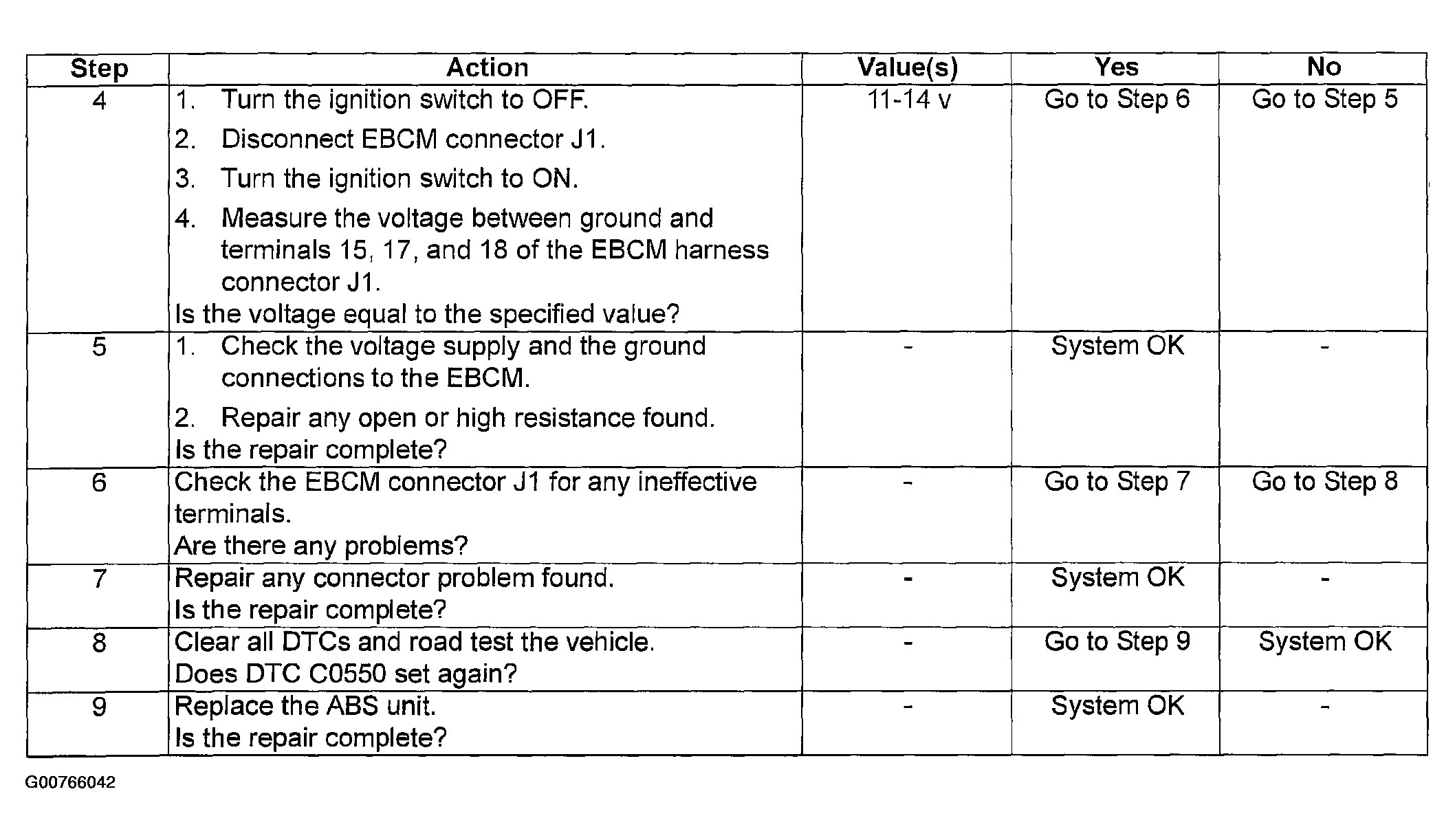

Fig 2: DTC C0550 ABS Control Module Internal Fault Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
