Diagnostic Trouble Codes Identification: Notes
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|

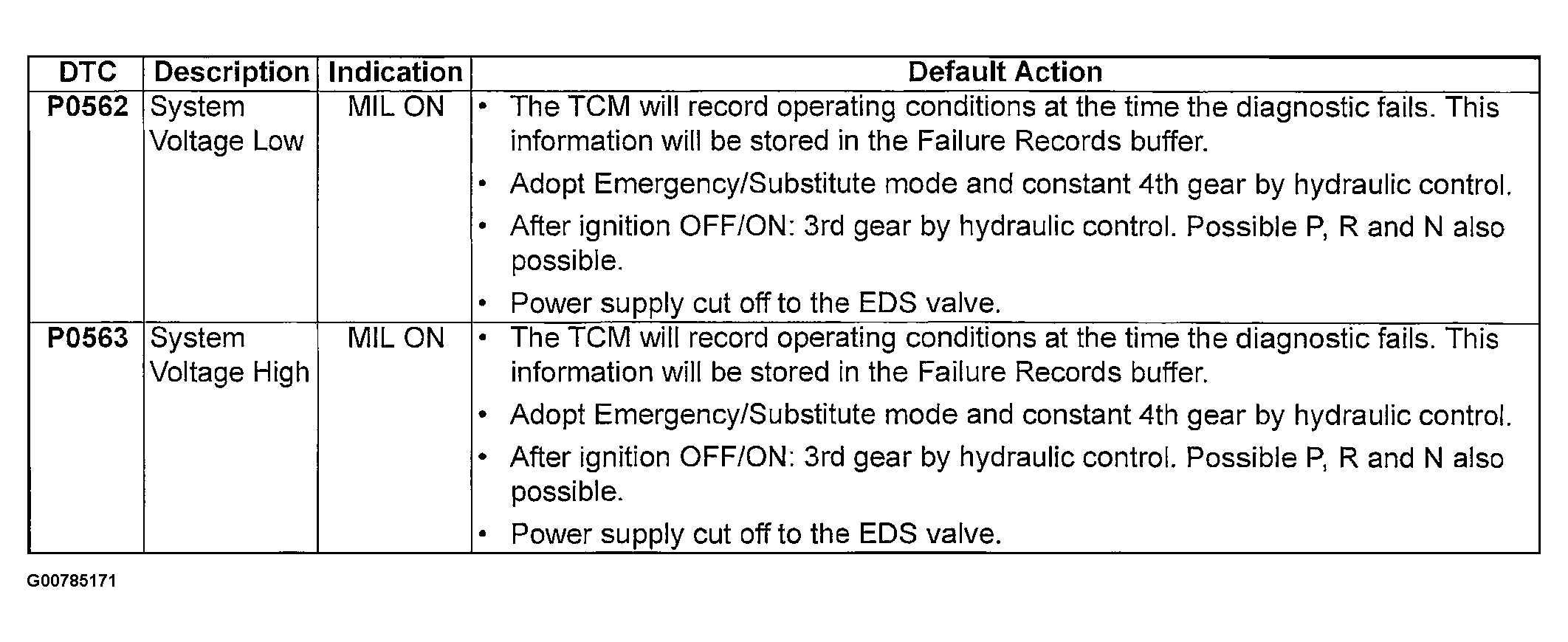

| DTC P0562 | System Voltage Low |
| DTC P0563 | System Voltage High |

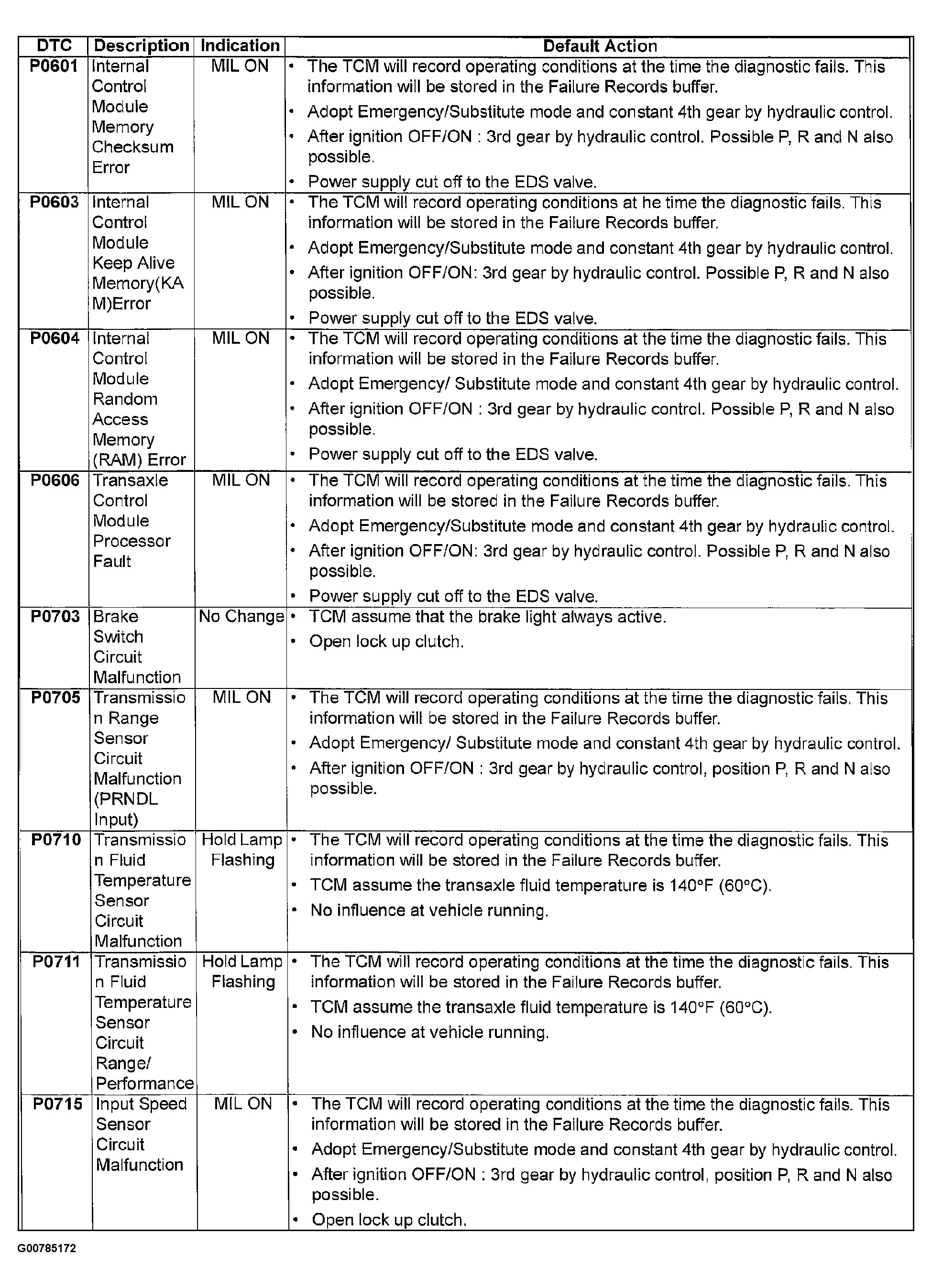

| DTC P0601 | Internal Control Module Memory Checksum Error |
| DTC P0603 | Internal Control Module Keep Alive Memory (KAM) Error |
| DTC P0604 | Internal Control Module Random Access Memory (RAM) Error |
| DTC P0606 | Transaxle Control Module Processor Fault |
| DTC P0703 | Brake Switch Circuit Malfunction |
| DTC P0705 | Transmission Range Sensor Circuit Malfunction (PRNDL Input) |
| DTC P0710 | Transmission Fluid Temperature Sensor Circuit Malfunction |
| DTC P0711 | Transmission Fluid Temperature Sensor Circuit Range/Performance |
| DTC P0715 | Input Speed Sensor (ISS) Circuit Malfunction |

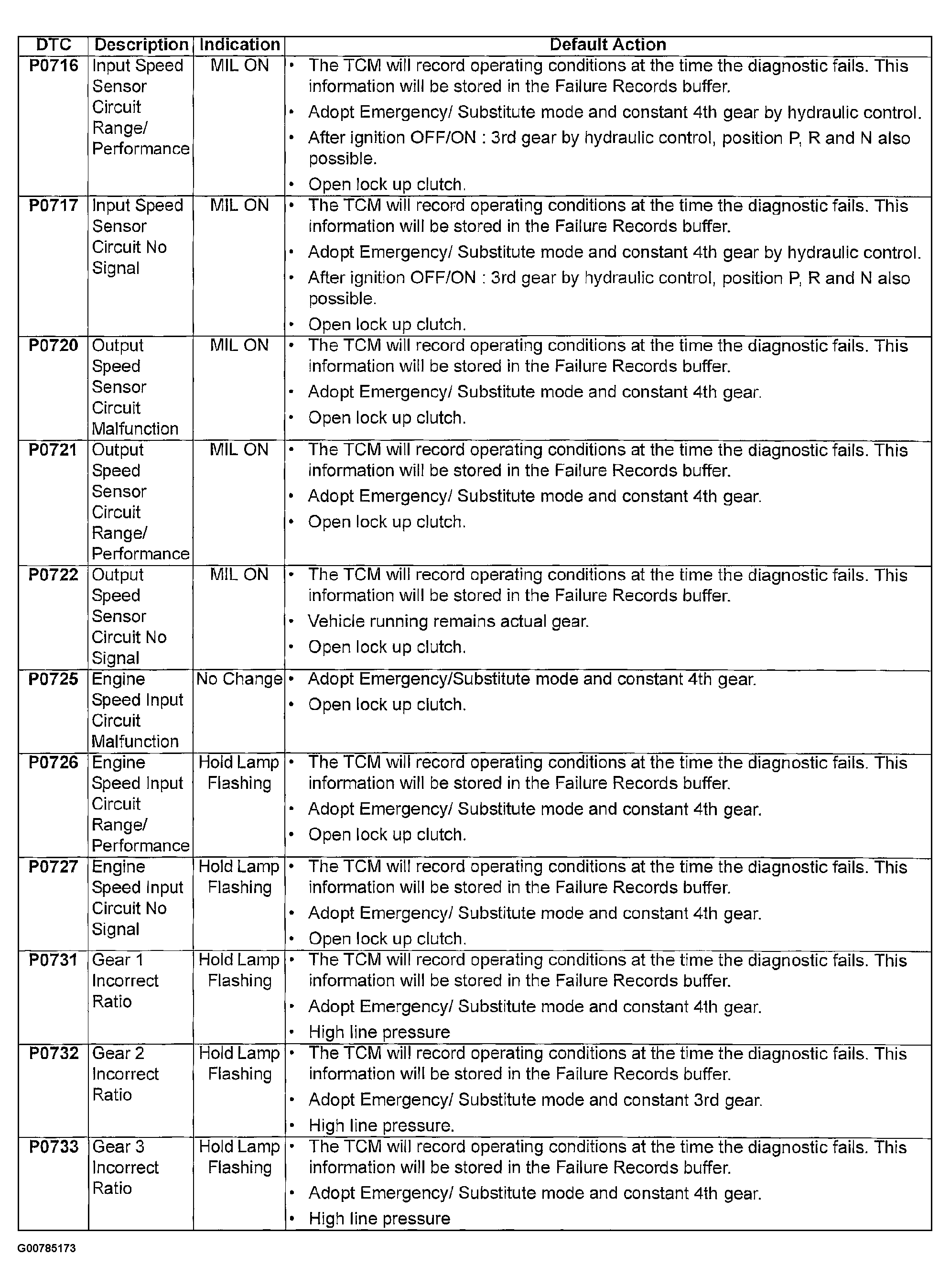

| DTC P0716 | Input Speed Sensor (ISS) Circuit Range/Performance |
| DTC P0717 | Input Speed Sensor (ISS) Circuit No Signal |
| DTC P0720 | Output Speed Sensor (OSS) Circuit Malfunction |
| DTC P0721 | Output Speed Sensor (OSS) Circuit Range/Performance |
| DTC P0722 | Output Speed Sensor (OSS) Circuit No Signal |
| DTC P0725 | Engine Speed Input Circuit Malfunction |
| DTC P0726 | Engine Speed Input Circuit Range/Performance |
| DTC P0727 | Engine Speed Input Circuit No Signal |
| DTC P0731 | Gear 1 Incorrect Ratio |
| DTC P0732 | Gear 2 Incorrect Ratio |
| DTC P0733 | Gear 3 Incorrect Ratio |

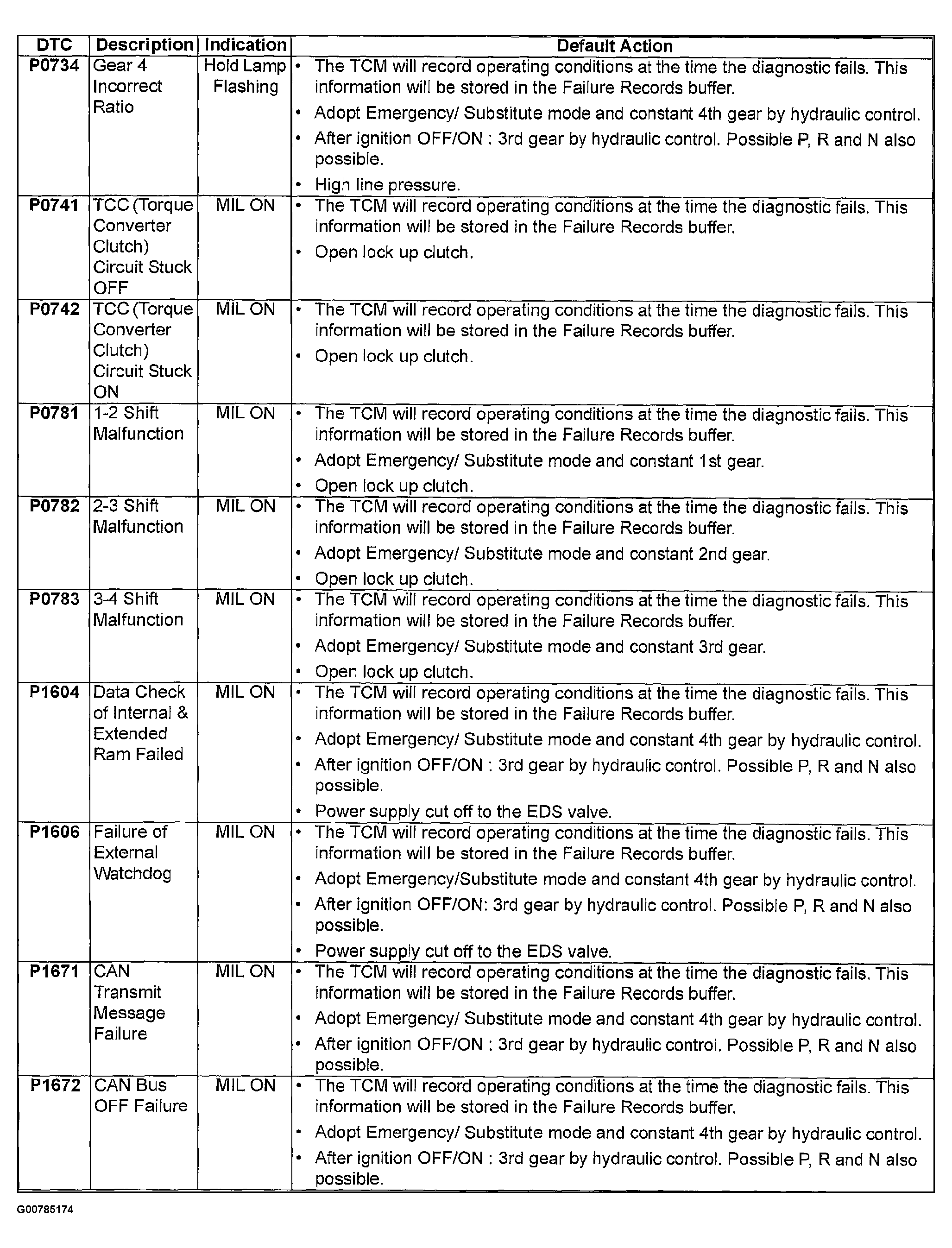

| DTC P0734 | Gear 4 Incorrect Ratio |
| DTC P0741 | TCC (Torque Converter Clutch) Circuit Stuck OFF |
| DTC P0742 | TCC (Torque Converter Clutch) Circuit Stuck ON |
| DTC P0781 | 1-2 Shift Malfunction |
| DTC P0782 | 2-3 Shift Malfunction |
| DTC P0783 | 3-4 Shift Malfunction |
| DTC P1604 | Data Check of Internal & Extended RAM Failed |
| DTC P1606 | Failure of External Watchdog |
| DTC P1671 | CAN Transmit Message Failure |
| DTC P1672 | CAN Bus Off Failure |

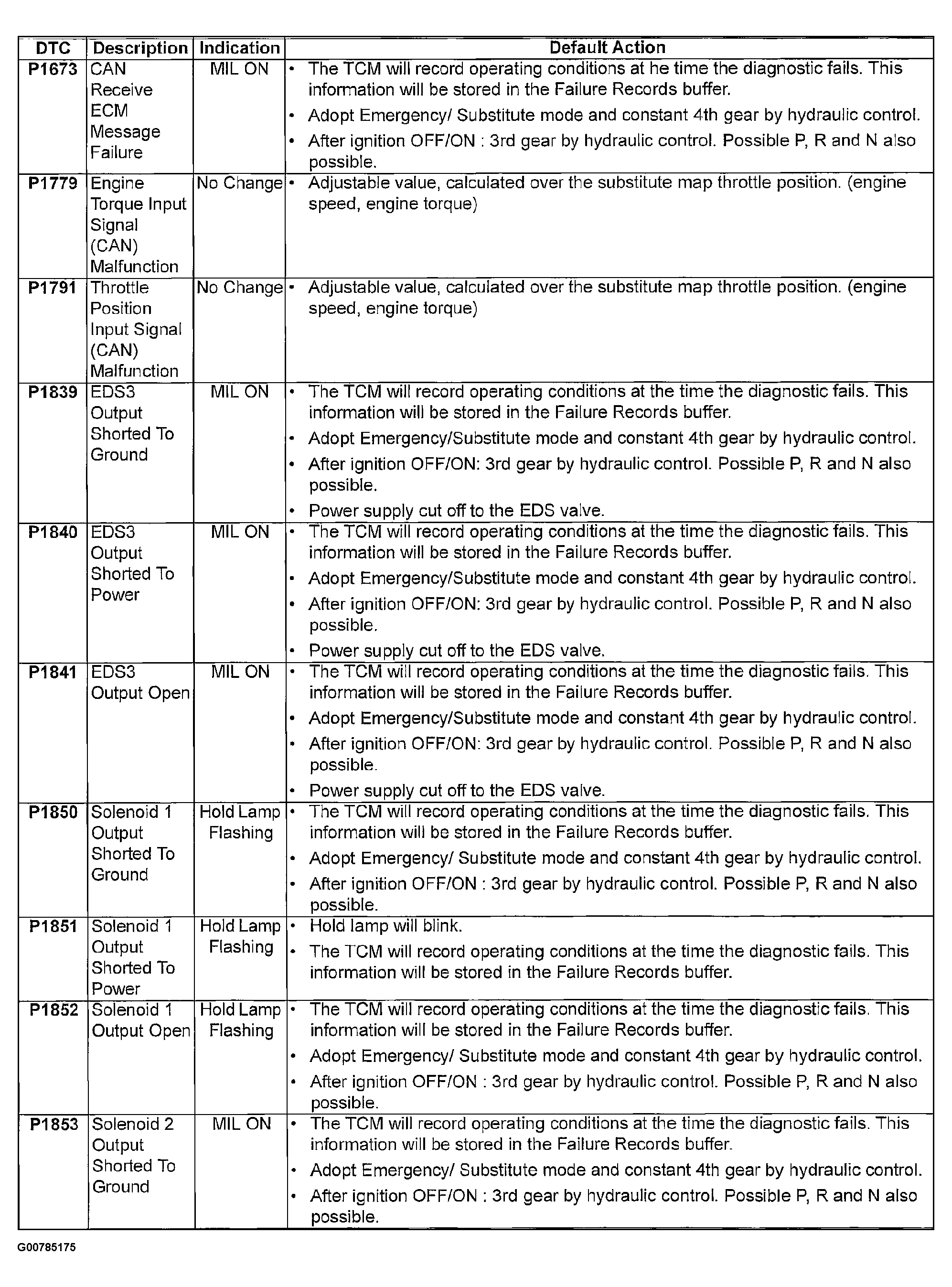

| DTC P1673 | CAN Receive ECM Message Failure |
| DTC P1779 | Engine Torque Input Signal Malfunction |
| DTC P1791 | Throttle Position Input Signal Circuit Malfunction |
| DTC P1839 | EDS 3 Output Shorted to Ground |
| DTC P1840 | EDS 3 Output Shorted to Power |
| DTC P1841 | EDS 3 Output Open |
| DTC P1850 | Solenoid 1 Output Shorted to Ground |
| DTC P1851 | Solenoid 1 Output Shorted to Power |
| DTC P1852 | Solenoid 1 Output Open |
| DTC P1853 | Solenoid 2 Output Shorted to Ground |

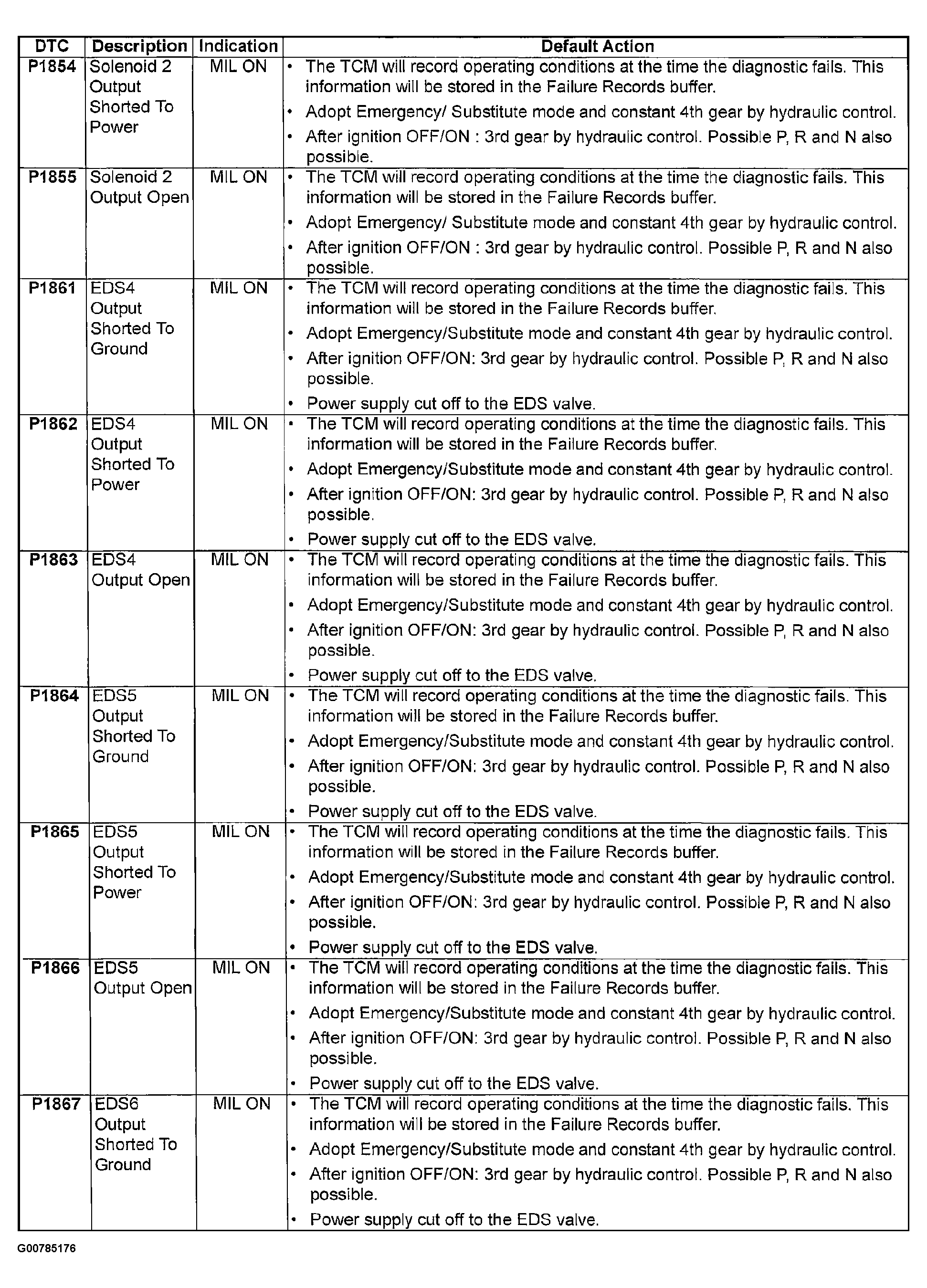

| DTC P1854 | Solenoid 2 Output Shorted to Power |
| DTC P1855 | Solenoid 2 Output Open |
| DTC P1861 | EDS 4 Output Shorted to Ground |
| DTC P1862 | EDS 4 Output Shorted to Power |
| DTC P1863 | EDS 4 Output Open |
| DTC P1864 | EDS 5 Output Shorted to Ground |
| DTC P1865 | EDS 5 Output Shorted to Power |
| DTC P1866 | EDS 5 Output Open |
| DTC P1867 | EDS 6 Output Shorted to Ground |

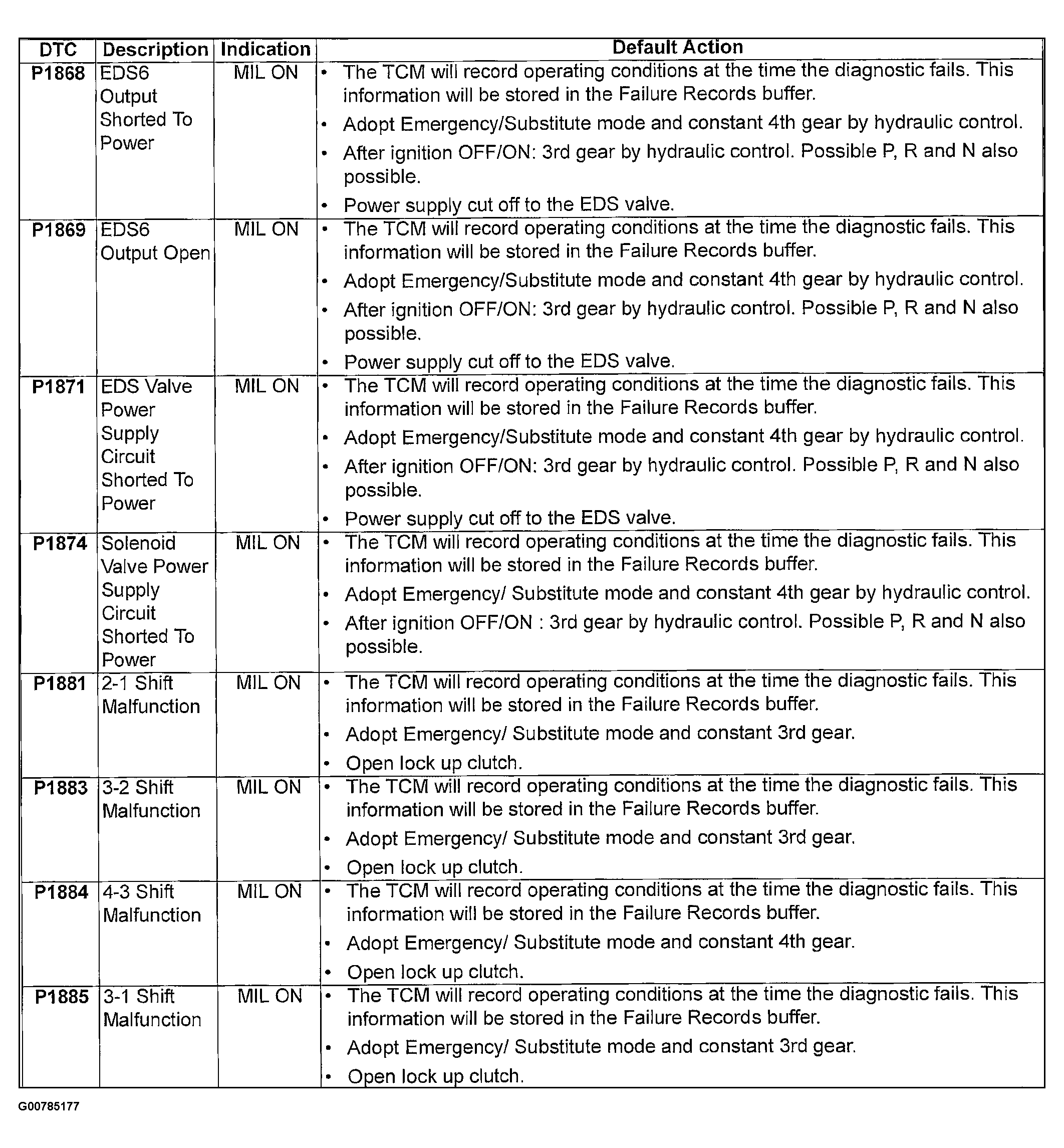

| DTC P1868 | EDS 6 Output Shorted to Power |
| DTC P1869 | EDS 6 Output Open |
| DTC P1871 | EDS Valve Power Supply Circuit Shorted to Power |
| DTC P1874 | Solenoid Valve Power Supply Circuit Shorted to Power |
| DTC P1881 | 2-1 Shift Malfunction |
| DTC P1883 | 3-2 Shift Malfunction |
| DTC P1884 | 4-3 Shift Malfunction |
| DTC P1885 | 3-1 Shift Malfunction |
