DTC P1868: EDS 6 Output Shorted to Power: Notes

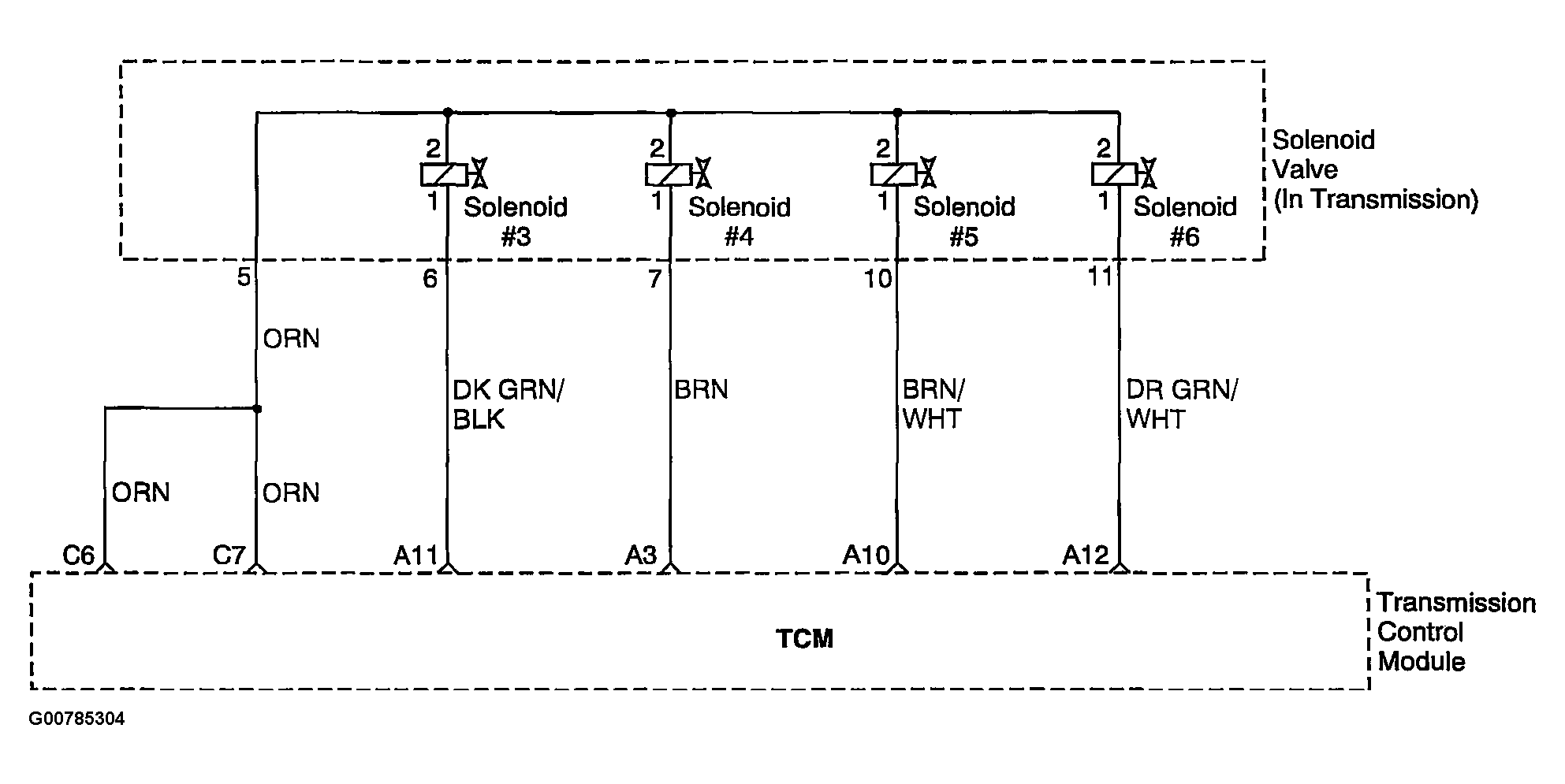

Fig 1: DTC P1868 EDS 6 Output Shorted to Power Diagnostic Wiring Diagram
G00785304Courtesy of SUZUKI OF AMERICA CORP.
