DTC P1852: Solenoid 1 Output Open: Notes

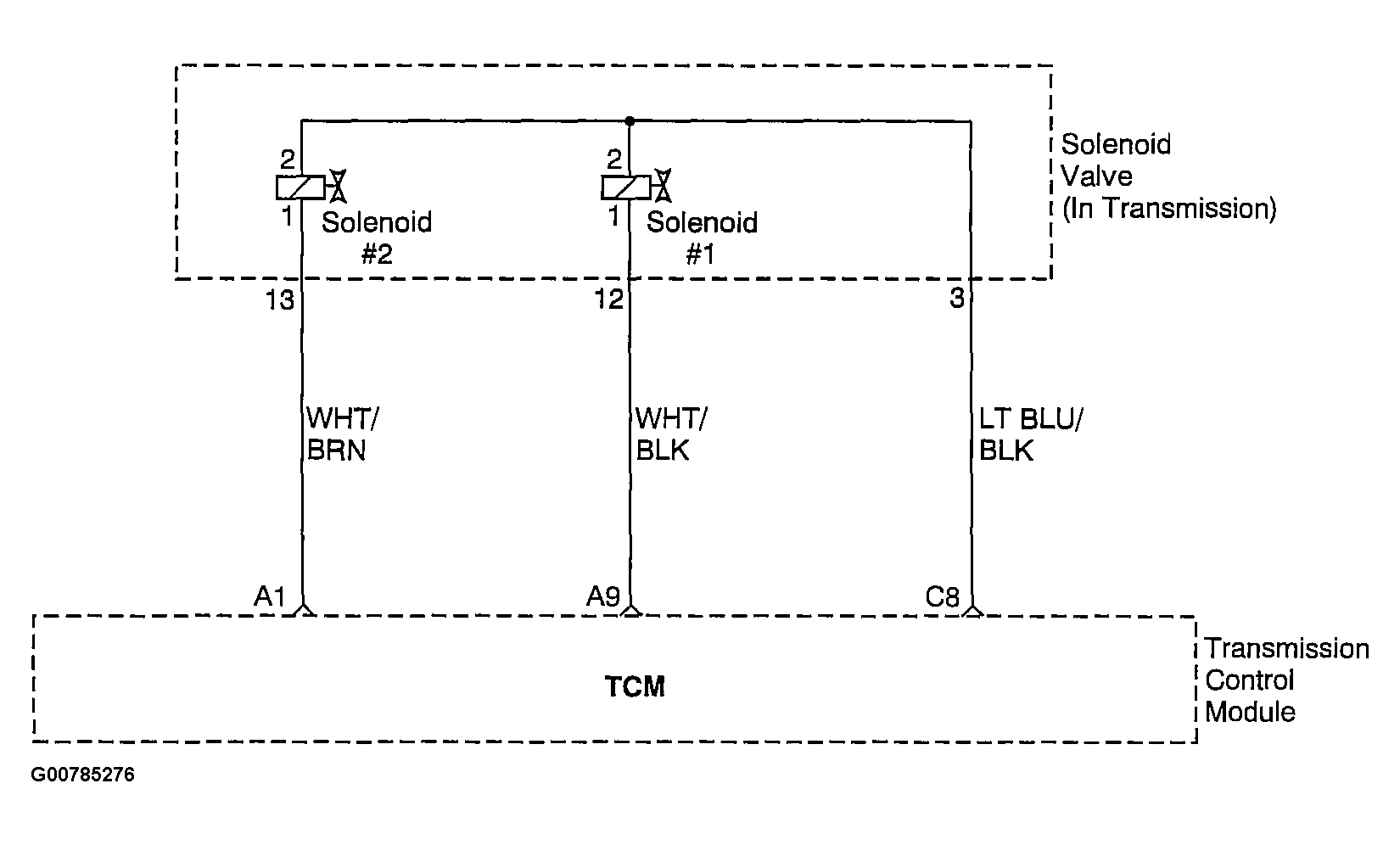

Fig 1: DTC P1852 Solenoid 1 Output Open Diagnostic Wiring Diagram
G00785276Courtesy of SUZUKI OF AMERICA CORP.
