DTC P1671: CAN Transmit Message Failure: Notes

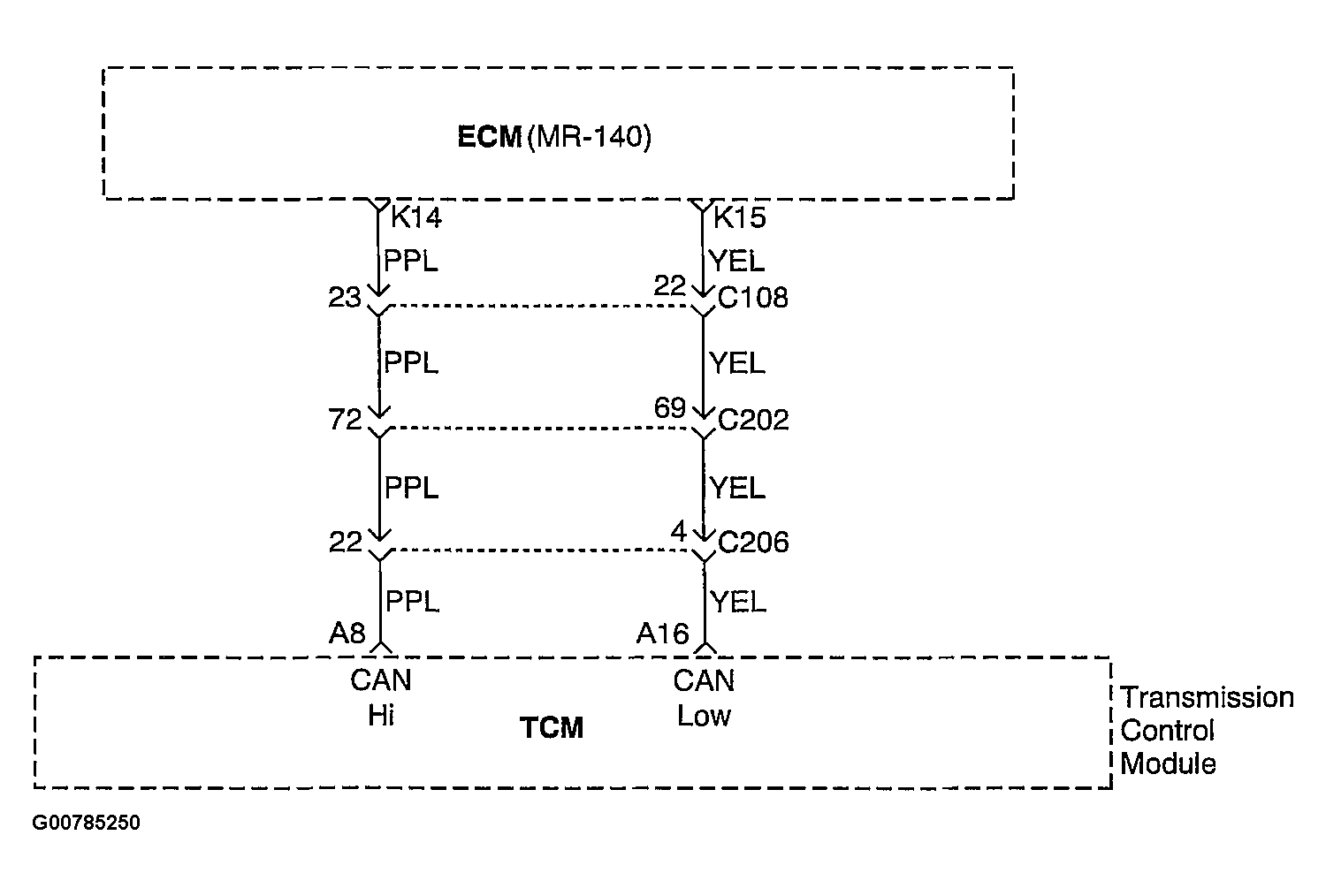

Fig 1: DTC P1671 CAN Transmit Message Failure - Diagnostic Wiring Diagram
G00785250Courtesy of SUZUKI OF AMERICA CORP.
