DTC P0727: Engine Speed Input Circuit No Signal: Notes

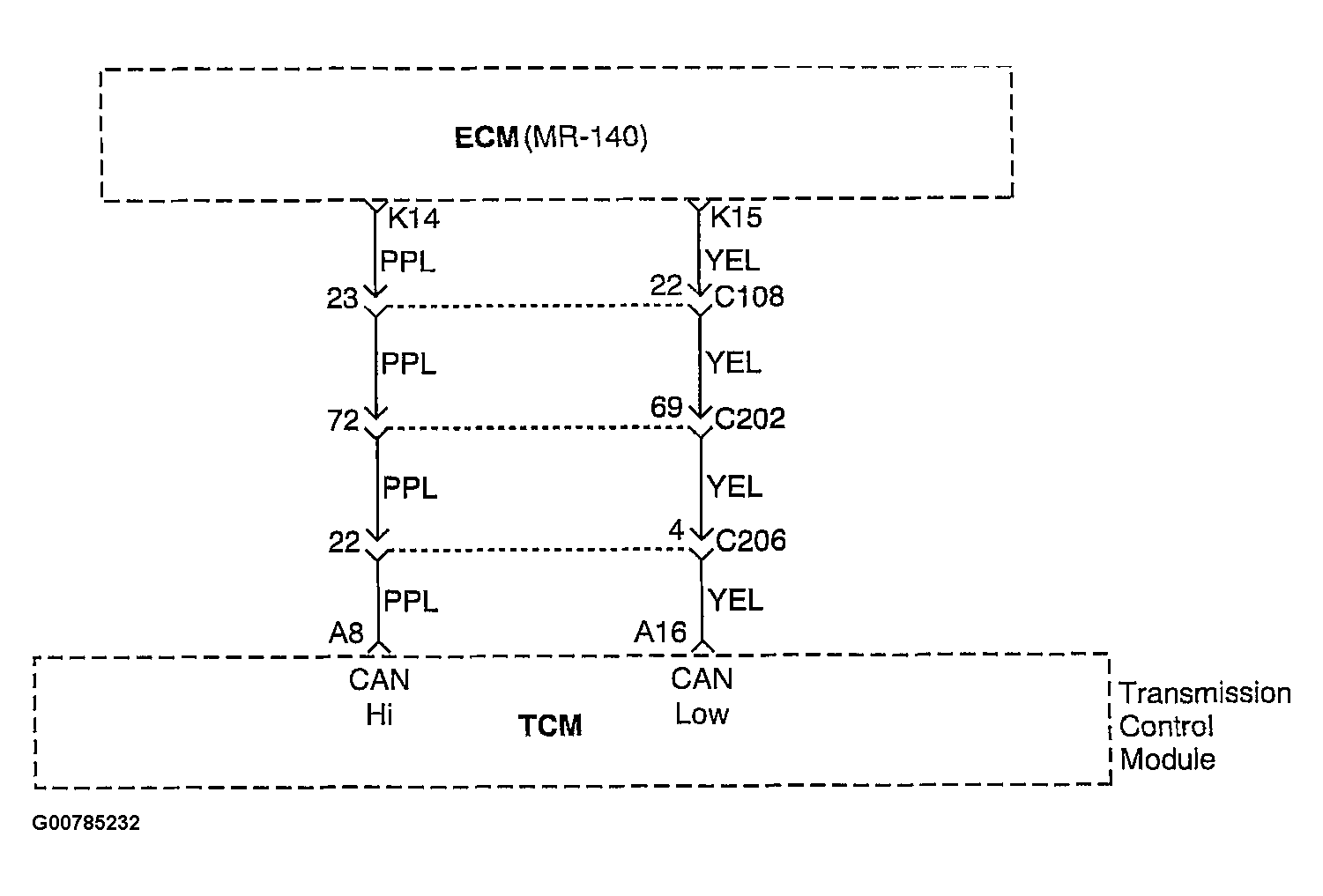

Fig 1: DTC P0727 Engine Speed Input Circuit No Signal - Diagnostic Wiring Diagram
G00785232Courtesy of SUZUKI OF AMERICA CORP.
