DTC P0717: Input Speed Sensor (ISS) Circuit No Signal: Notes

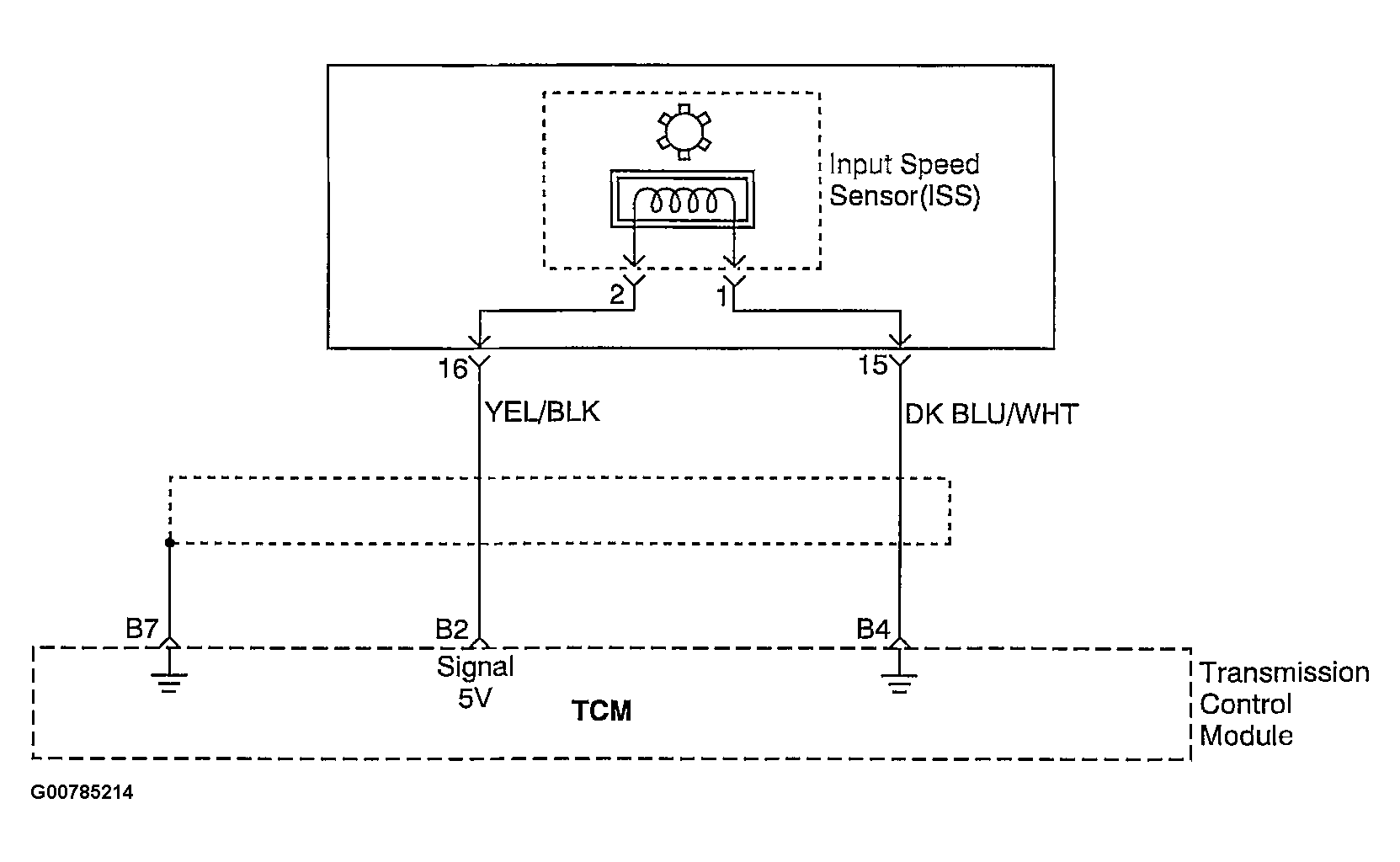

Fig 1: DTC P0717 Input Speed Sensor (ISS) Circuit No Signal - Diagnostic Wiring Diagram
G00785214Courtesy of SUZUKI OF AMERICA CORP.
