DTC P0715: Input Speed Sensor (ISS) Circuit Malfunction: Notes

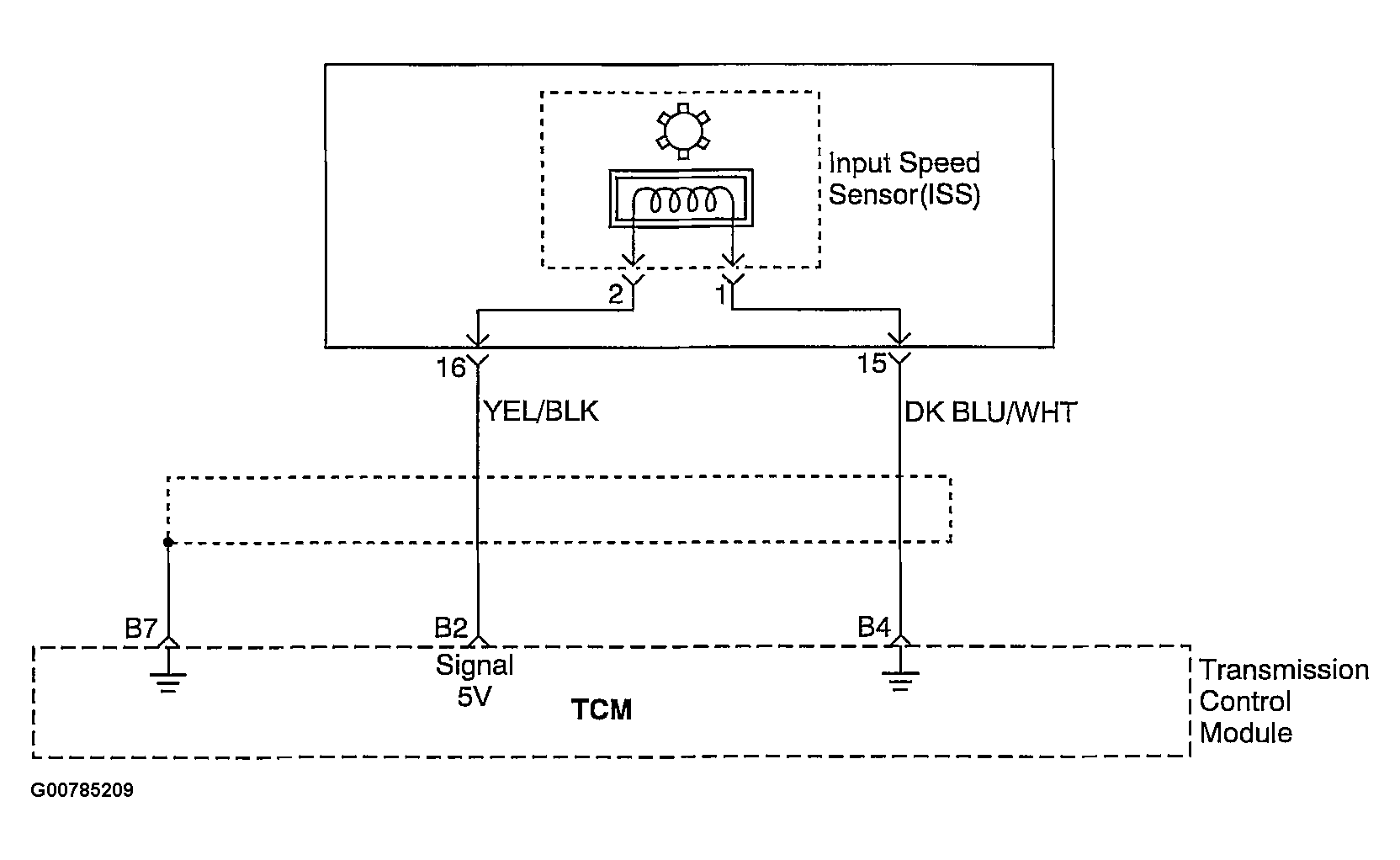

Fig 1: DTC P0715 Input Speed Sensor (ISS) Circuit Malfunction - Diagnostic Wiring Diagram
G00785209Courtesy of SUZUKI OF AMERICA CORP.
