DTC C0245: Wheel Speed Sensor Frequency Error: Notes

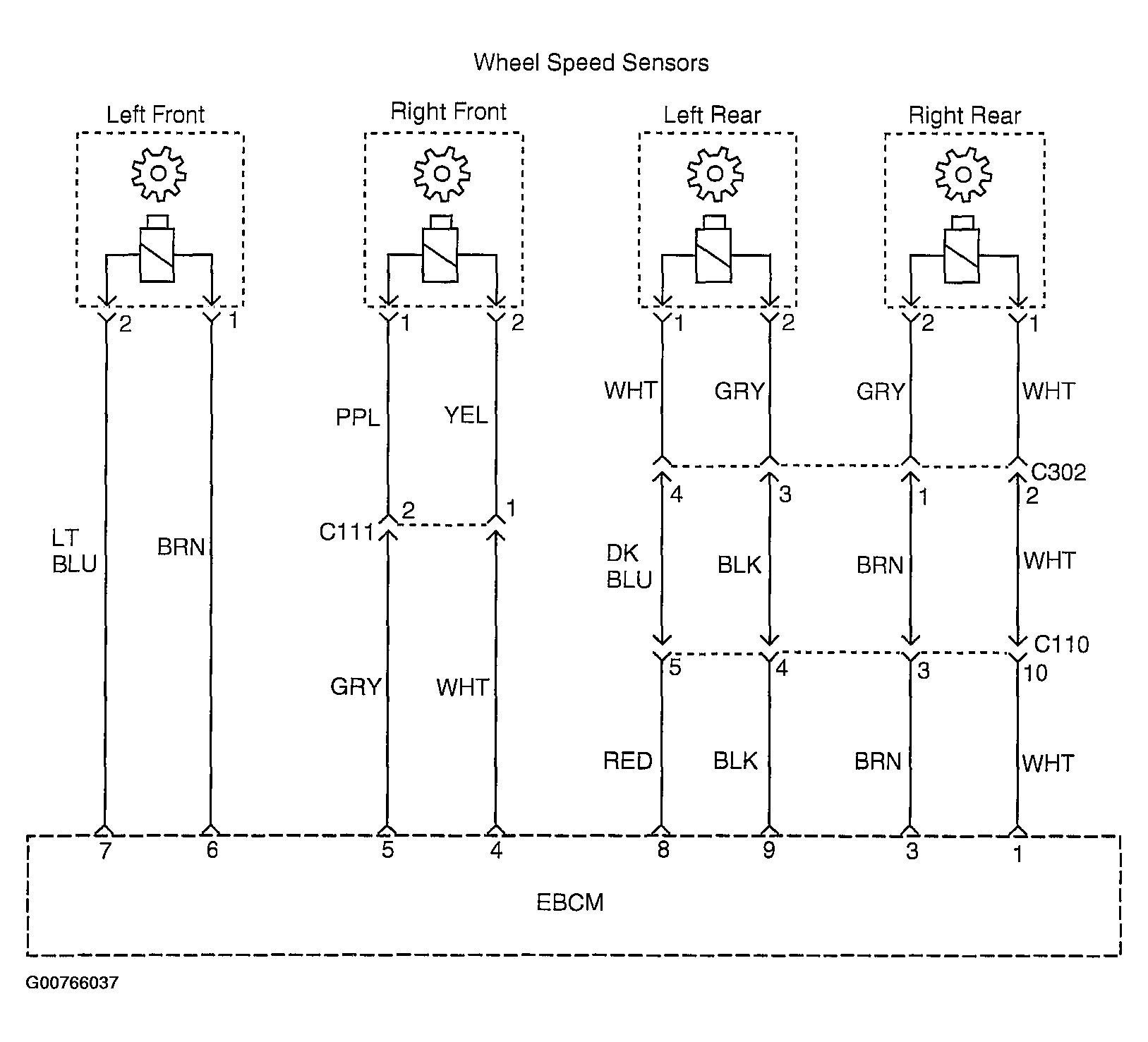

Fig 1: DTC C0245 Wheel Speed Sensor Frequency Error - Diagnostic Wiring Diagram
G00766037Courtesy of SUZUKI OF AMERICA CORP.
