Housing Case Disassembly and Assembly: Assembly

Install the speedometer-driven gear bolt and the speedometer-driven gear into the transaxle housing.
Tighten

Tighten the speedometer-driven gear bolt to 5 N.m (44 lb-in).

Fig 1: Installing The Speedometer-Driven Gear
Courtesy of SUZUKI OF AMERICA CORP.
Install the clutch-release bearing guide and the clutch-release bearing. Refer to CONCENTRIC SLAVE CYLINDER REMOVAL AND INSTALL .
Install the backup lamp switch into the transaxle housing.
Tighten

Tighten the backup lamp switch to 20 N.m (15 lb-ft).

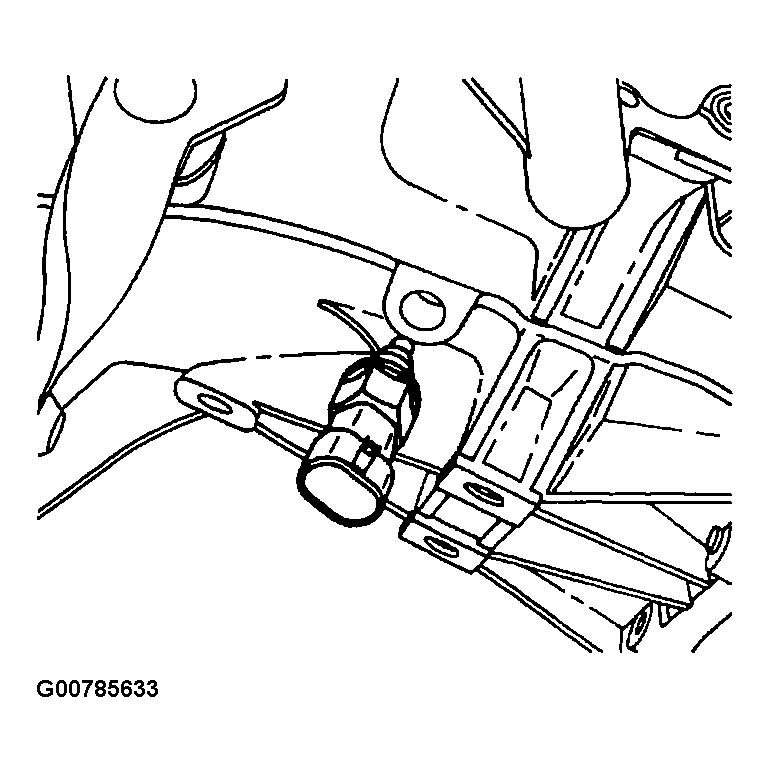

Fig 2: Installing The Backup Lamp Switch
Courtesy of SUZUKI OF AMERICA CORP.
Install the differential into the transaxle housing. Refer to Differential Disassembly and Assembly .
Install the bearing plate, with the shafts attached.

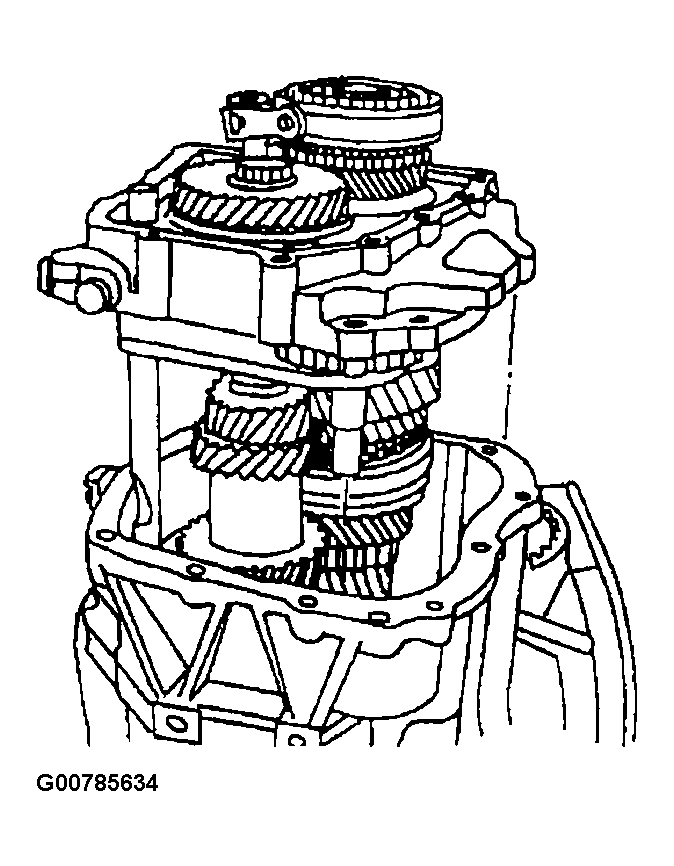

Fig 3: Installing The Bearing Plate, With The Shafts Attached
Courtesy of SUZUKI OF AMERICA CORP.
Install the bearing plate bolts.
Tighten

Tighten the bearing plate bolts to 22 N.m (16 lb-ft).
Install the transaxle cover and the transaxle cover bolts.

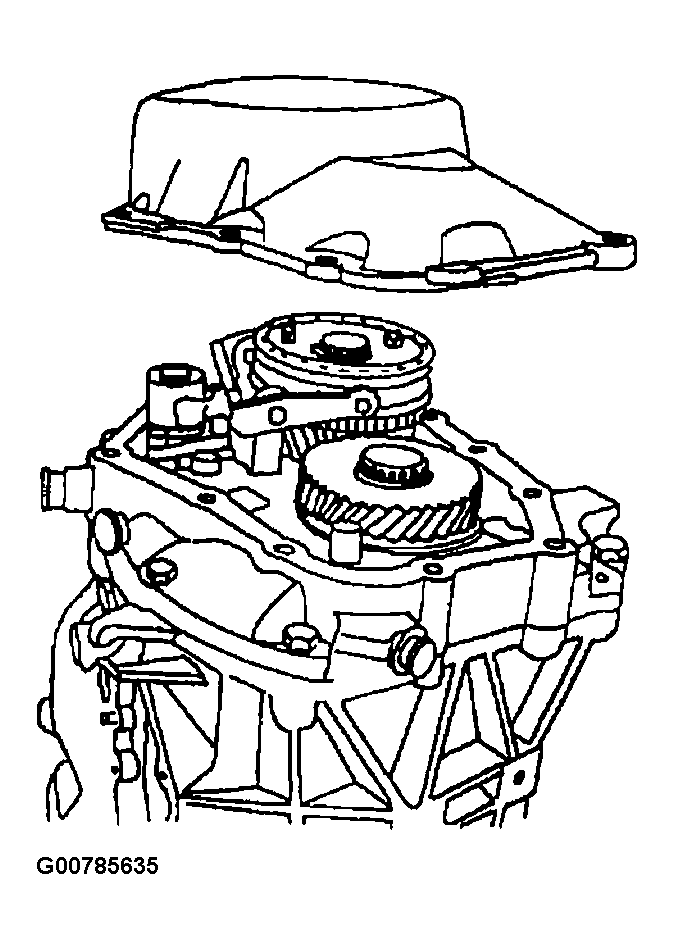

Fig 4: Installing The Transaxle Cover
Courtesy of SUZUKI OF AMERICA CORP.

Tighten

Tighten the transaxle cover bolts to 18 N.m (13 lb-ft).
Install the gearshift lever cover and the gearshift lever cover bolts.
Tighten

Tighten the gearshift lever cover bolts to 22 N.m (16 lb-ft).

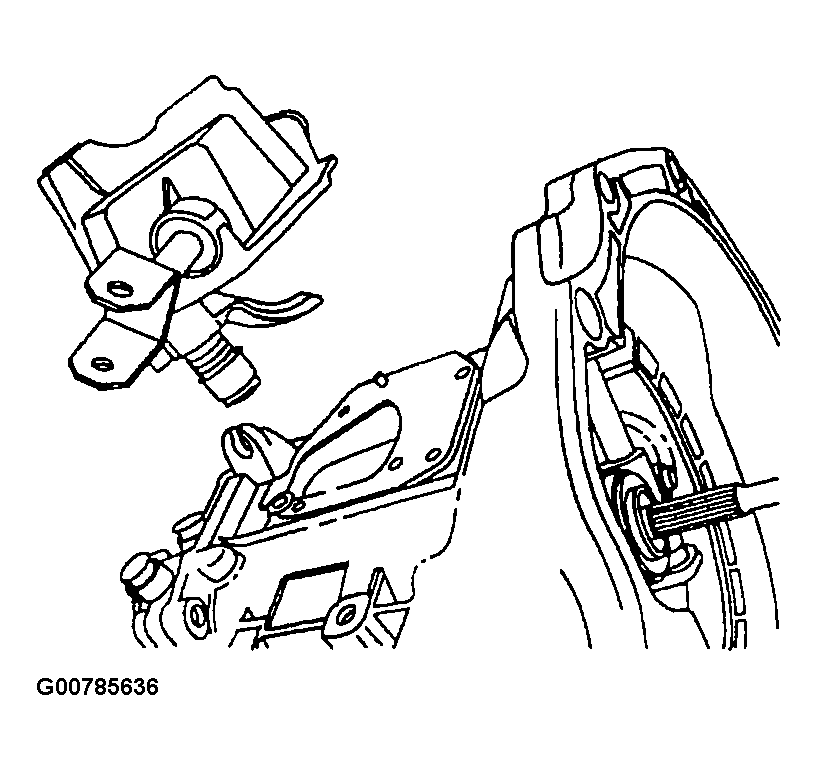

Fig 5: Installing The Gearshift Lever Cover
Courtesy of SUZUKI OF AMERICA CORP.
Install the transaxle into the vehicle. Refer to TRANSAXLE ASSEMBLY REMOVAL AND INSTALLATION .
