Transaxle Assembly Removal and Installation: Removal

Install the engine support fixture J-28467-B.
Remove the battery and battery tray.
Remove the shift linkage assembly. Refer to SHIFT LINKAGE ASSEMBLY .

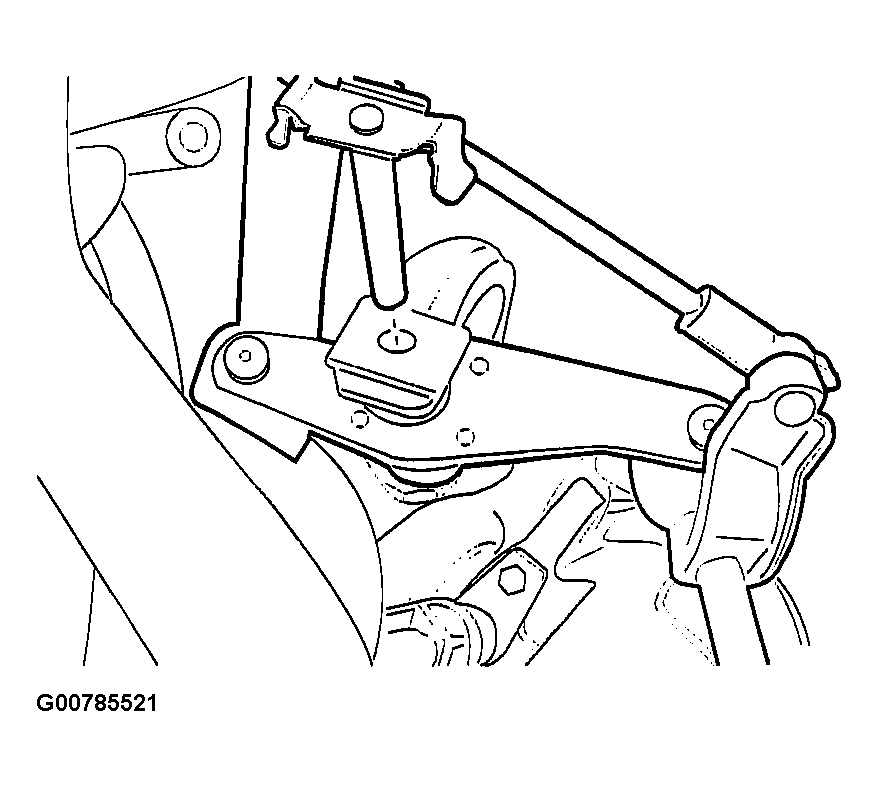

Fig 1: Removing The Shift Linkage Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove the drive axle shaft. Refer to AXLE SHAFTS .
Disconnect the backup lamp switch electrical connector.
Disconnect the speedometer speed sensor electrical connector.

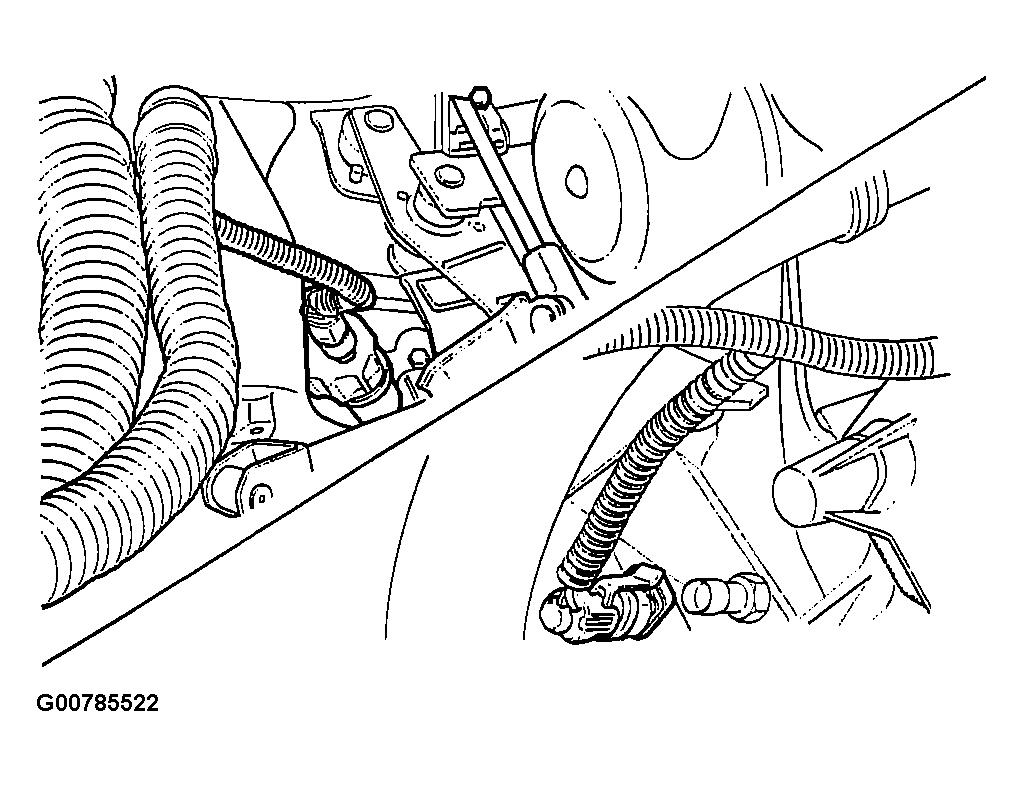

Fig 2: Disconnecting The Speedometer Speed Sensor
Courtesy of SUZUKI OF AMERICA CORP.
Remove the pin and the clutch release cylinder pipe.

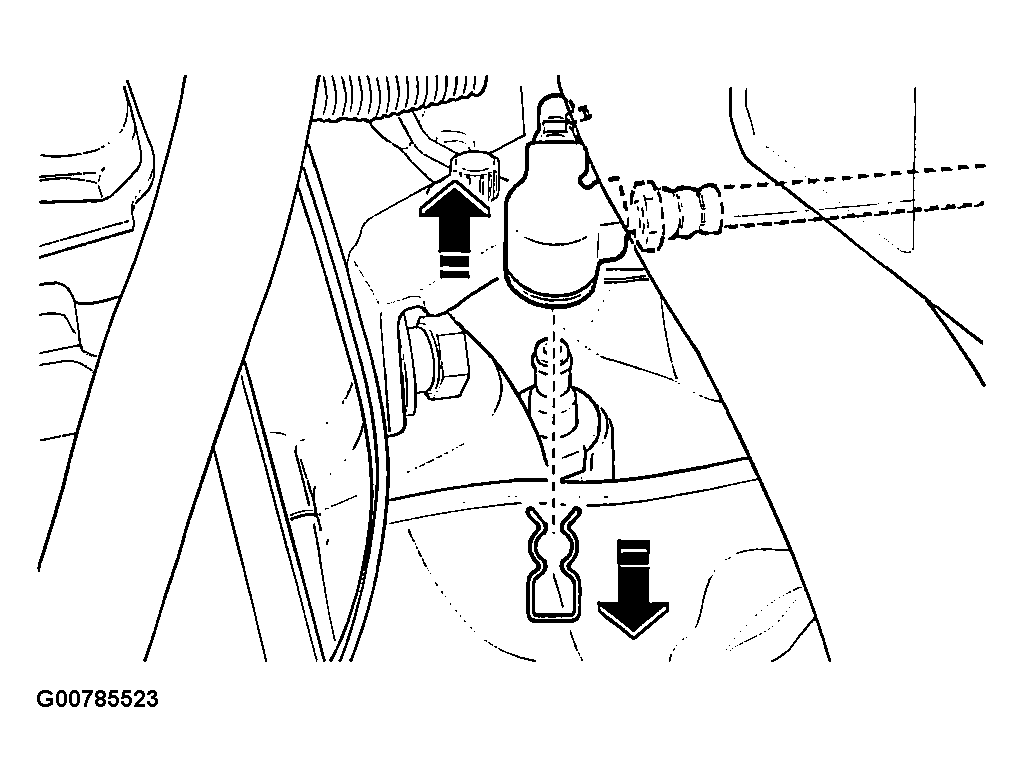

Fig 3: Removing The Clutch Release Cylinder Pipe
Courtesy of SUZUKI OF AMERICA CORP.
Remove the damping block connection nut and bolt.
Remove the three rear mounting bracket bolts.
Remove the rear mounting bracket from the transaxle.

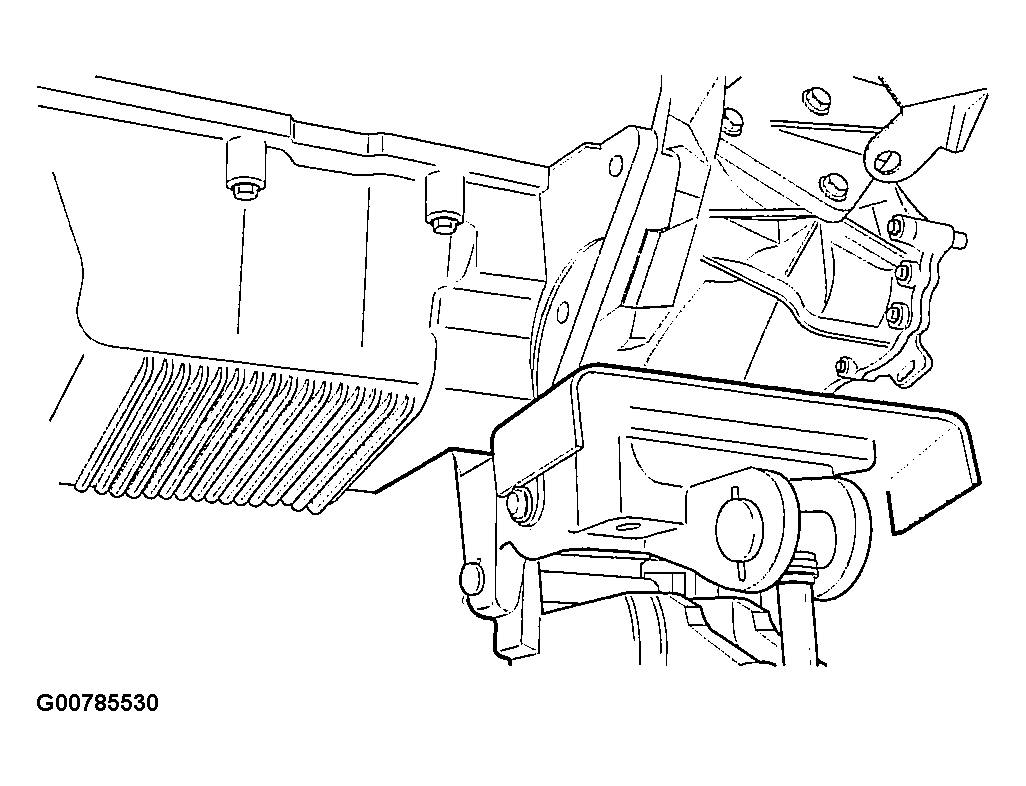

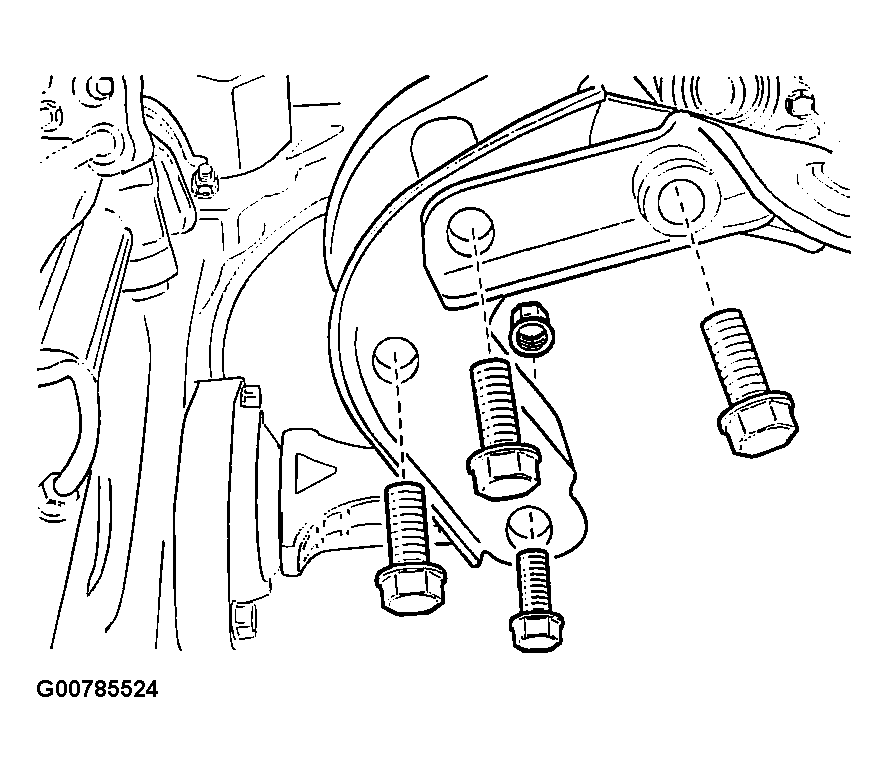

Fig 4: Removing The Rear Mounting Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Remove the two rear damping block retaining bolts.
Remove the rear damping block from the front cross member.

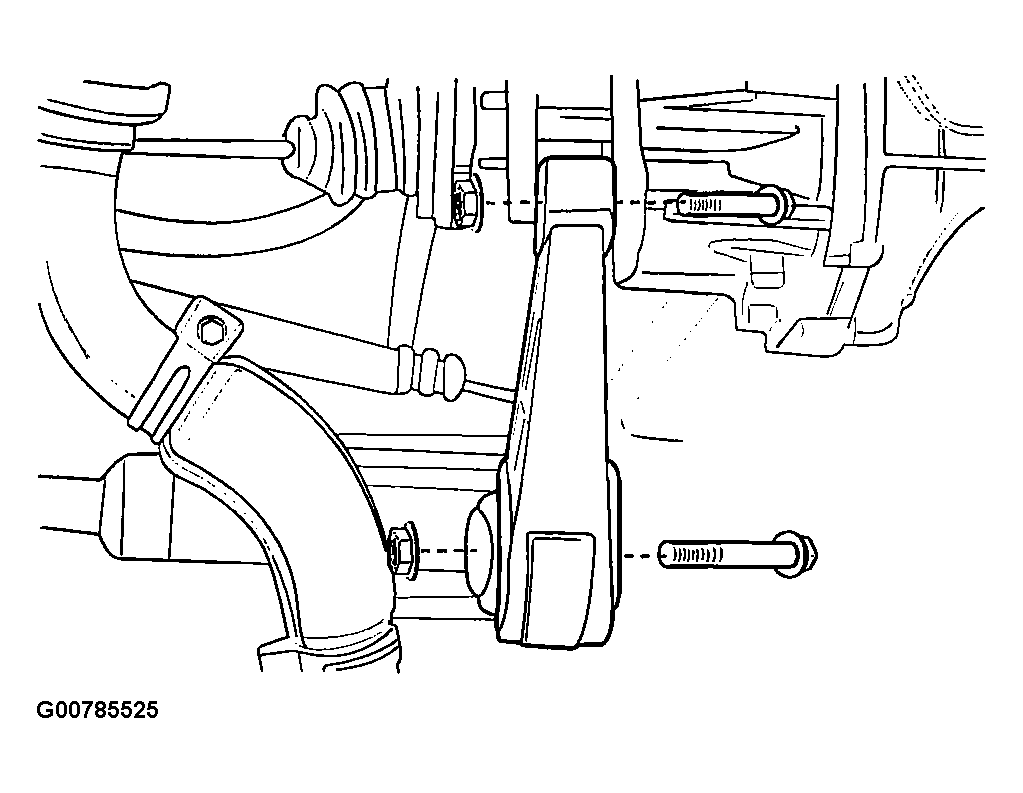

Fig 5: Removing The Rear Damping Block
Courtesy of SUZUKI OF AMERICA CORP.
Remove the two cage retaining bolts.
Remove the three transaxle upper mounting bracket bolts.
Remove the upper mounting bracket and cage.

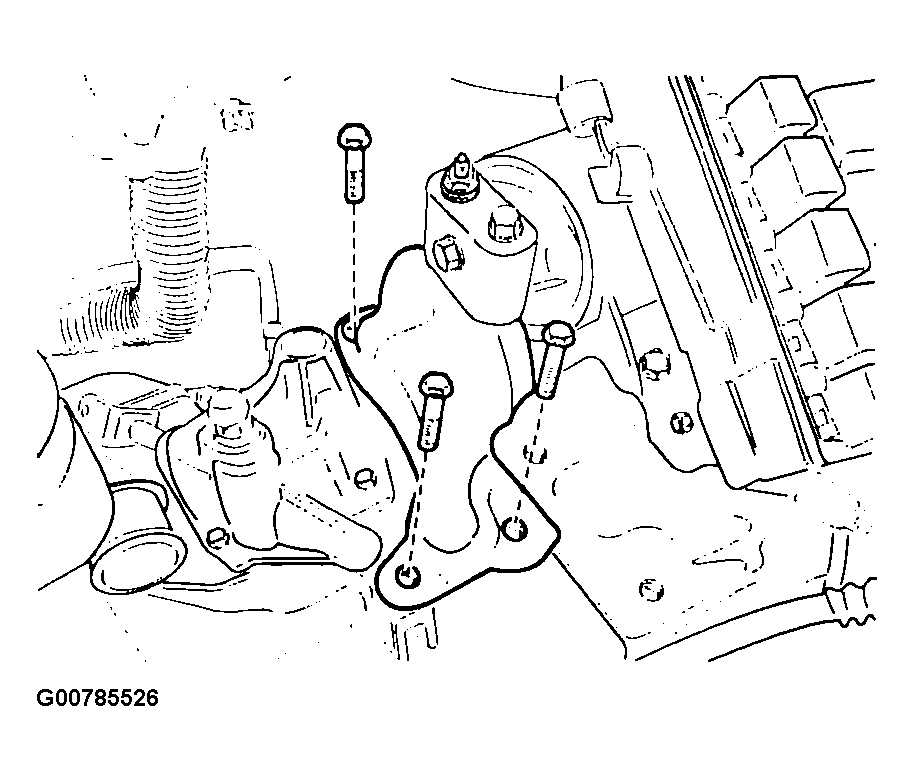

Fig 6: Removing The Upper Mounting Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Remove the three transaxle upper retaining bolts.

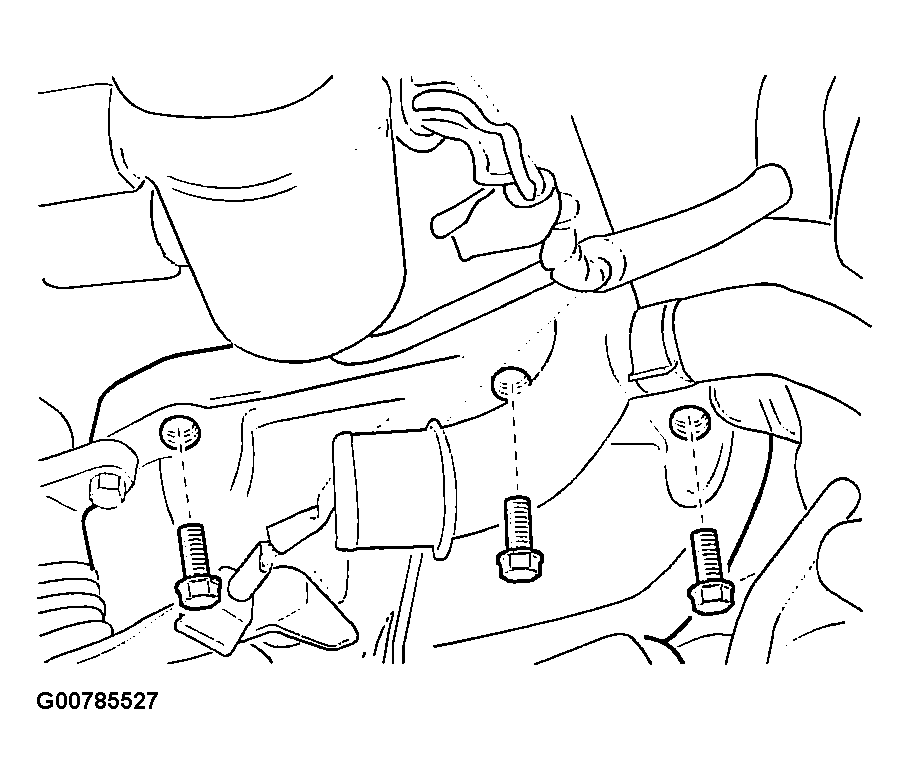

Fig 7: Removing The Transaxle Upper Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Support the transaxle with a transaxle support jack.

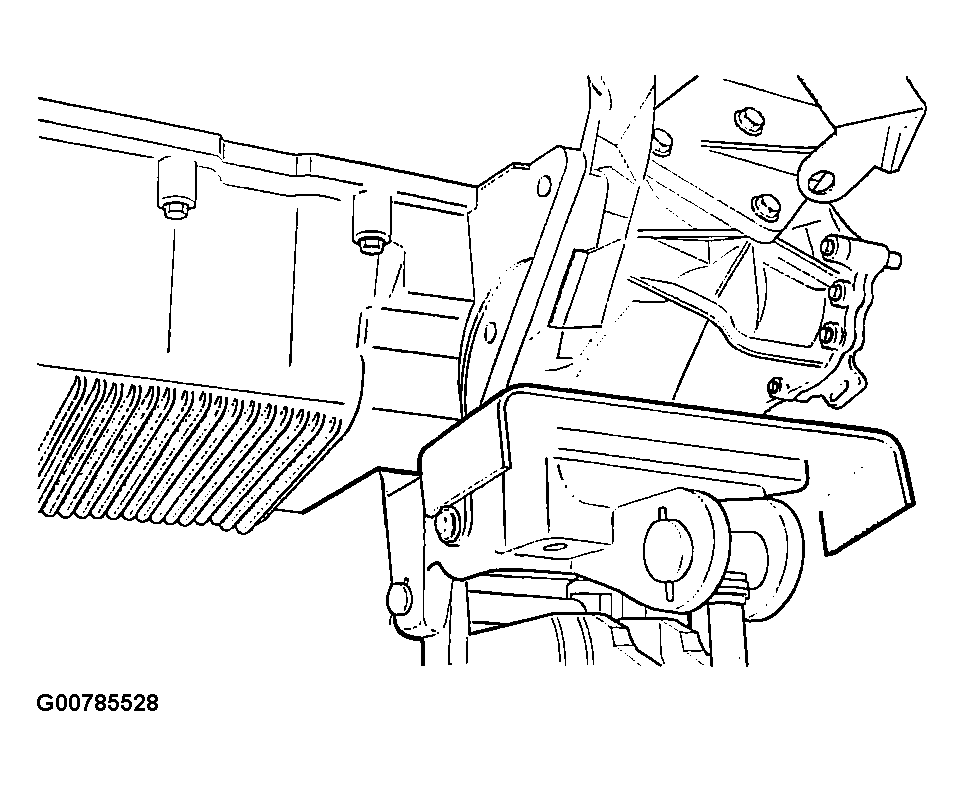

Fig 8: Supporting The Transaxle With Support Jack
Courtesy of SUZUKI OF AMERICA CORP.
Remove the seven transaxle lower retaining bolts.

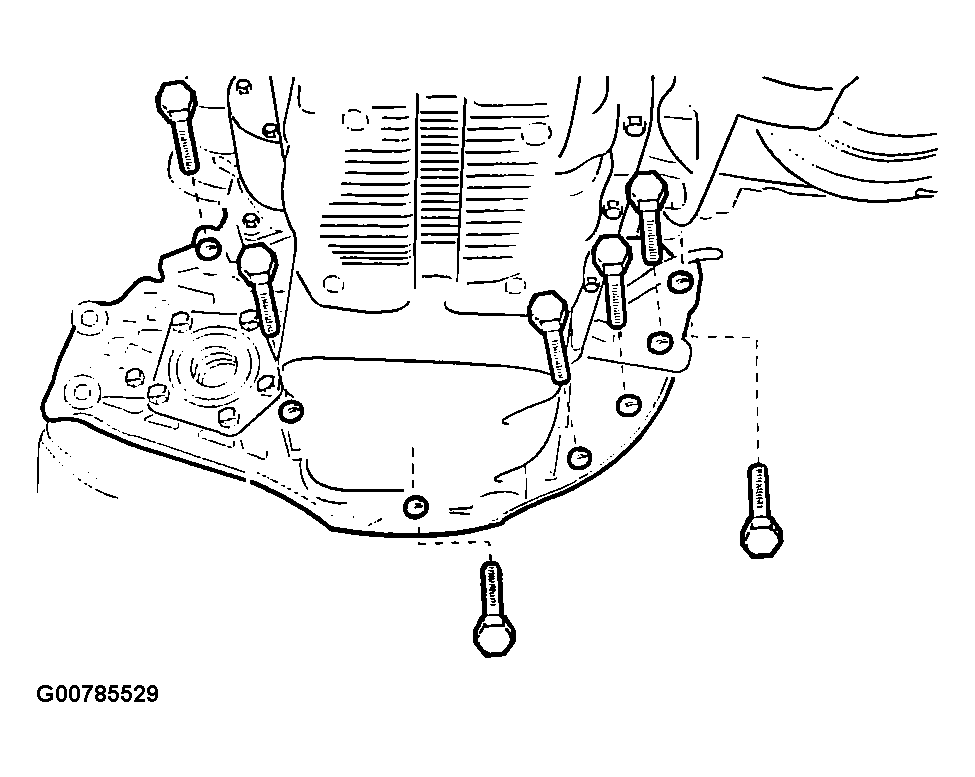

Fig 9: Removing The Lower Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the transaxle.
NOTE: Rest the transaxle only in an upright position.
Slide the transaxle sideways away from the engine block.
Lower the transaxle.

Fig 10: Lowering The Transaxle
Courtesy of SUZUKI OF AMERICA CORP.
