Transaxle Assembly Removal and Installation: Installation

Support the transaxle with a transaxle support jack.
Install the transaxle by inserting the transaxle input shaft into the clutch disc and sliding the transaxle sideways into the engine block.

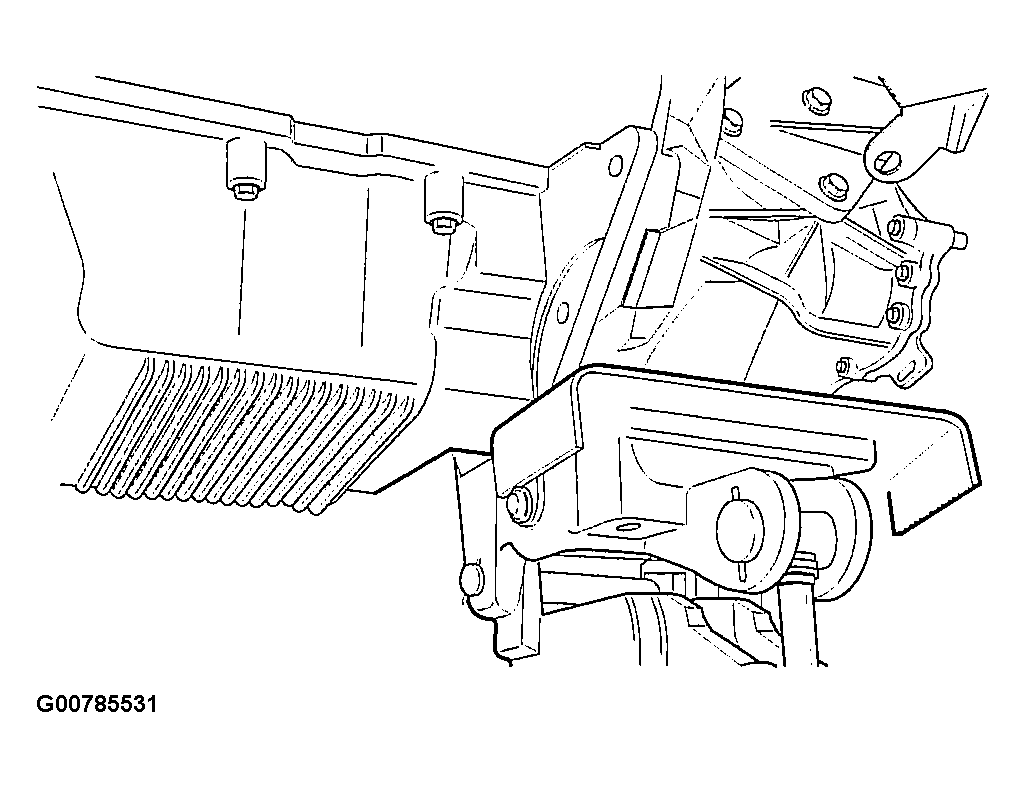

Fig 1: Installing The Transaxle
Courtesy of SUZUKI OF AMERICA CORP.
Install the seven transaxle lower retaining bolts.
Tighten

Tighten the transaxle lower retaining bolts (a) to 73 N.m (54 lb-ft).

Tighten the transaxle lower retaining bolt (b) to 31 N.m (23 lb-ft).

Tighten the transaxle lower retaining bolts (c) to 21 N.m (15 lb-ft).

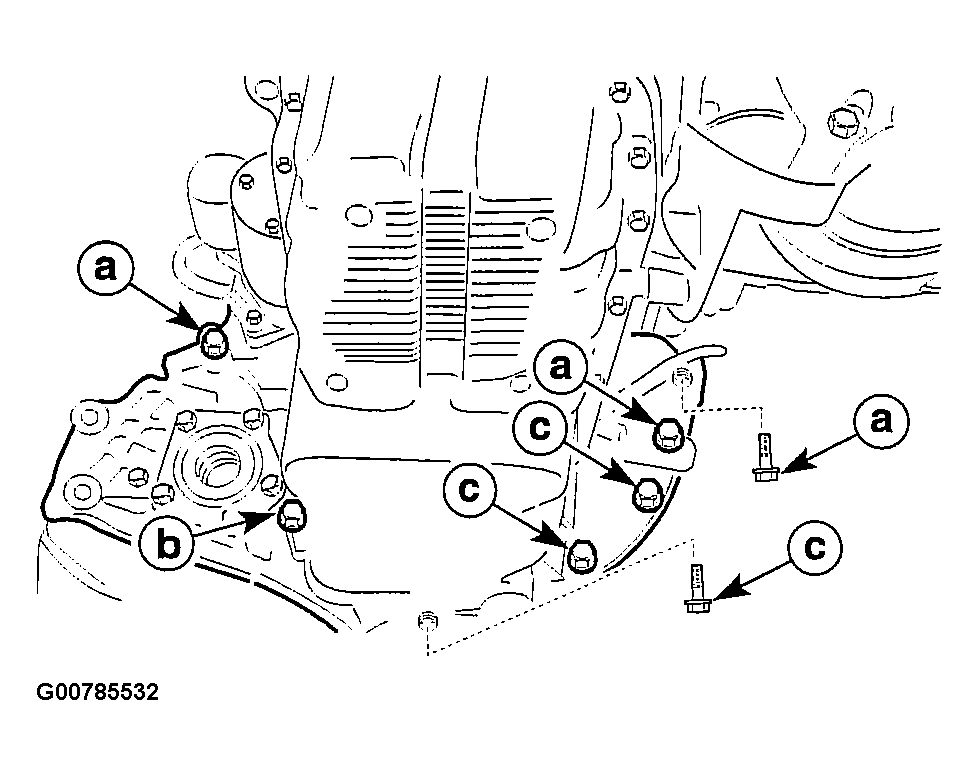

Fig 2: Installing The Transaxle Lower Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the three transaxle upper retaining bolts
Tighten

Tighten the transaxle upper retaining bolts to 73 N.m (54 lb-ft).

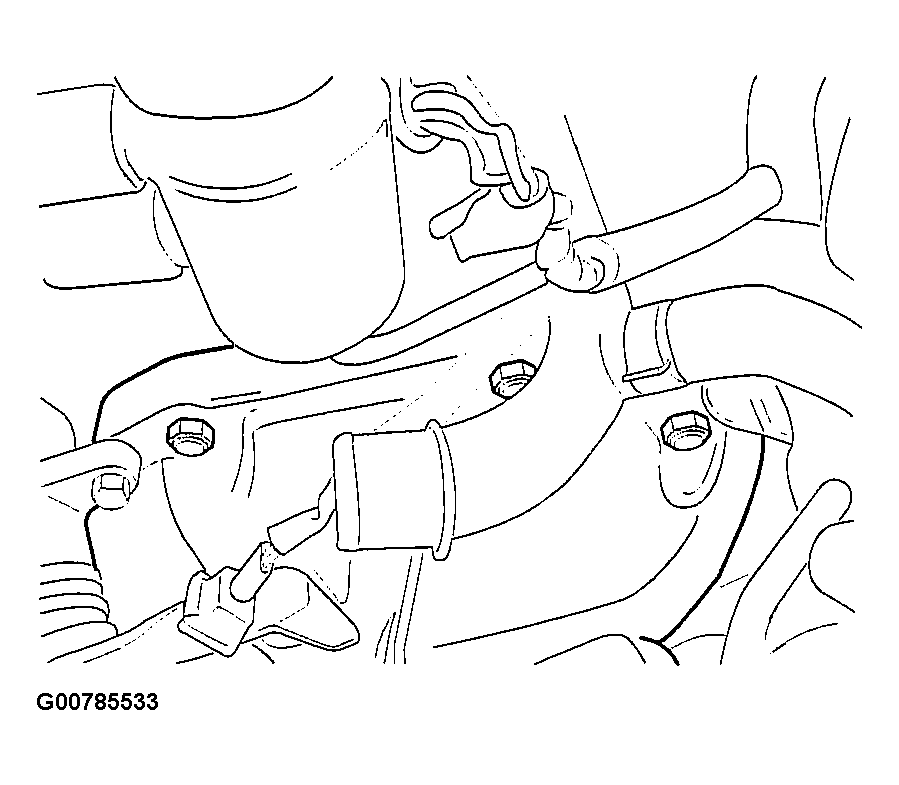

Fig 3: Installing The Transaxle Upper Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the cage retaining bolt and cage.
Install the three transaxle upper mounting bracket bolts and bracket.
Tighten

Tighten the transaxle upper mounting bracket bolts to 48 N.m (35 lb-ft).

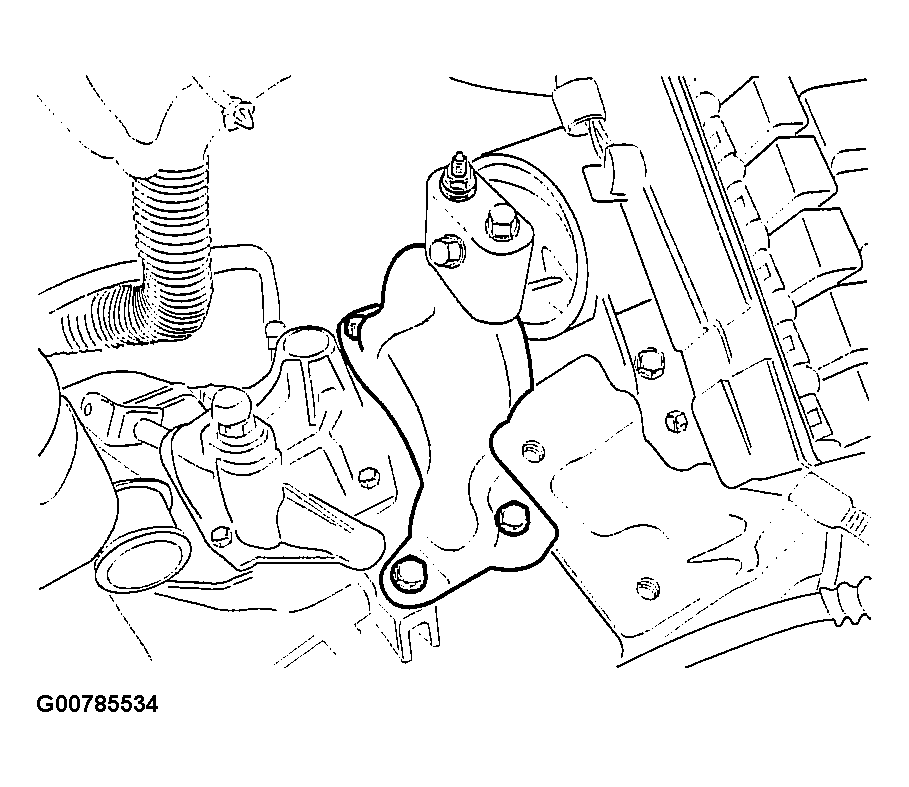

Fig 4: Installing The Transaxle Upper Mounting Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Install the two rear damping block retaining bolts.
Tighten

Tighten the rear damping block retaining bolts to 68 N.m (50 lb-ft).
Install the rear damping block from the front cross member.

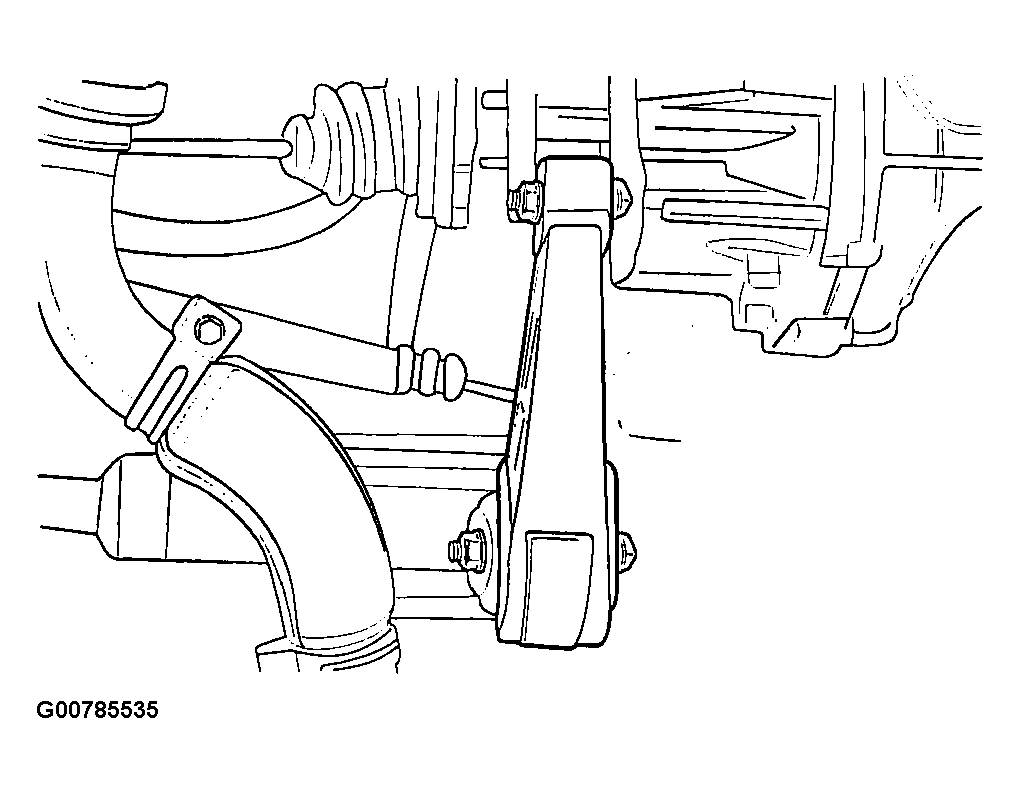

Fig 5: Installing The Rear Damping Block
Courtesy of SUZUKI OF AMERICA CORP.
Install the three rear mounting bracket bolts and the bracket.
Tighten

Tighten the rear mounting bracket bolts to 90 N.m (66 lb-ft).
Install the damping block connection nut and bolt.
Tighten

Tighten the damping block connection nut and bolt to 68 N.m (50 lb-ft).

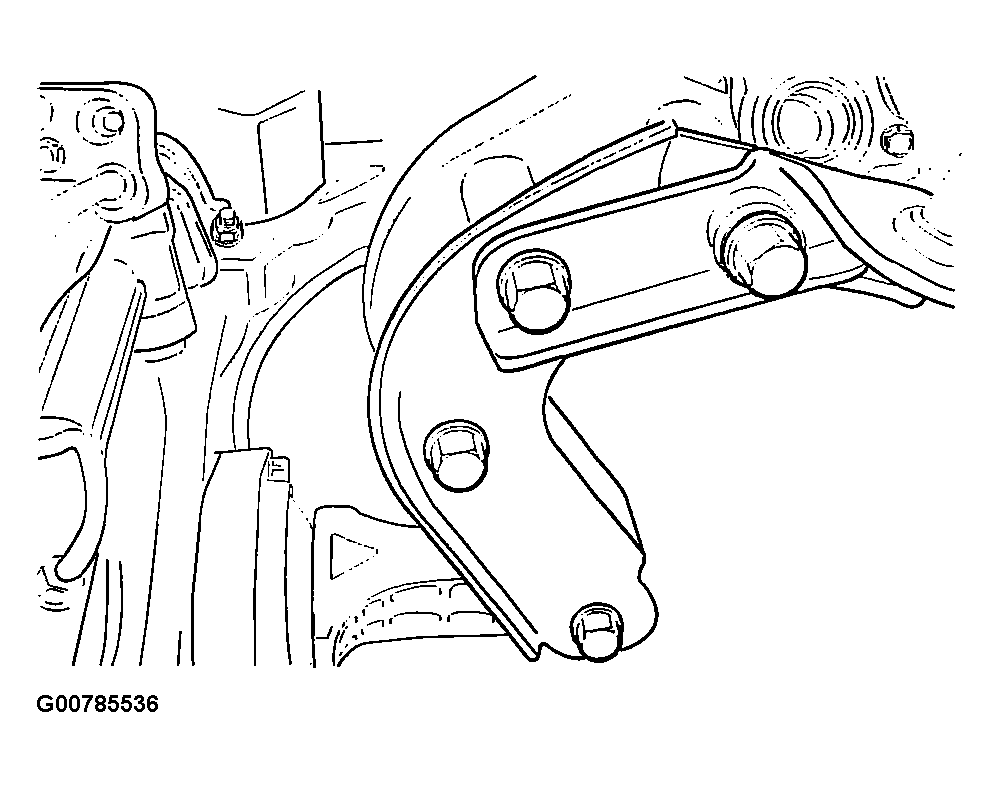

Fig 6: Installing The Damping Block
Courtesy of SUZUKI OF AMERICA CORP.
Connect the clutch release cylinder pipe.

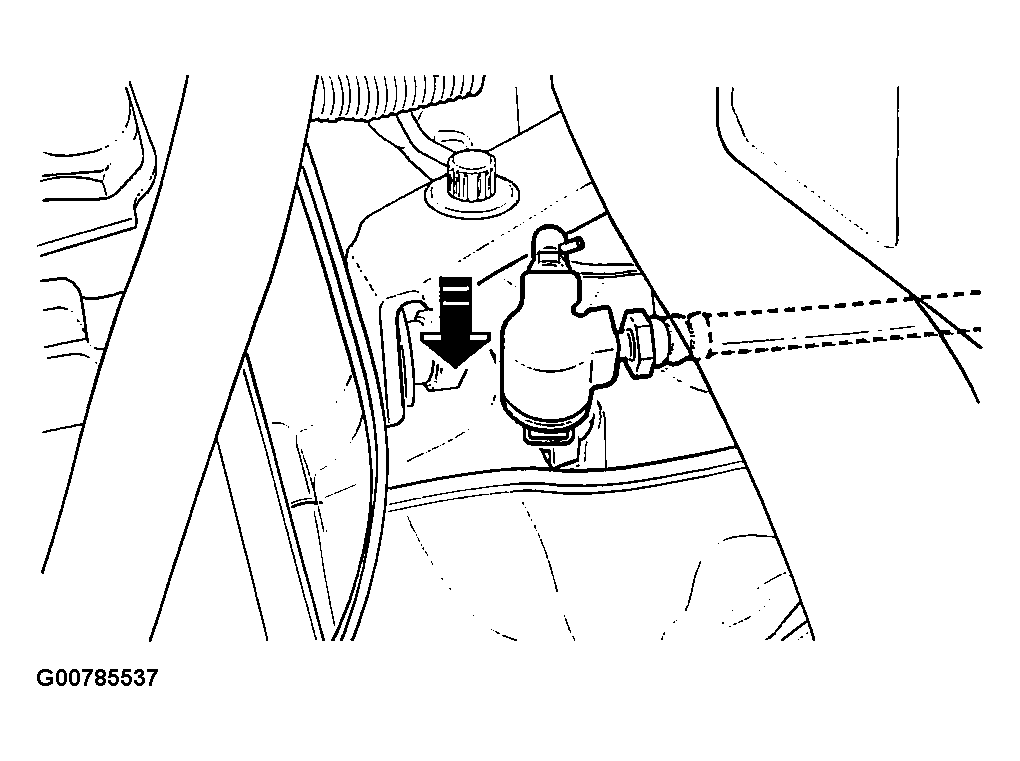

Fig 7: Connecting The Clutch Release Cylinder Pipe
Courtesy of SUZUKI OF AMERICA CORP.
Connect the speedometer speed sensor electrical connector.
Connect the backup lamp switch electrical connector.

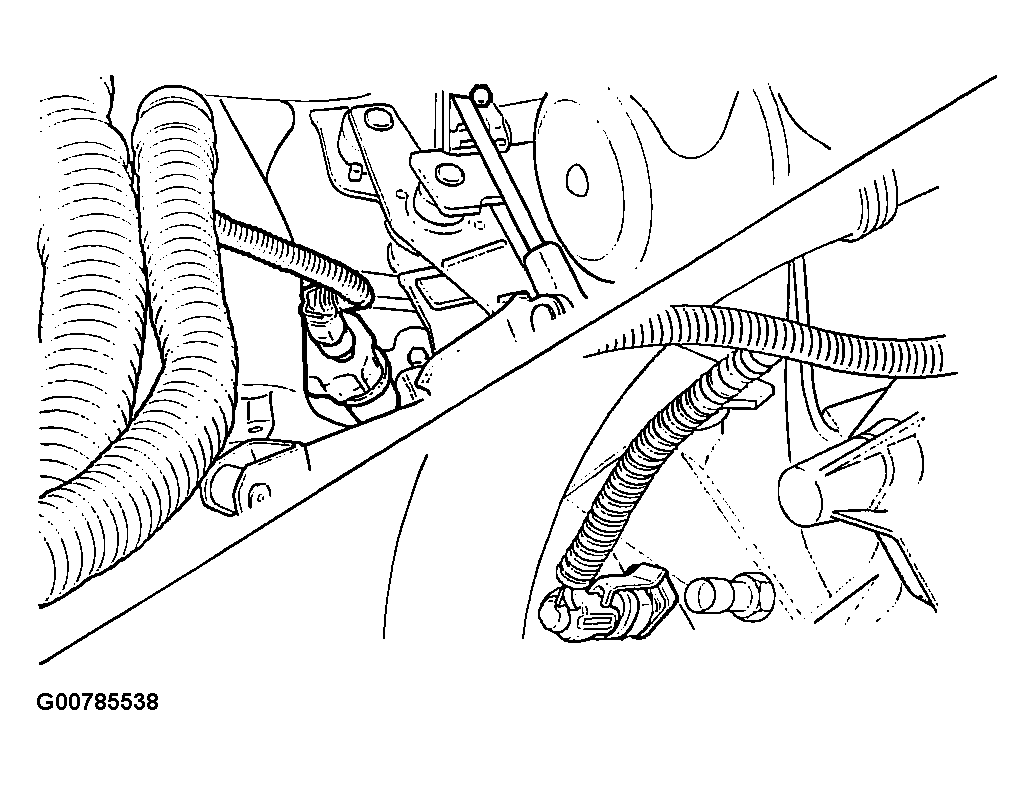

Fig 8: Connecting The Backup Lamp Switch
Courtesy of SUZUKI OF AMERICA CORP.
Remove the engine support fixture J-28467-B.
Install the drive axle shaft. Refer to AXLE SHAFTS
Install the shift linkage assembly. Refer to SHIFT LINKAGE ASSEMBLY .

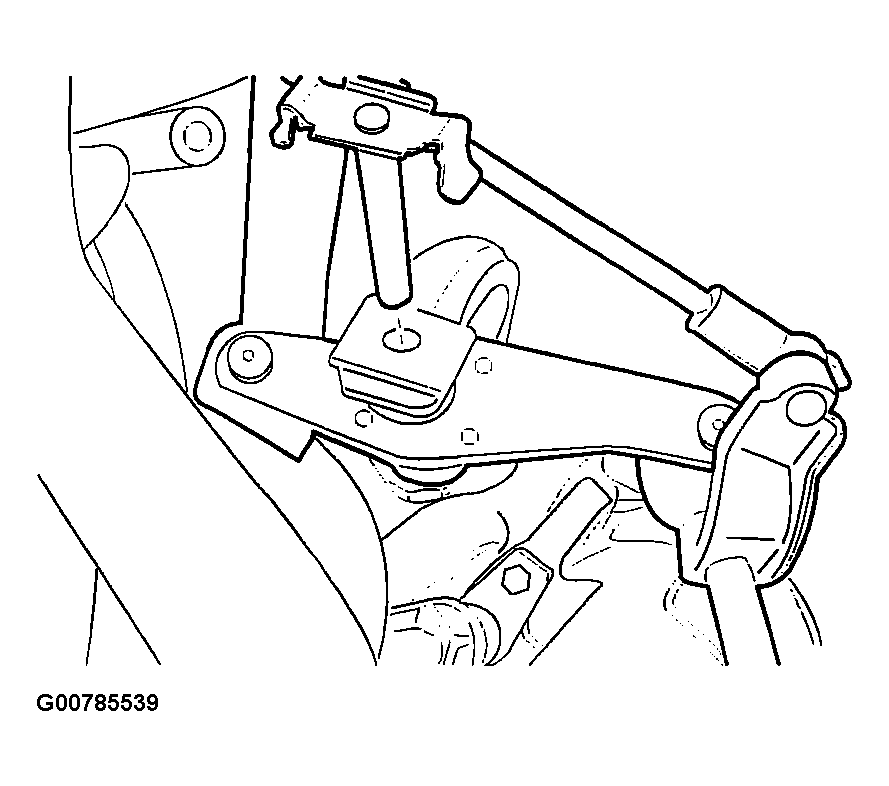

Fig 9: Installing The Shift Linkage Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Install the battery and battery tray.
Inspect the fluid level. Refer to SERVICING-M/T .
