Concentric Slave Cylinder Removal and Installation: Installation

Install the concentric slave cylinder and the pipe.
After installing the pipe screw provisionally, tighten the concentric slave cylinder retaining bolts.
Tighten

Tighten the concentric slave cylinder retaining bolts to 7 N.m (62 lb-in).
Tighten the pipe screw.
Tighten

Tighten the pipe screw to 15 N.m (11 lb-ft).

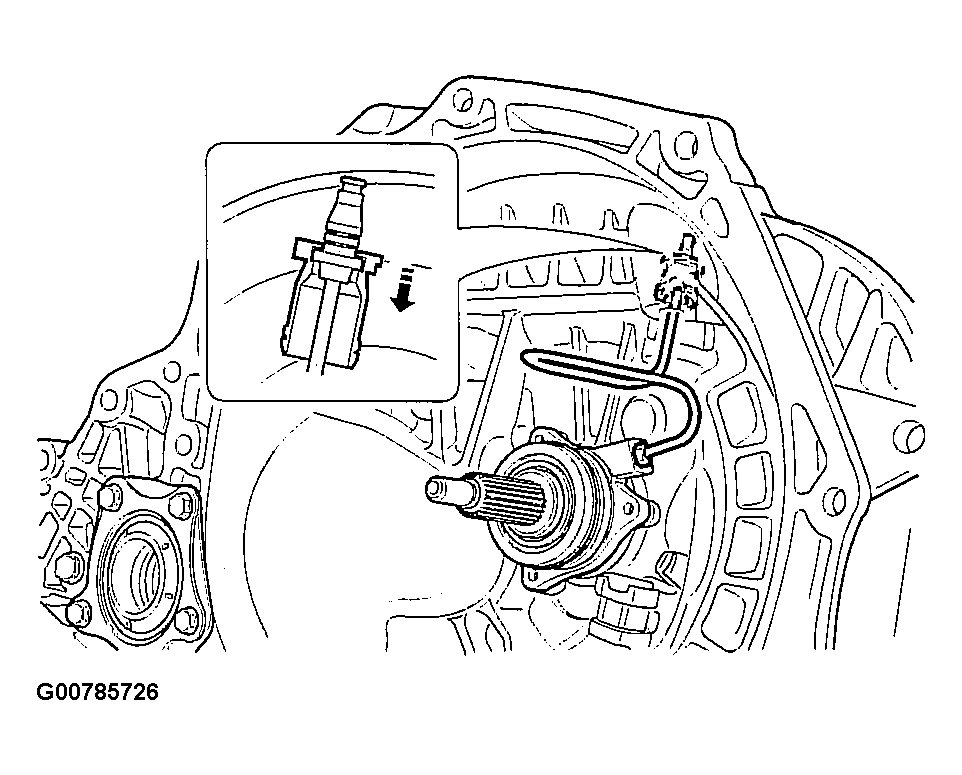

Fig 1: Tightening The Pipe Screw
Courtesy of SUZUKI OF AMERICA CORP.
Install the bushing onto the transaxle housing.
Connect the pipe with bushing.

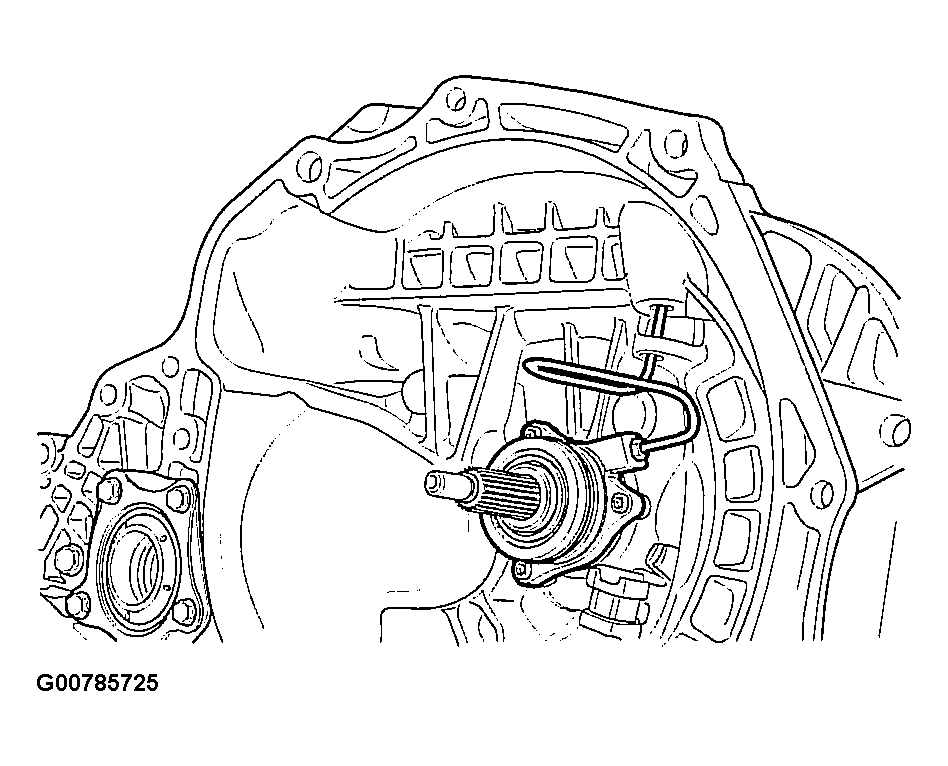

Fig 2: Connecting The Pipe With Bushing
Courtesy of SUZUKI OF AMERICA CORP.
Install the transaxle into the vehicle. Refer to Transaxle Assembly Removal and Installation .
