Test Description

The number(s) below refer to step(s) on the diagnostic table.

(1) This test checks for any DTCs that may cause the ABS indicator lamp to be inoperative.

(2) This test verifies an inoperative lamp condition.

(3) This test checks for voltage on the lamp circuit.

(4) This begins a series of tests of the circuit from the indicator lamp to the EBCM and ground.

(19) This begins a series of tests of the voltage supply circuits that power the indicator lamp.

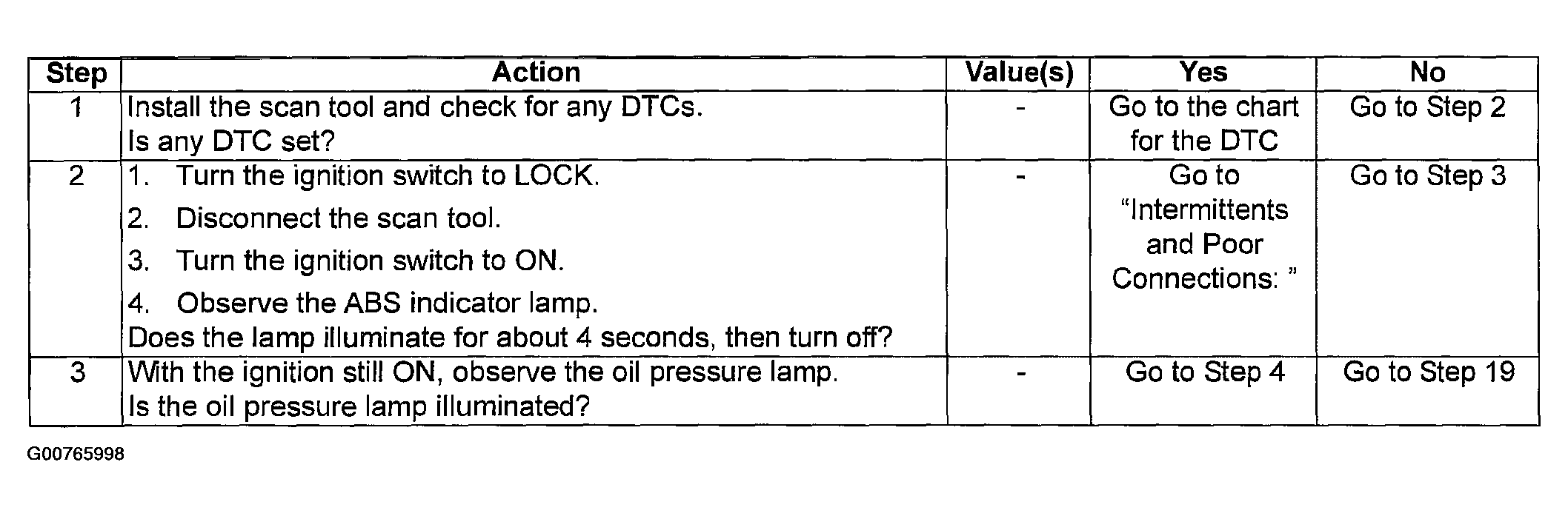

Fig 1: ABS Indicator Lamp Inoperative Chart (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

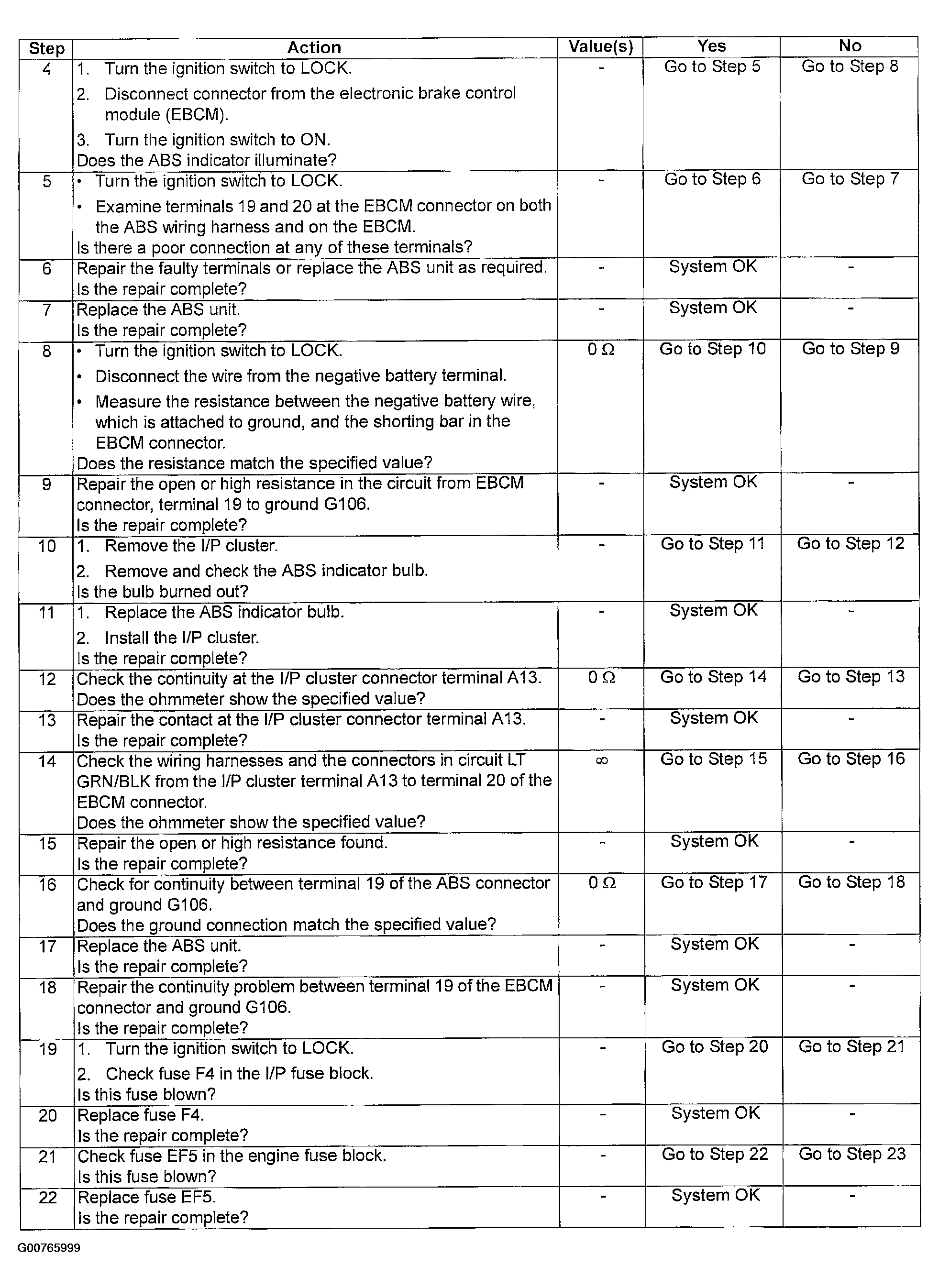

Fig 2: ABS Indicator Lamp Inoperative Chart (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

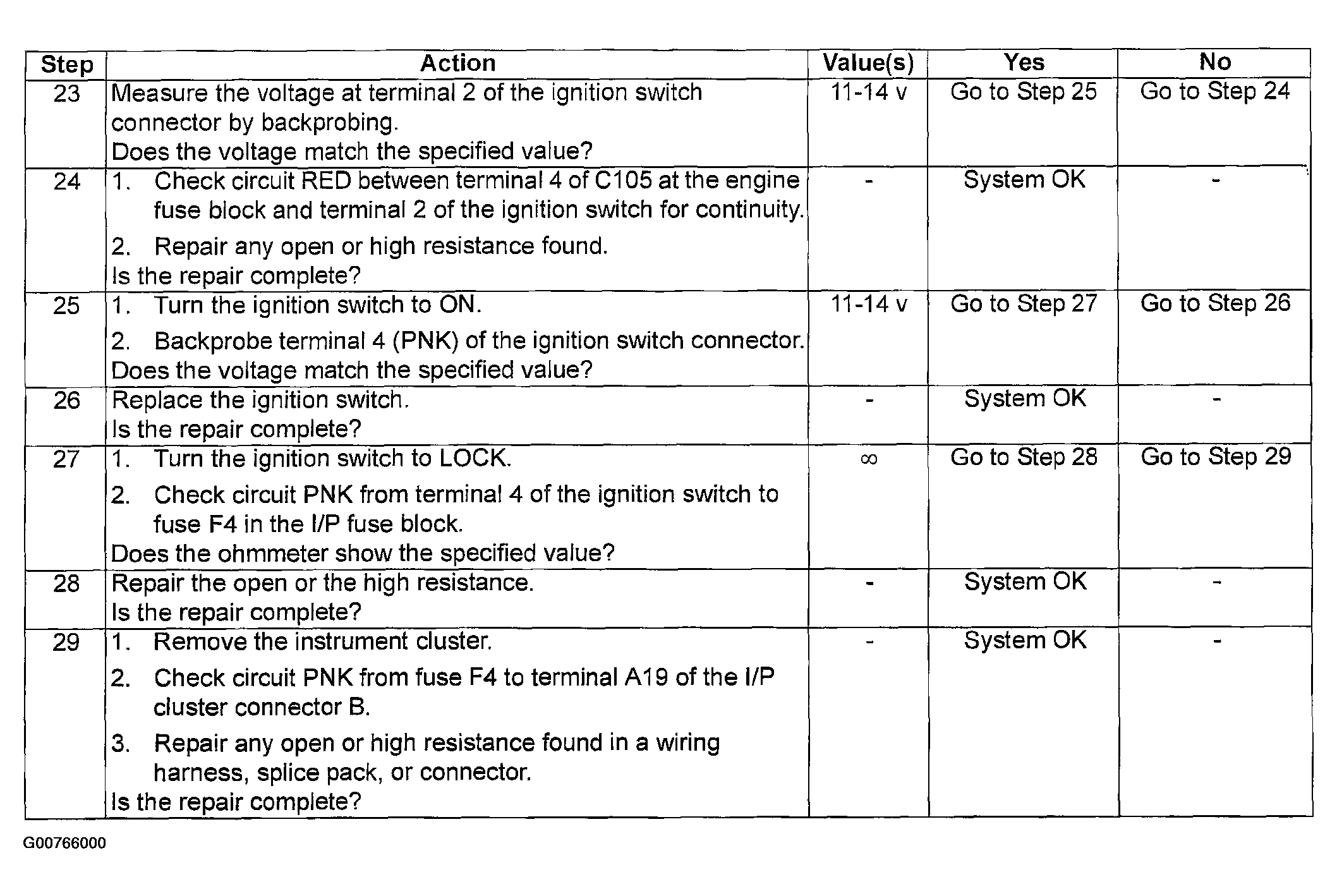

Fig 3: ABS Indicator Lamp Inoperative Chart (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
