Stoplamp Switch Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the stoplamp switch from the plug connector.

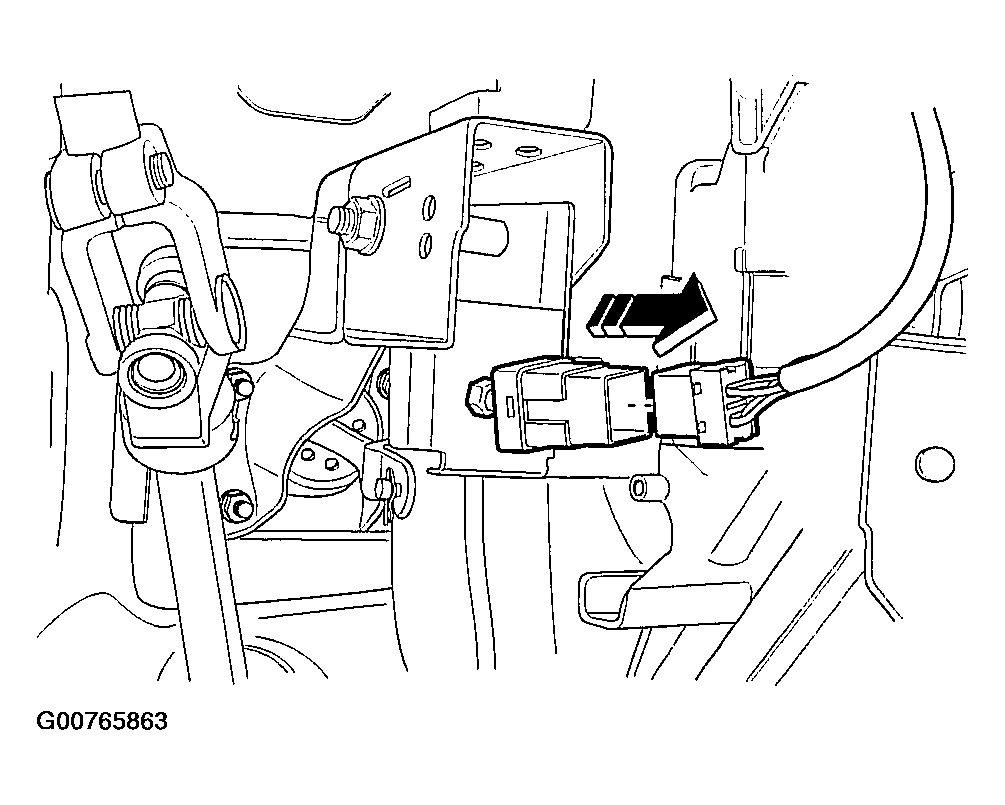

    Fig 1: Disconnecting The Stoplamp Switch From The Plug Connector
    G00765863Courtesy of SUZUKI OF AMERICA CORP.
  3. Turn the switch. Remove the switch from the brake pedal bracket.
