Diagnostic Trouble Codes Identification
>>
DTC P1841: EDS 3 Output Open
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P1841: EDS 3 Output Open: Notes

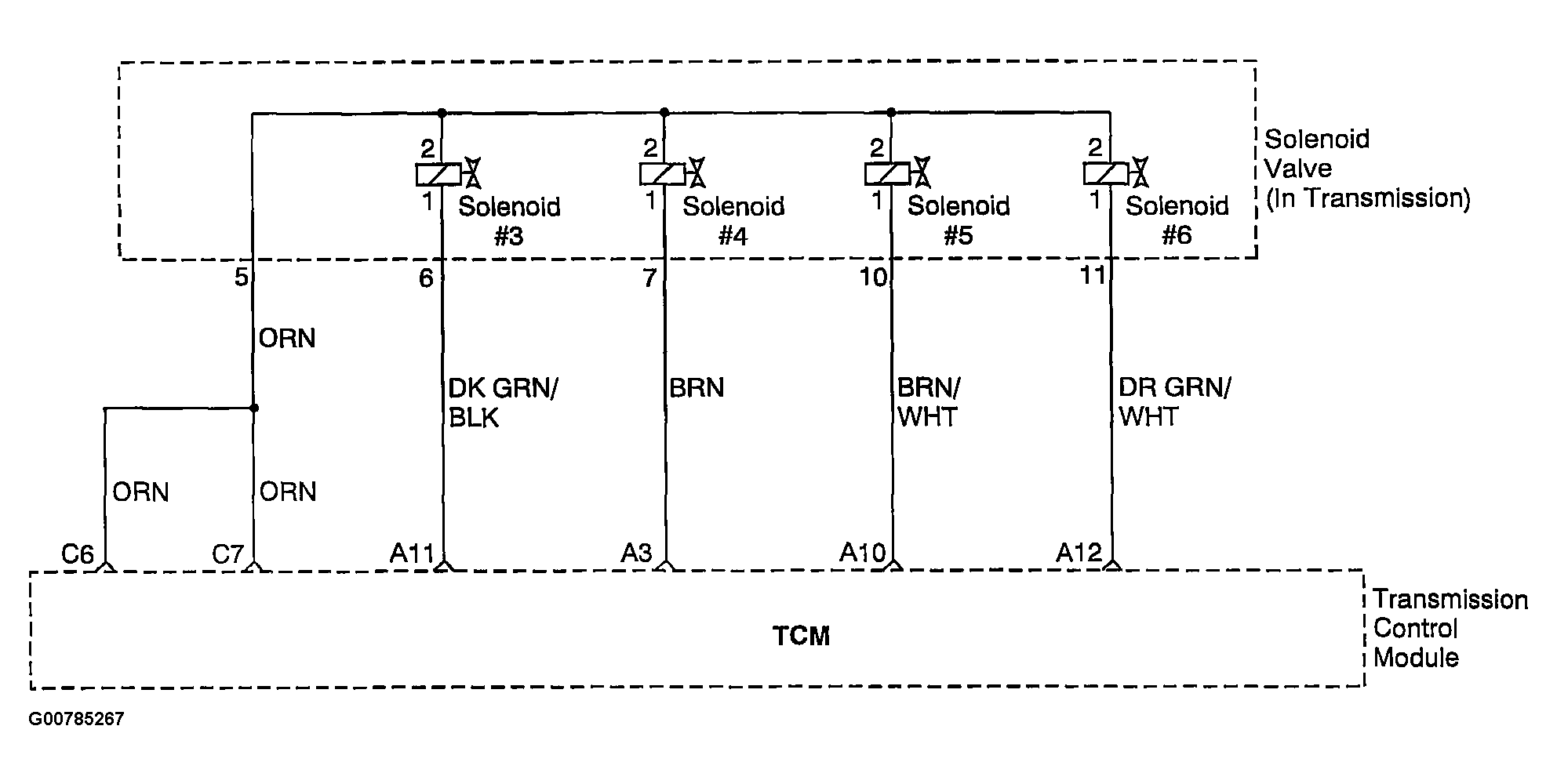

Fig 1: DTC P1841 EDS 3 Output Open Diagnostic Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
