Conditions for Clearing the MIL/Diagnostic Trouble Codes

• The MIL will turn OFF when the malfunction has not occurred after three-ignition cycle.
• A history DTC will clear after 40 consecutive warm up cycles without a fault.
• Using a scan tool can clear history DTCs.

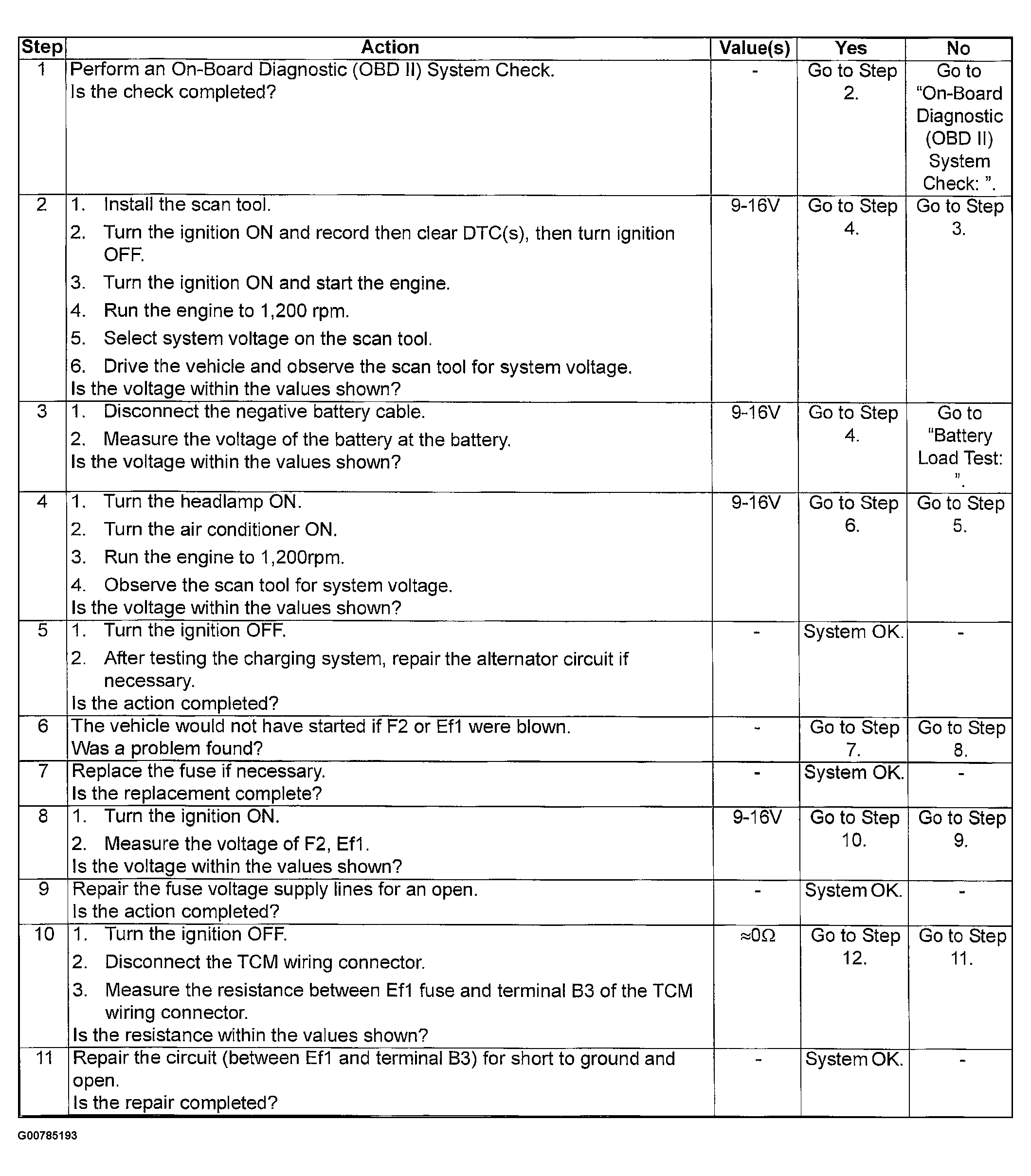

Fig 1: DTC P0606 Transaxle Control Module Processor Fault Diagnostic Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

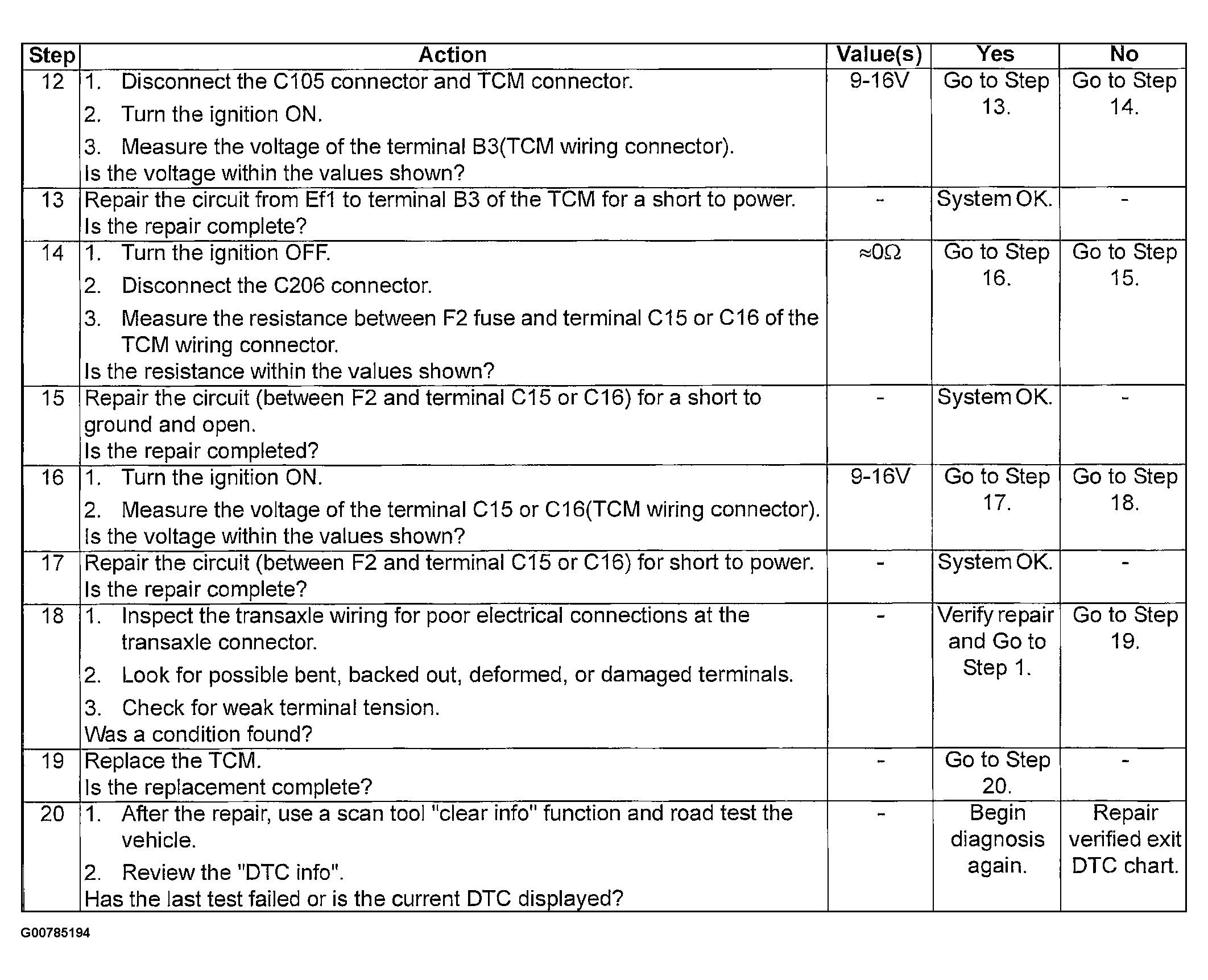

Fig 2: DTC P0606 Transaxle Control Module Processor Fault Diagnostic Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
