Removal & Installation

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove 2 Torx screws securing driver-side air bag module to steering wheel. Pull driver-side air bag module away from steering wheel. Disconnect driver-side air bag module and horn connectors. Remove driver-side air bag module. See Fig 1.
To install, reverse removal procedure. Tighten driver-side air bag module Torx screws to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

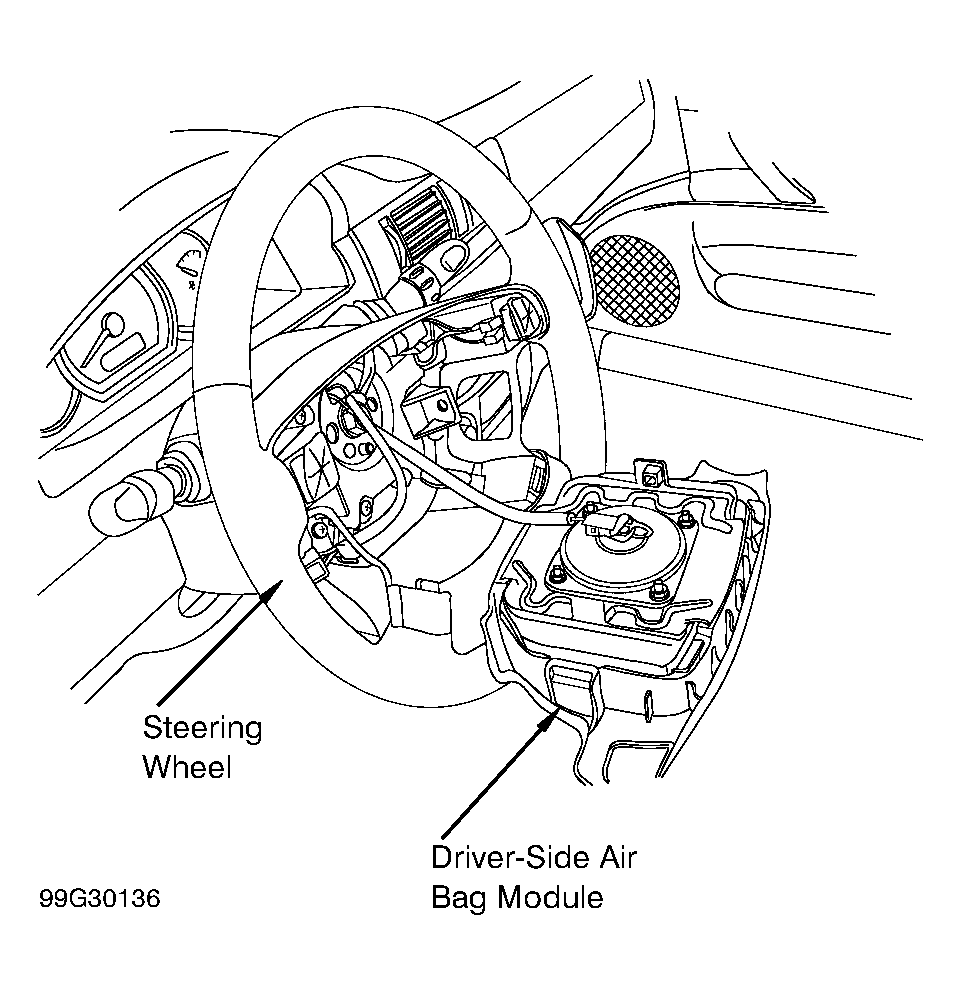

Fig 1: Identifying Driver-side Air Bag Module

Courtesy of SUZUKI OF AMERICA CORP.
