Instruments - Clock Will Not Hold Memory

Section Title: BODY ELECTRICAL
TSB No. TS 03 04054

Division: Automotive
Category: Technical

SUBJECT:
LOCK WILL NOT HOLD MEMORY WHEN IGNITION KEY IS TURNED OFF

MODEL(S):
FORENZA

YEAR:
2004

CONDITION:
After turning the ignition switch to the off position, the clock time will default to 1:00. This may not occur immediately. The clock will not hold memory.





CORRECTION:

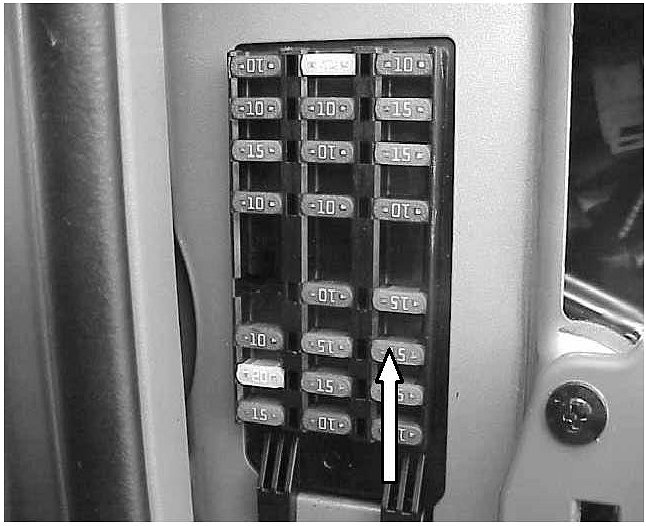

Check the 15 AMP, "Auto A/C fuse" to be sure it is not blown and is properly installed. It is located in the fuse panel on the driver's side of the instrument panel as shown in the illustration. See owner's manual or service manual for more information.
