Home >> Suzuki >> 2004 >> Forenza L4-2.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Locations >> I/P Fuse Block

April 5, 2026: LEMON Manuals is launched! Read the announcement.

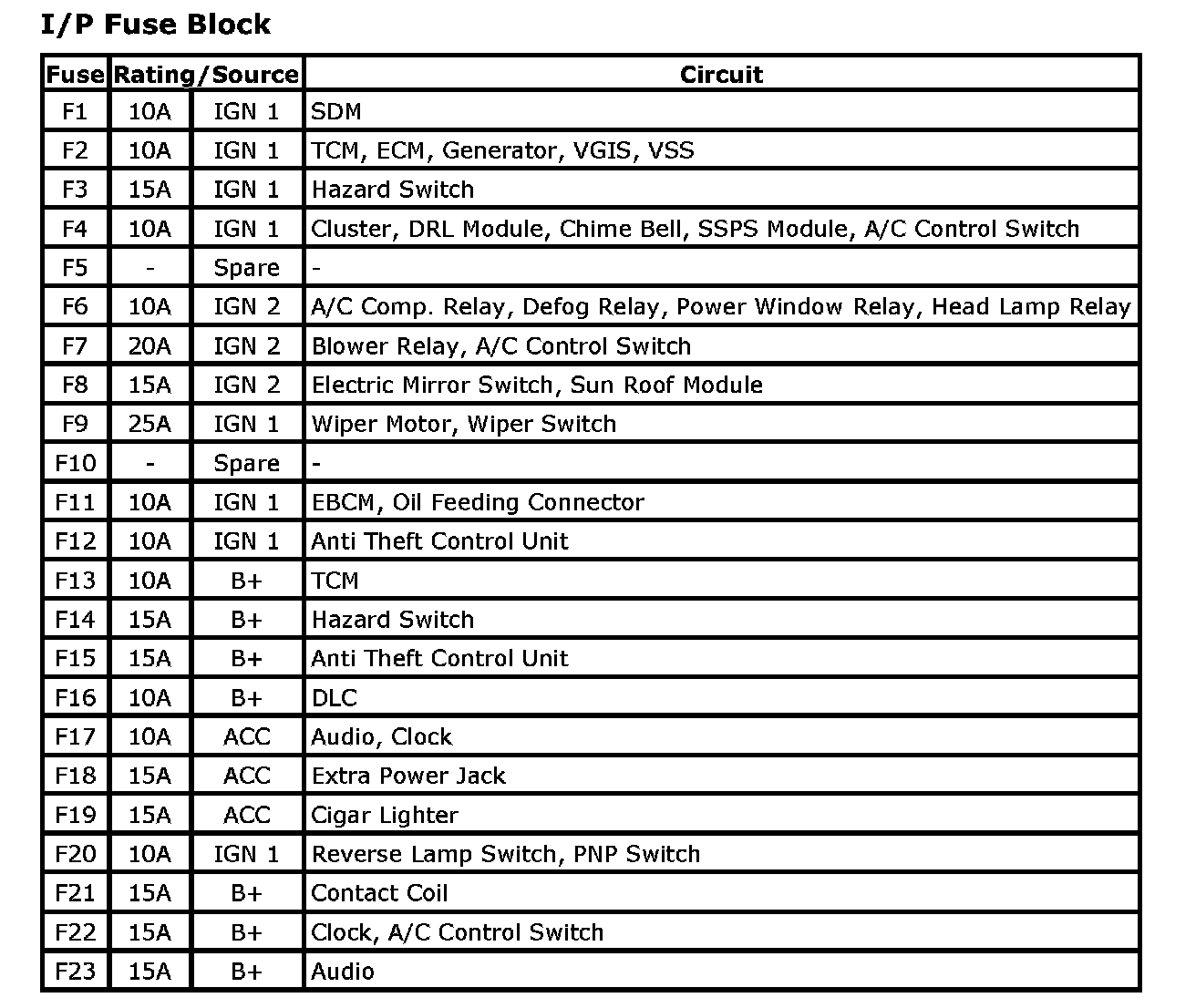

I/P Fuse Block

I/P Fuse Block:
