Driver Airbag Module Removal and Installation
Driver Airbag Module Removal and InstallationRemoval
1. Disconnect the negative battery cable.
2. Remove the audio control switch.
3. Remove the cruise control switch.

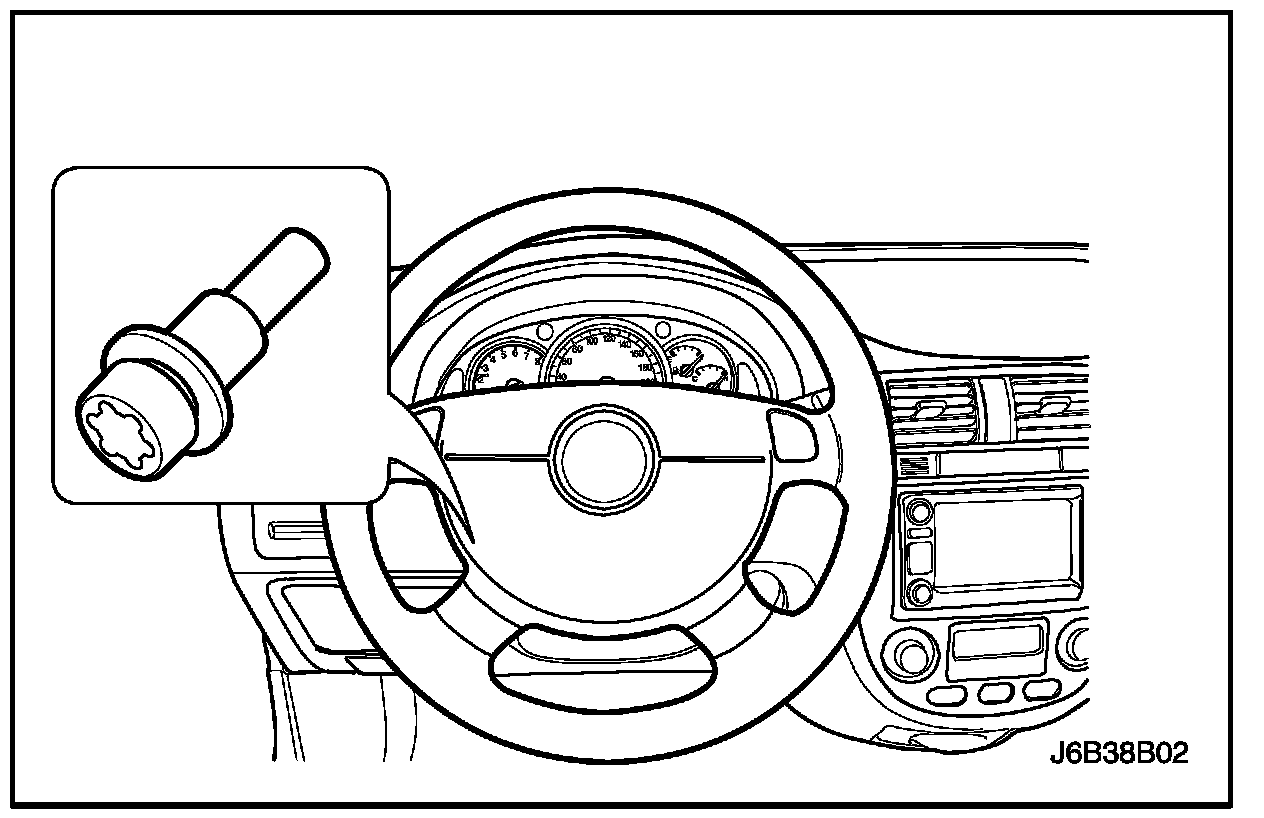

4. Remove two driver airbag module mounting bolts and discard them.

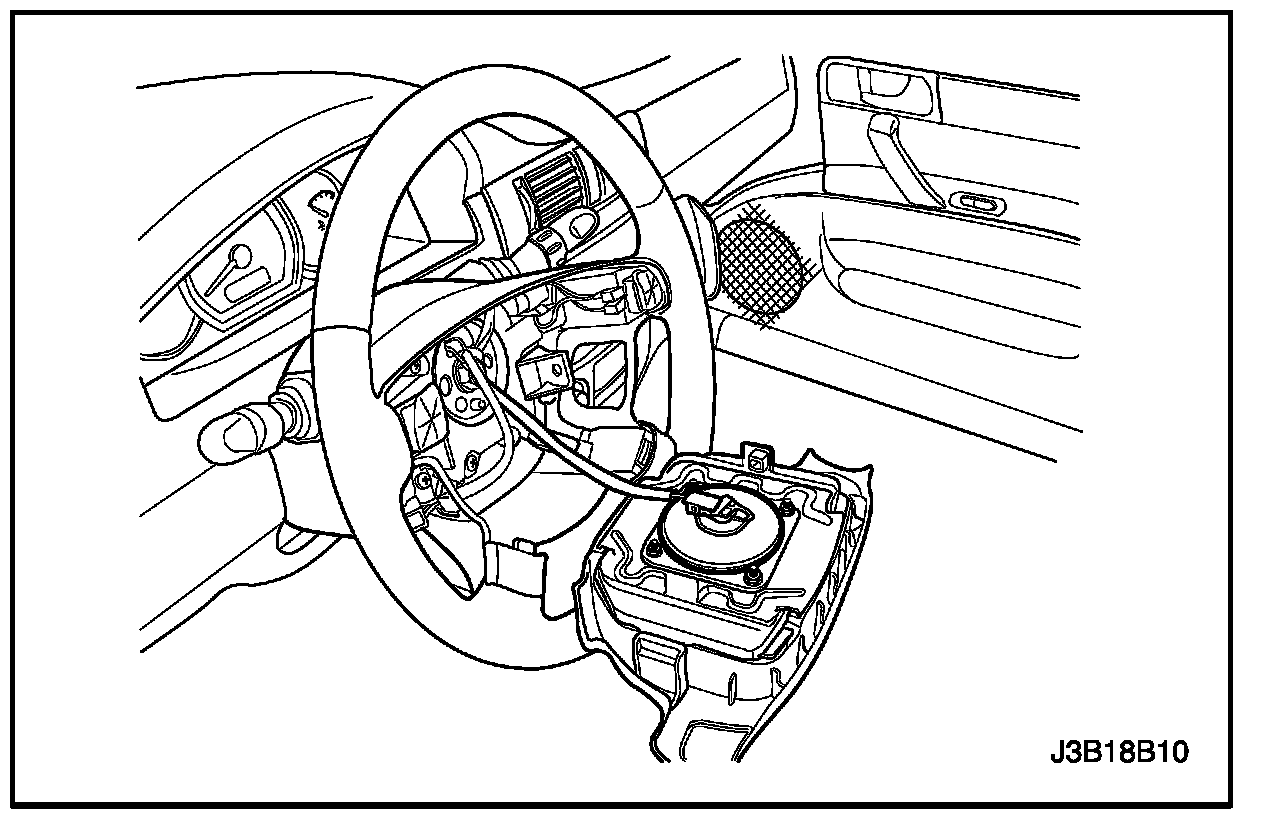

5. Remove the connectors from the driver airbag module.
6. Remove the driver airbag module.
Installation
1. Installation should follow the removal procedure in the reverse order.
^ Tightening torque of the driver airbag module mounting bolt is 15 Nm (11 lb.ft).
