Power Distribution Schematic Diagram

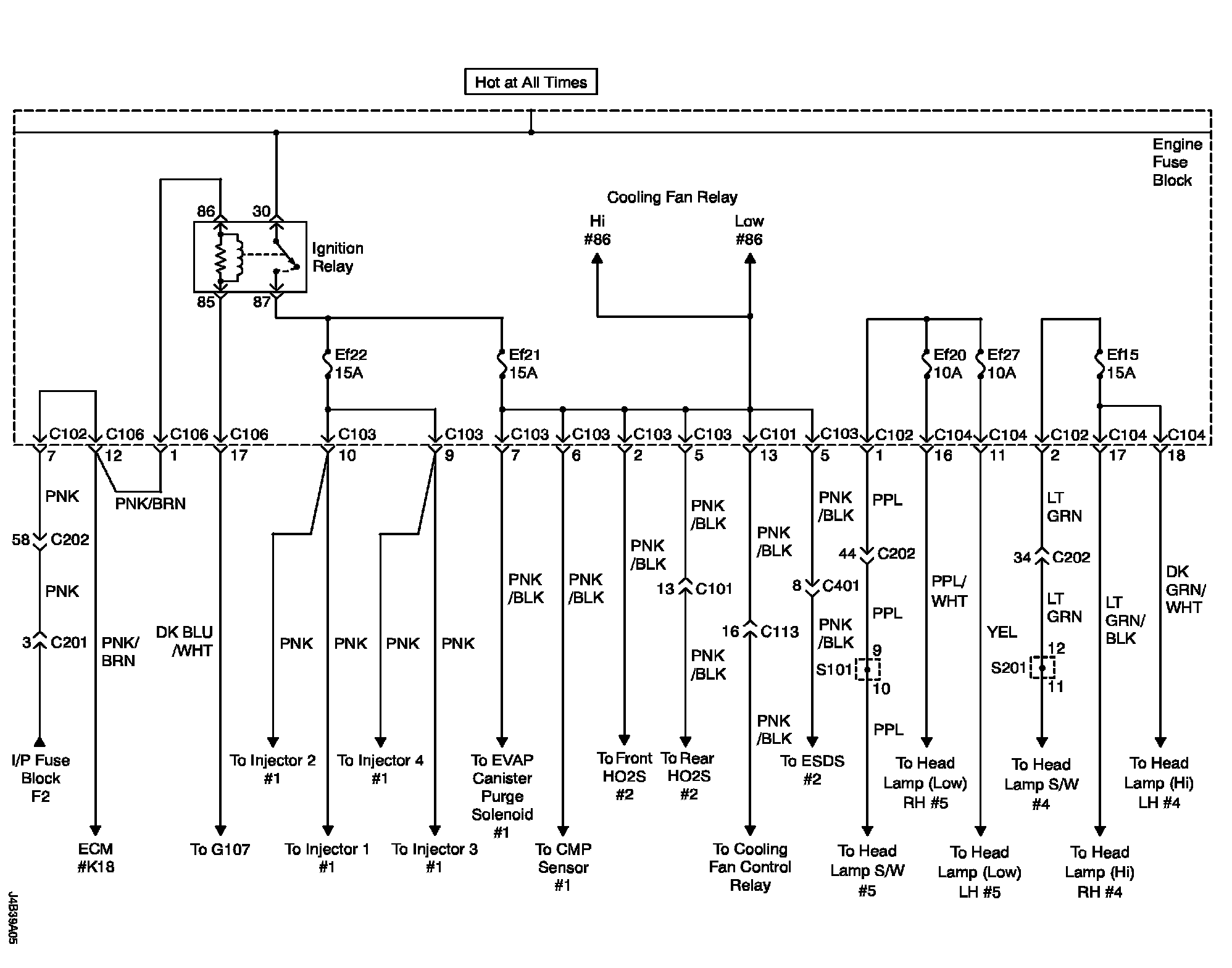

Power Distribution Schematic Diagram Part 1:

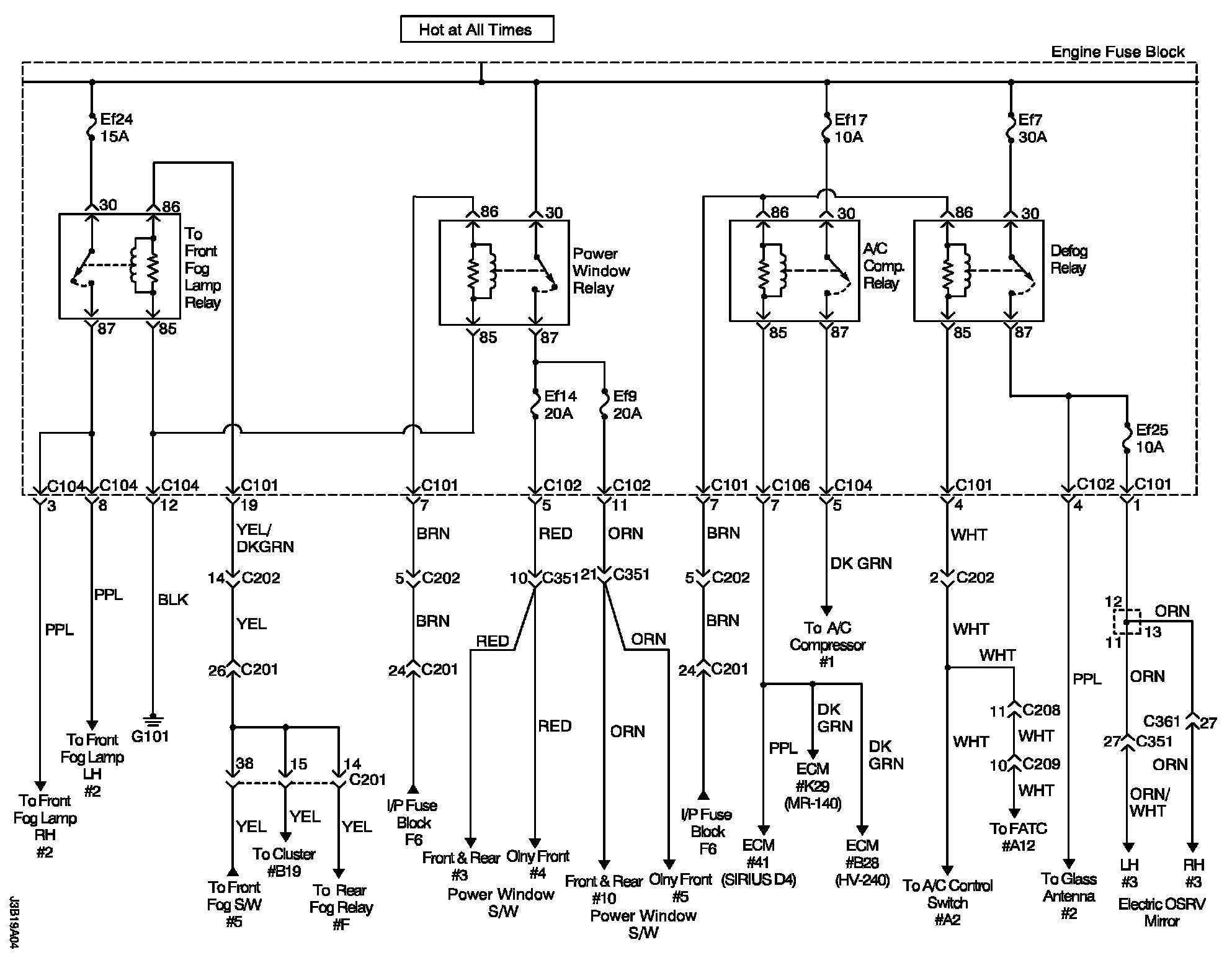

Power Distribution Schematic Diagram Part 2:

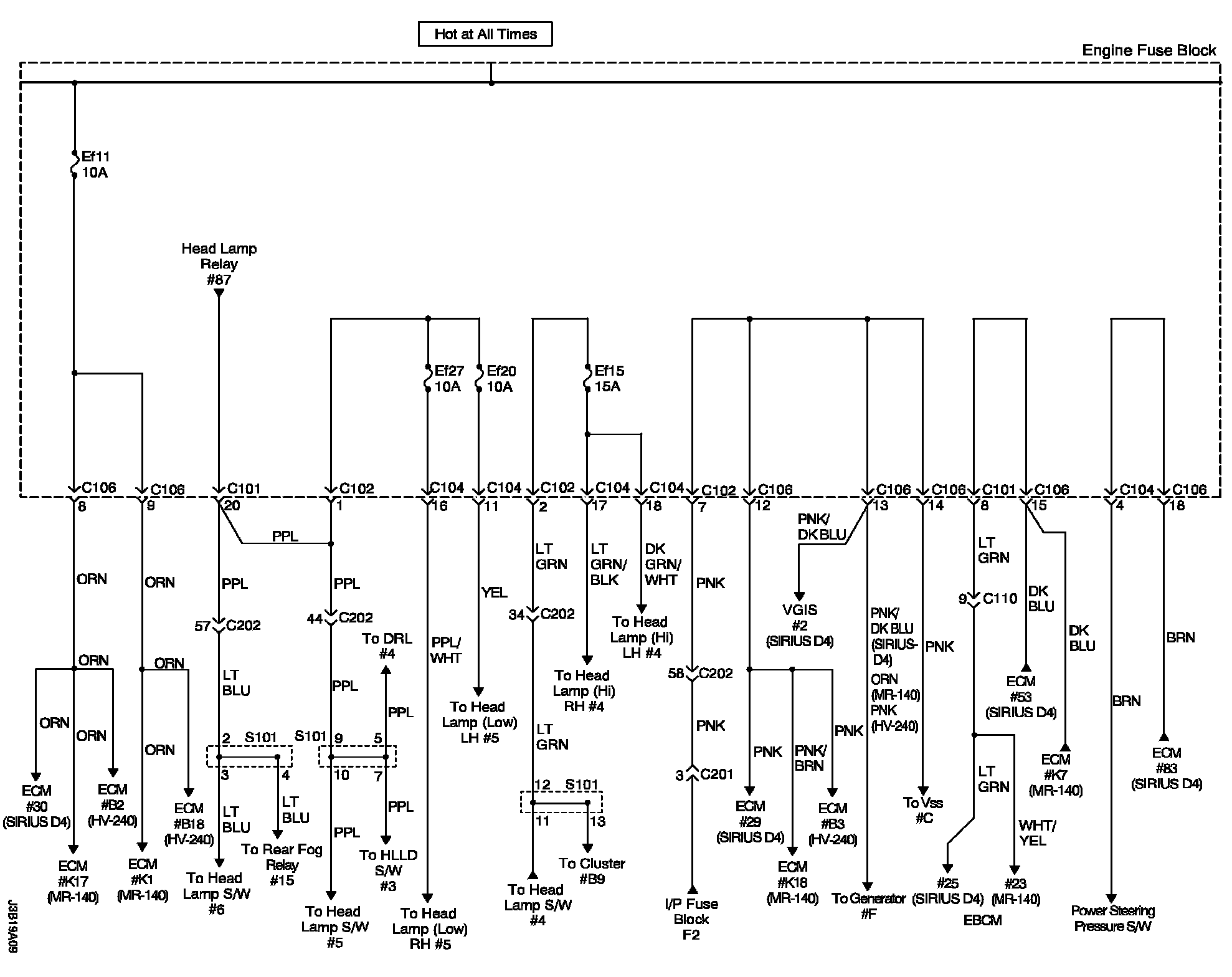

Power Distribution Schematic Diagram Part 3:

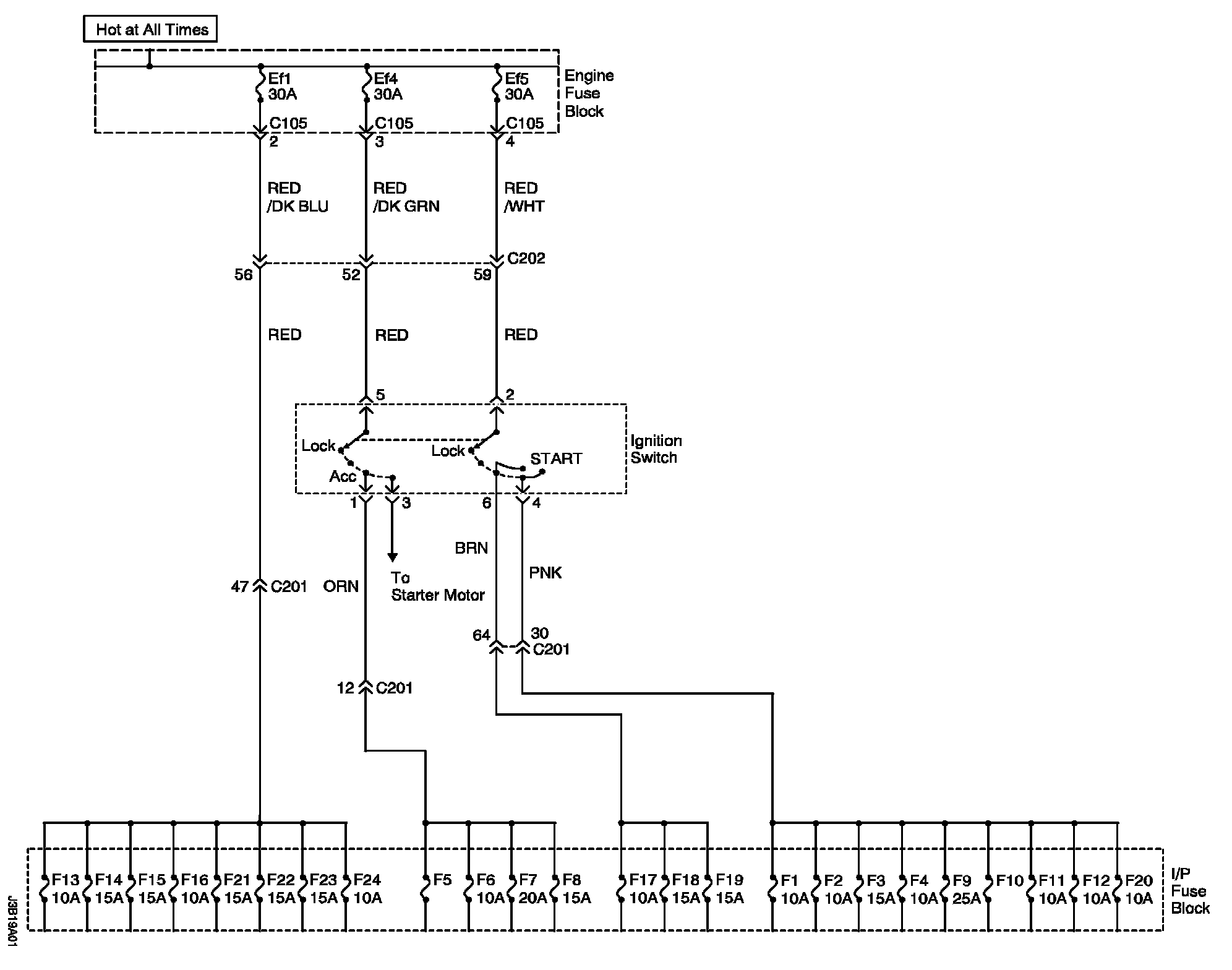

Power Distribution Schematic Diagram Part 4:

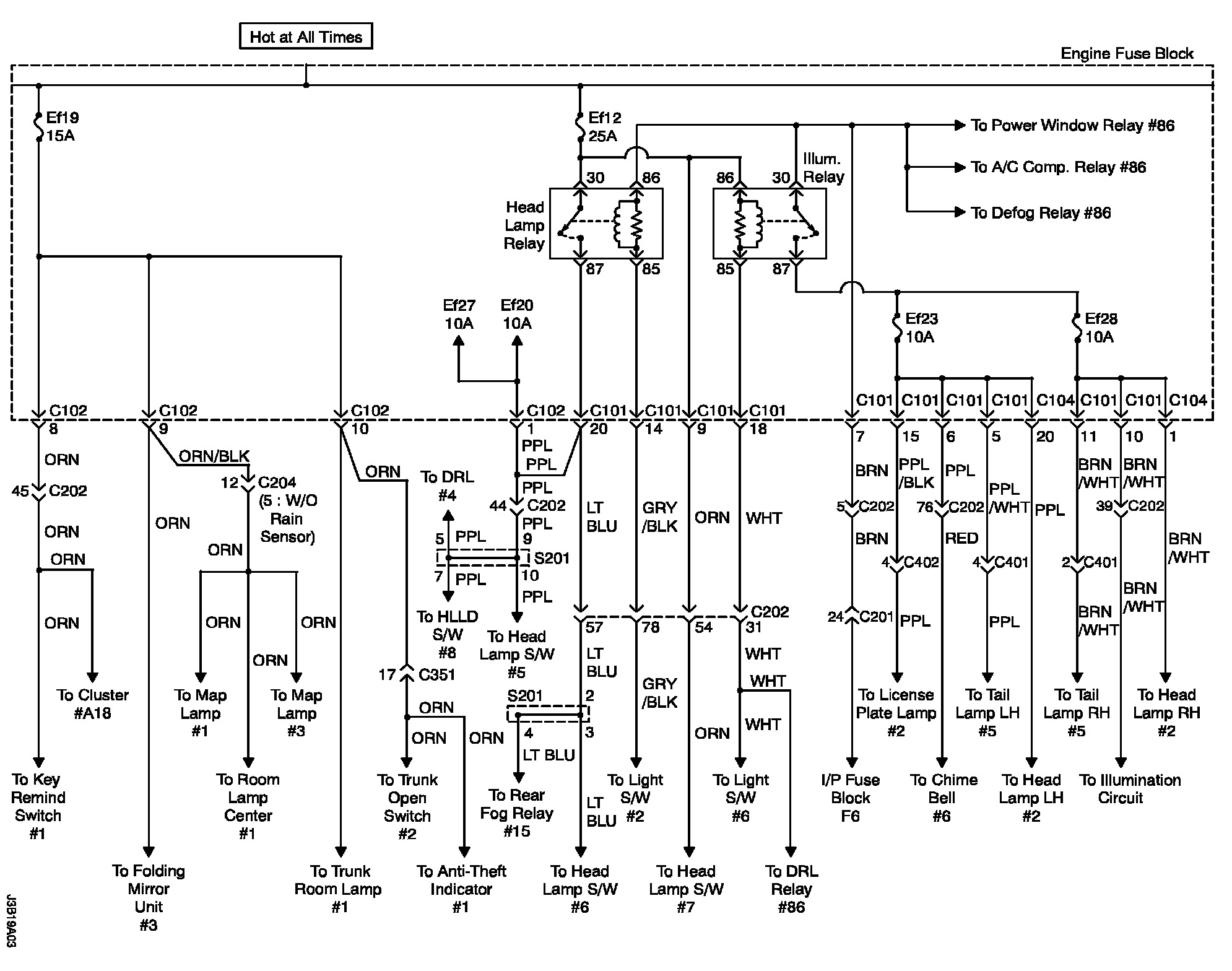

Power Distribution Schematic Diagram Part 5:

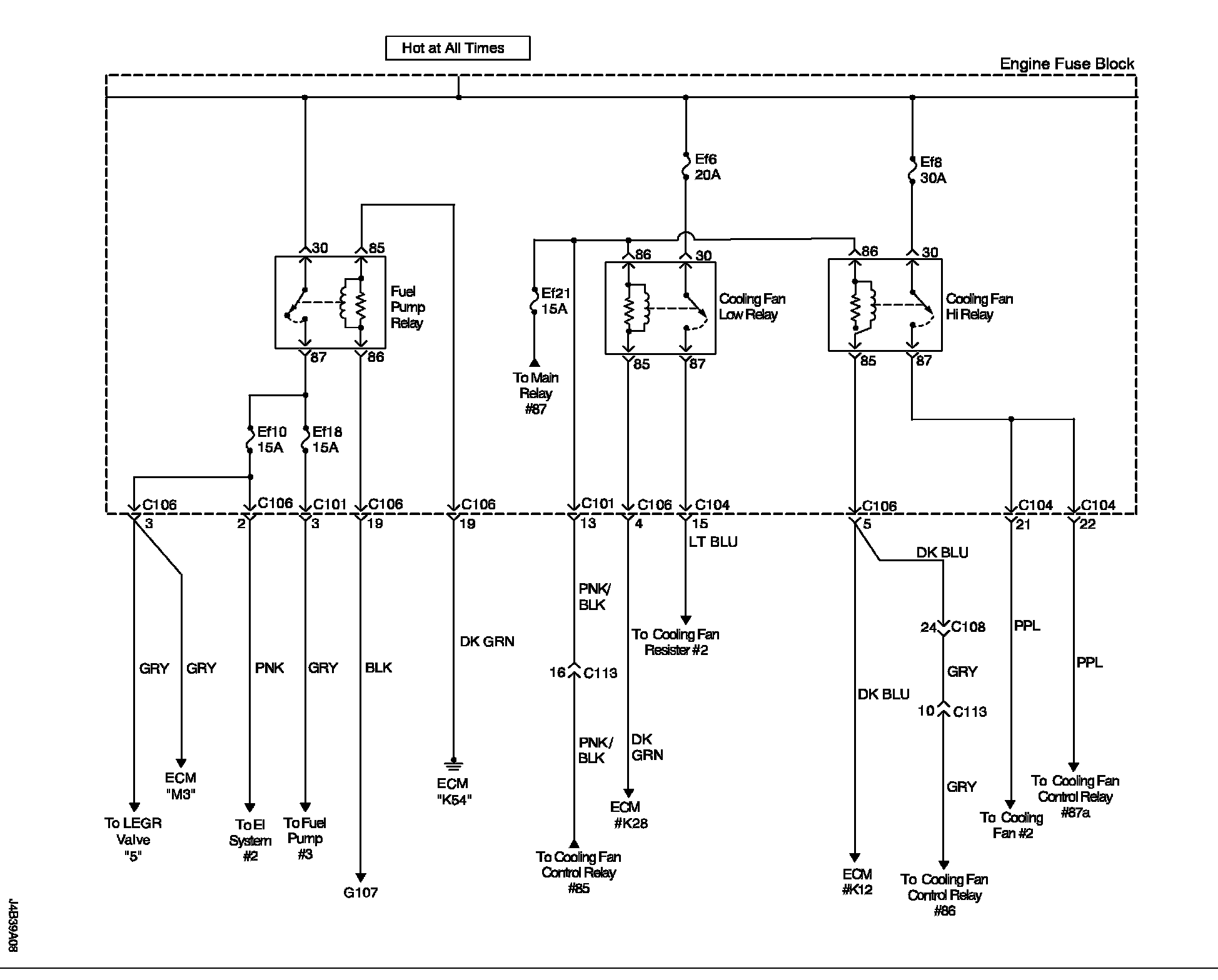

Power Distribution Schematic Diagram Part 6:

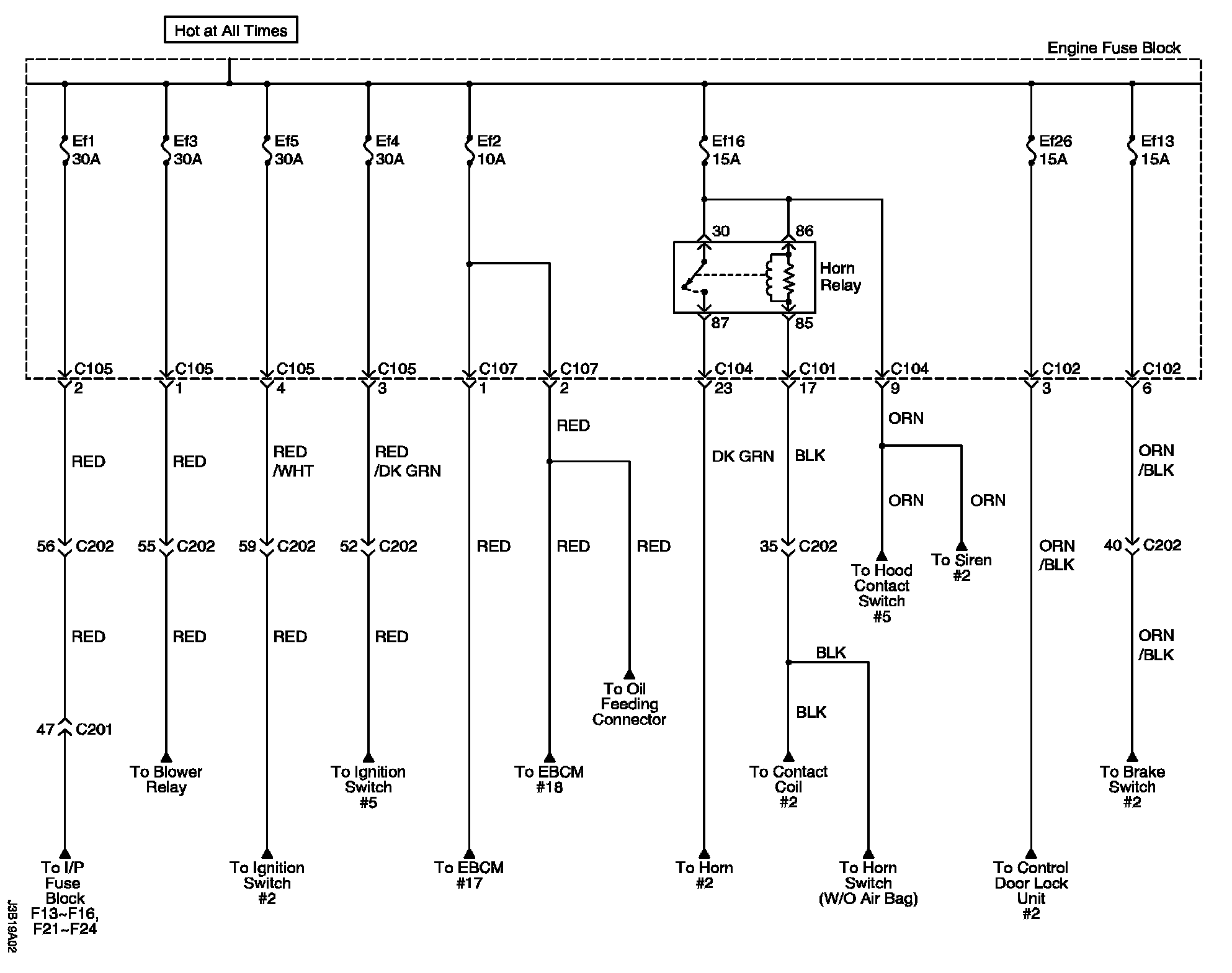

Power Distribution Schematic Diagram Part 7:
