Insufficient Heating or Defrosting Diagnosis

Insufficient Heating or Defrosting Diagnosis

WARNING: The cooling system is pressurized when hot. Injury can result from removing the surge tank cap before the engine is sufficiently cool.

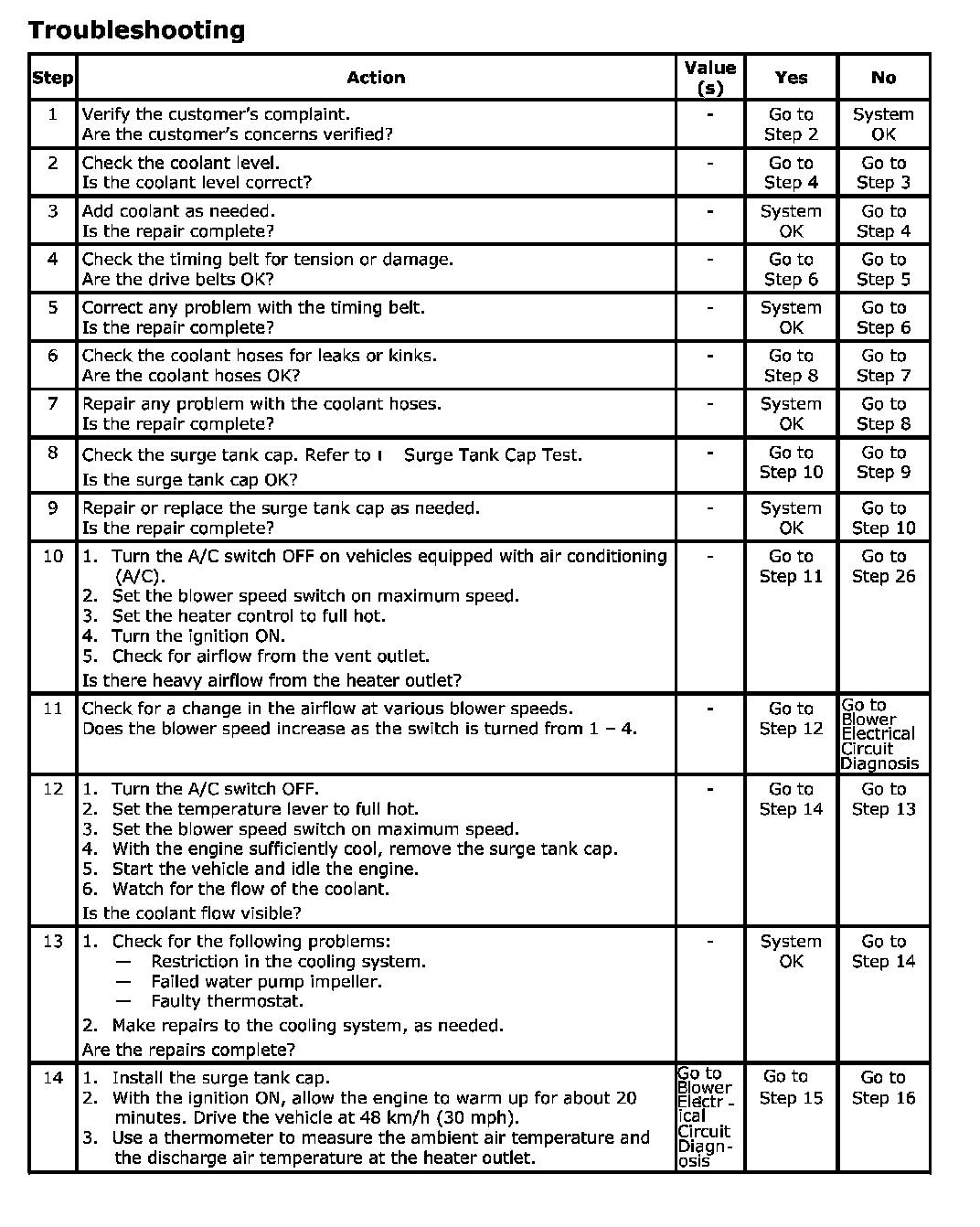

Step 1 - 14:

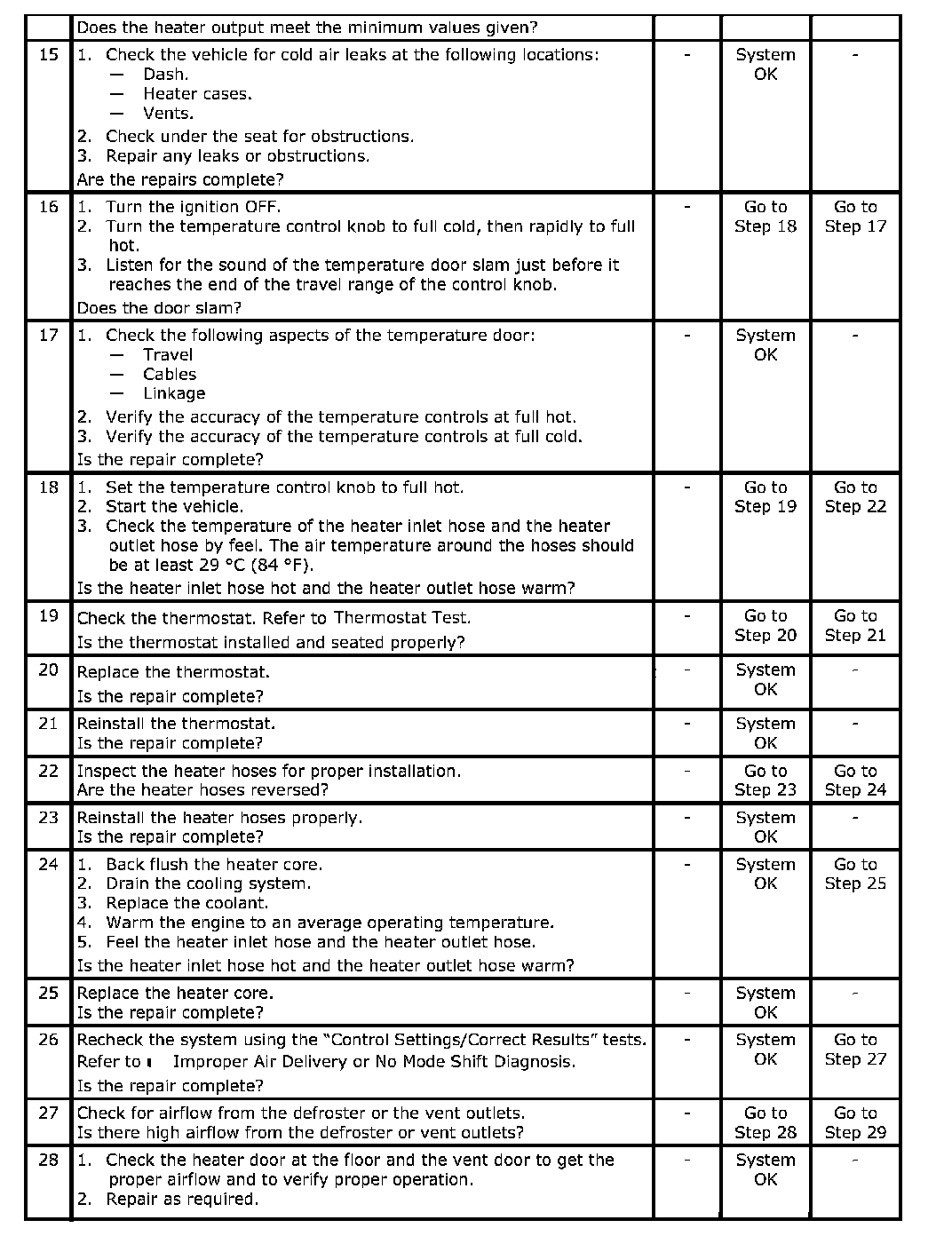

Step 14 (Continued) - 28:

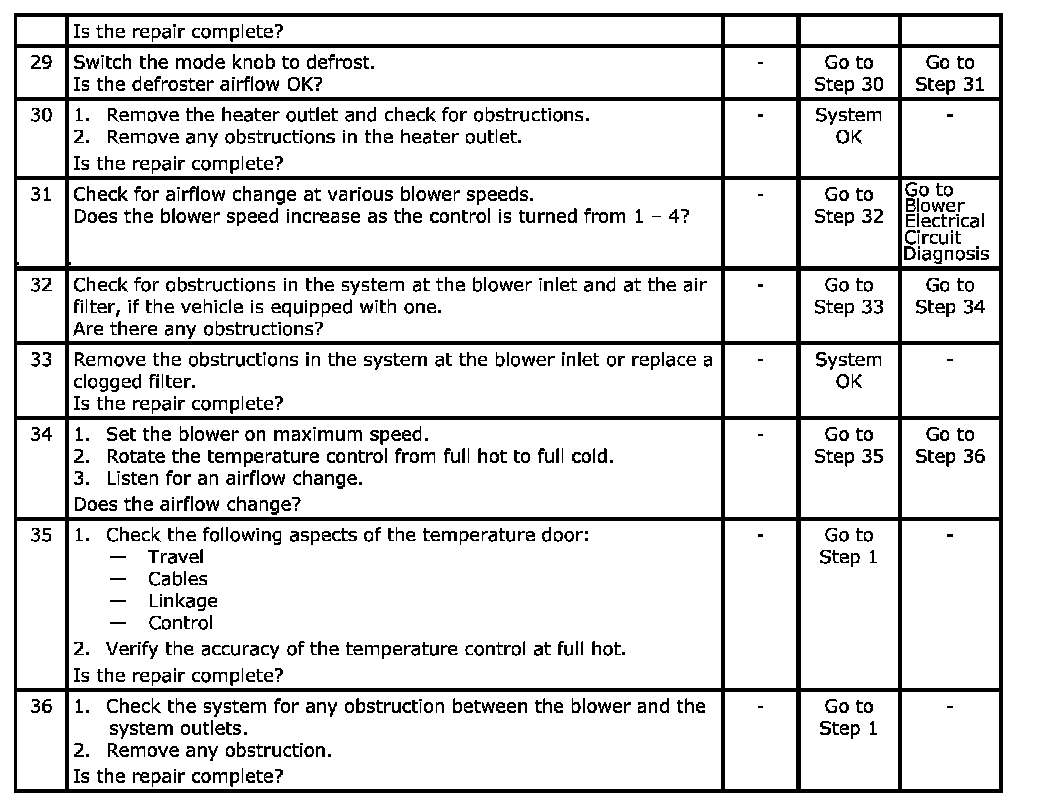

Step 28 (Continued) - 36:




Troubleshooting
