Wiring Diagram

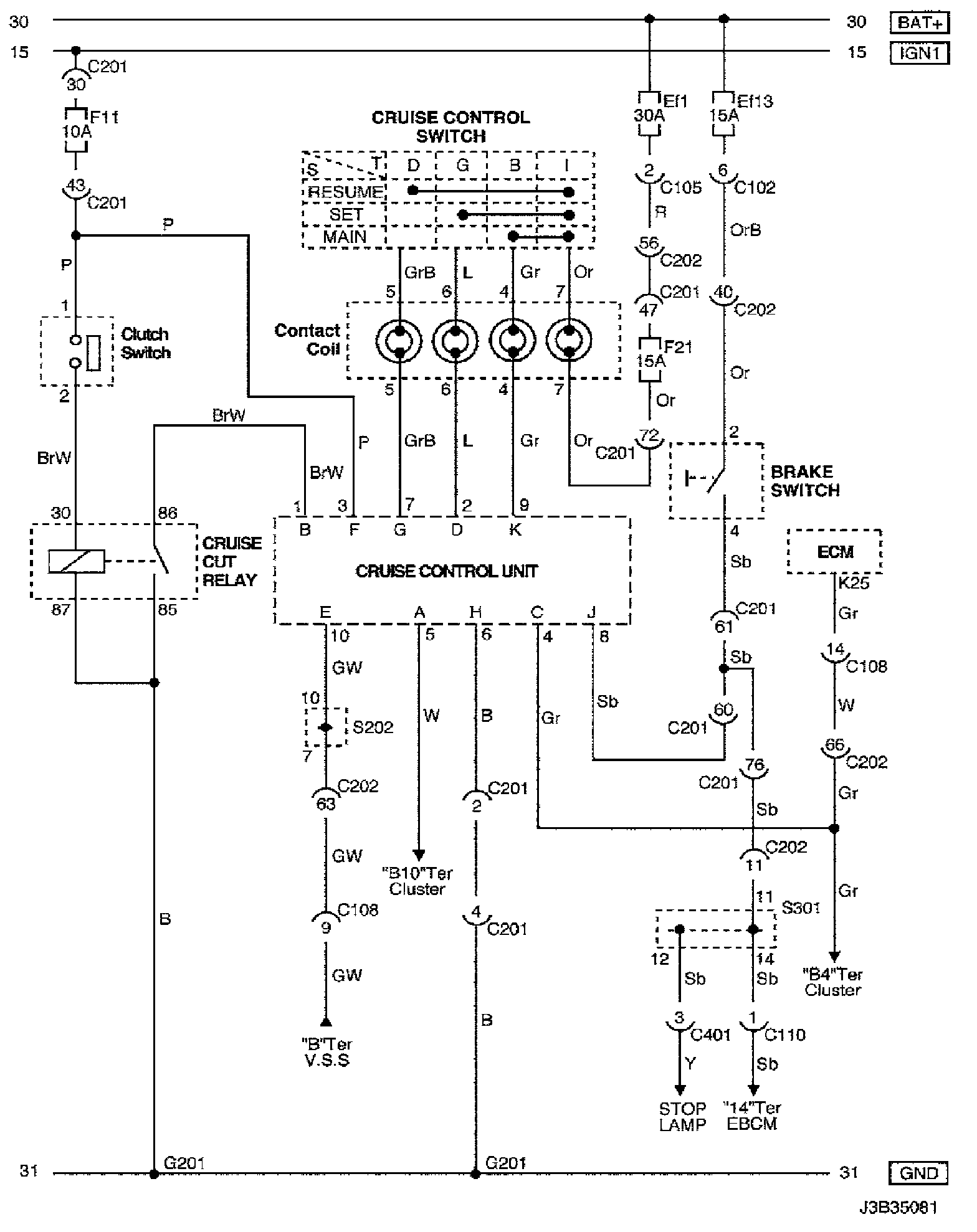

Cruise Control System Wiring Diagram (For M/T):



Cruise Control System Wiring Diagram (For A/T):

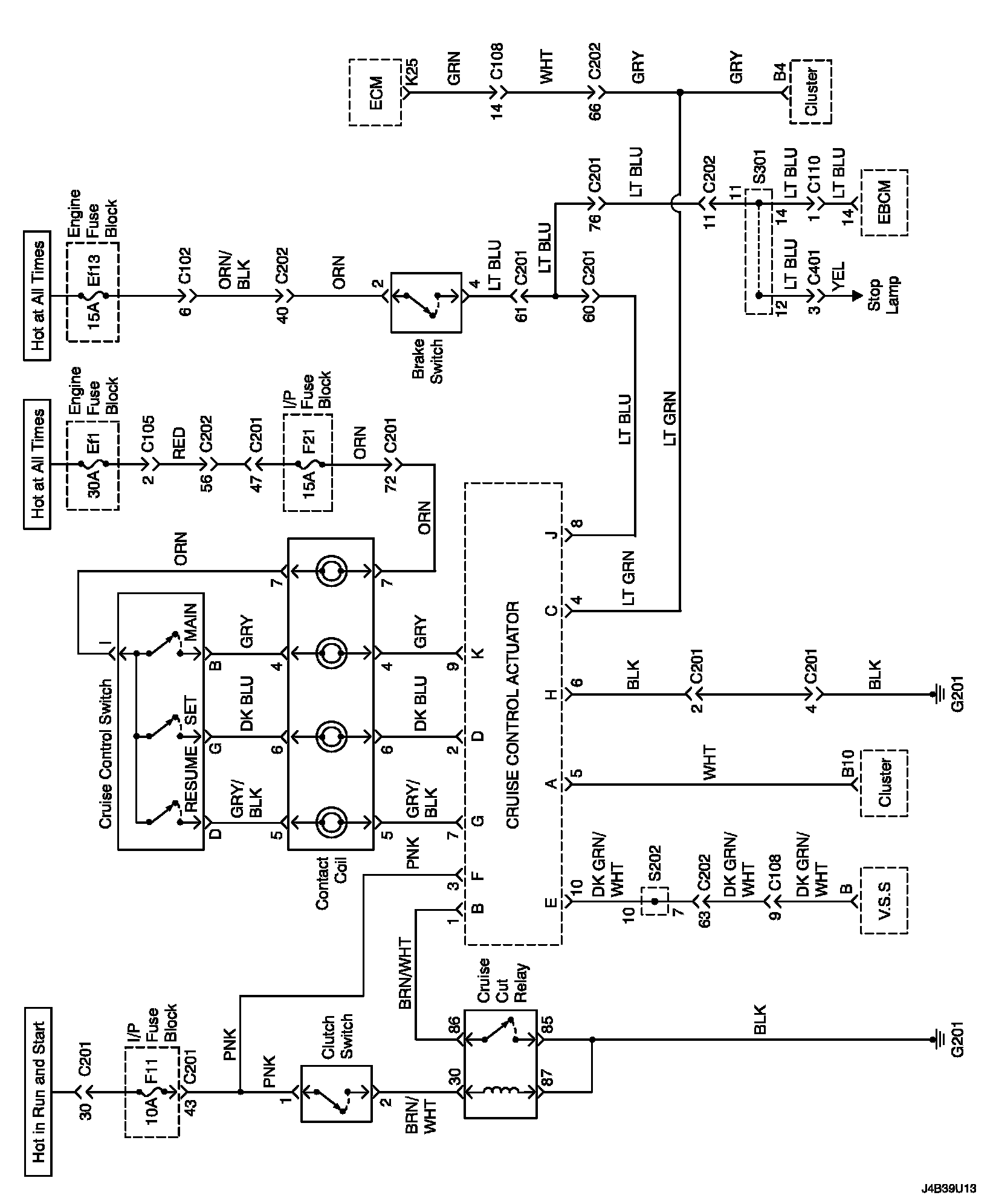

Cruise Control System Circuit Wiring Diagram M/T:
