Split Rear Seatback Removal and Installation

Split Rear Seatback Removal And Installation

Removal

1. Lower the rear seatbacks.

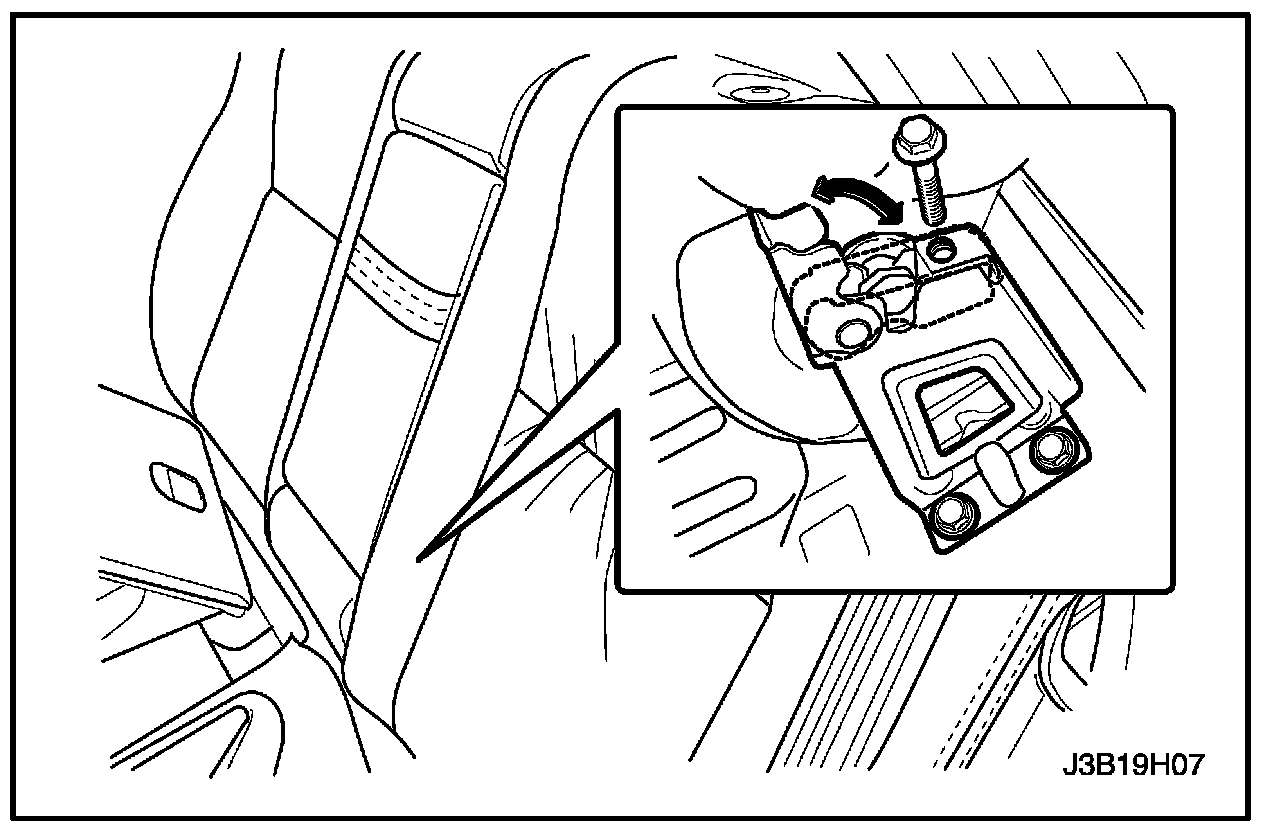

2. Remove the bolts, and the seatback from the hinges.







Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

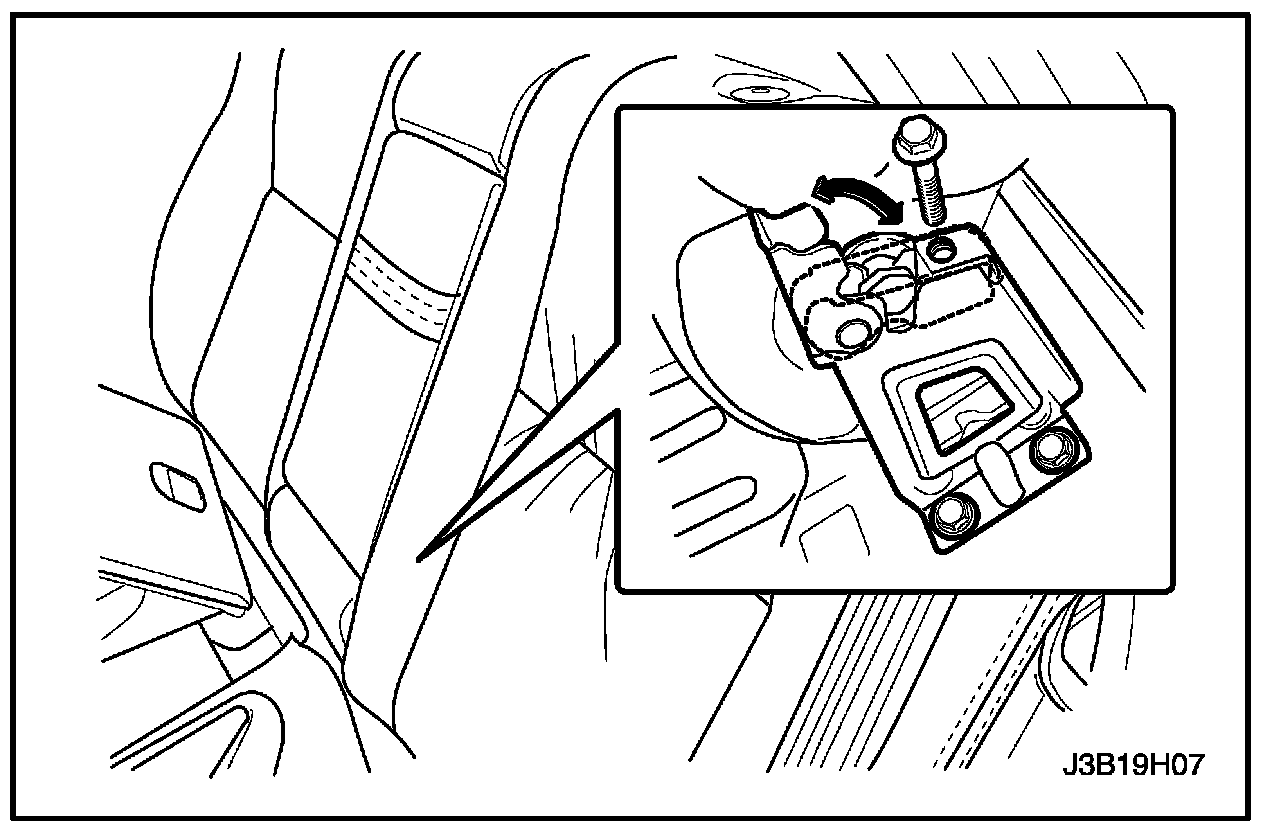

1. Install the seatback to the hinges with the bolts.

Tighten:
Tighten the rear seatback bolts to 25 Nm (18 ft. lbs.).

2. Raise and secure the rear seatback in the upright position.
