Door Lock Cylinder Switch: Service and Repair

Door Lock Cylinder Removal And Installation

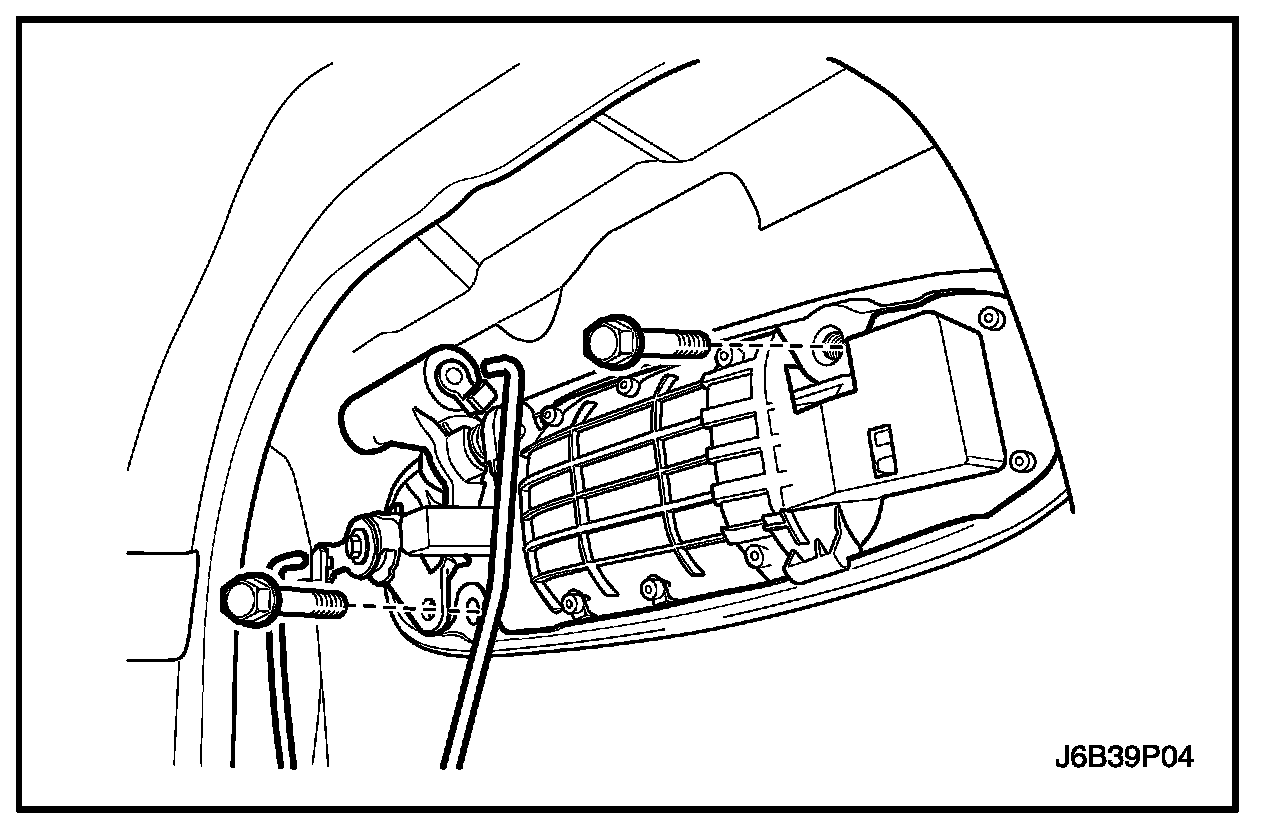

Removal

1. Remove the door seal trim.
2. Disconnect the outside door handle lock rod.
3. Remove the bolt and the lock cylinder.







Installation

1. Install the lock cylinder with the bolt.

Tighten:
Tighten the outside door handle bolt to 4.5 N.m (40 lb-in).

2. Connect the outside door handle lock rod.
3. Install the door seal trim.
