Grille: Service and Repair

Radiator Grille Removal And Installation

Removal

1. Open the hood.

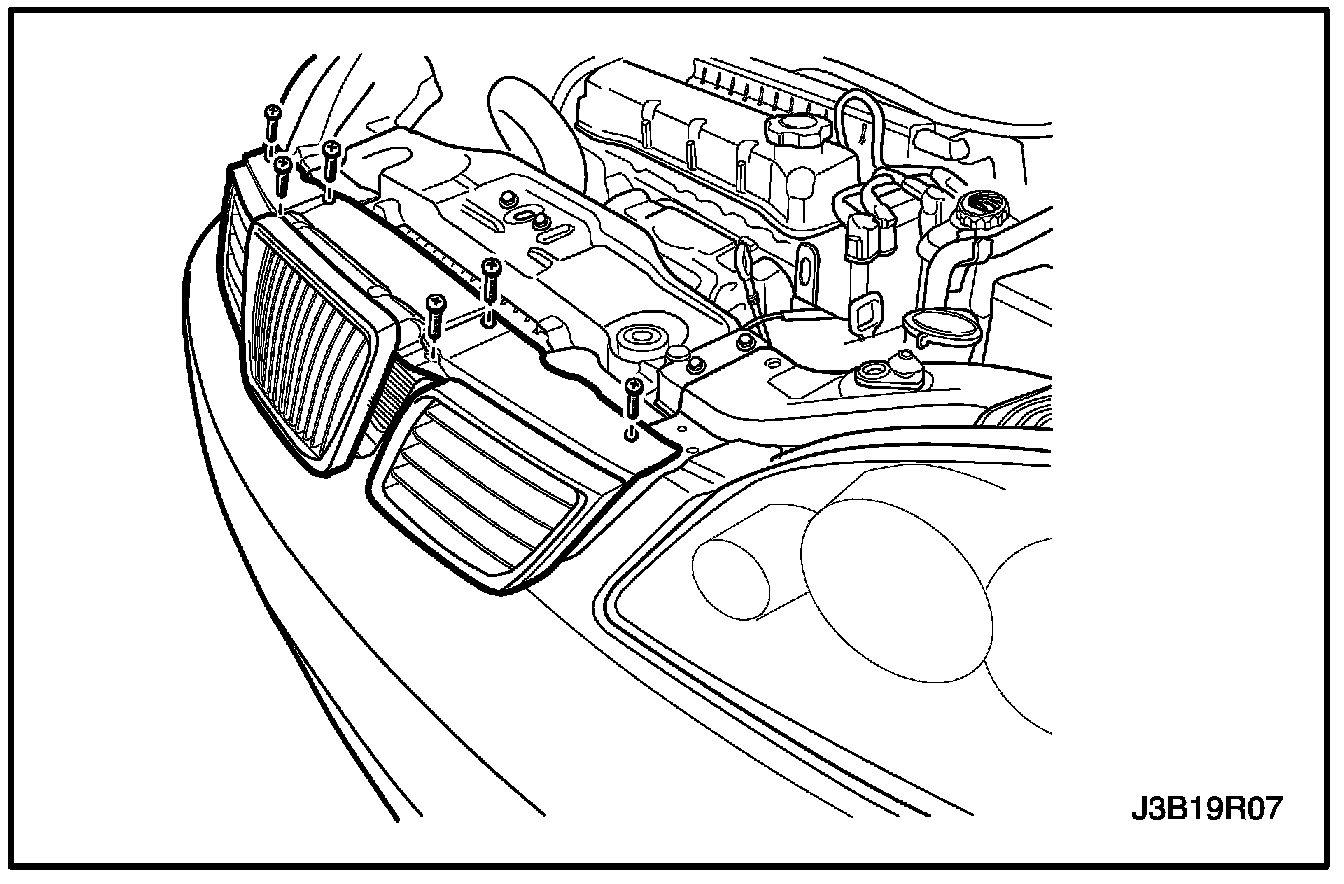

2. Remove the screws and clips at lower area of the radiator grille.







Installation

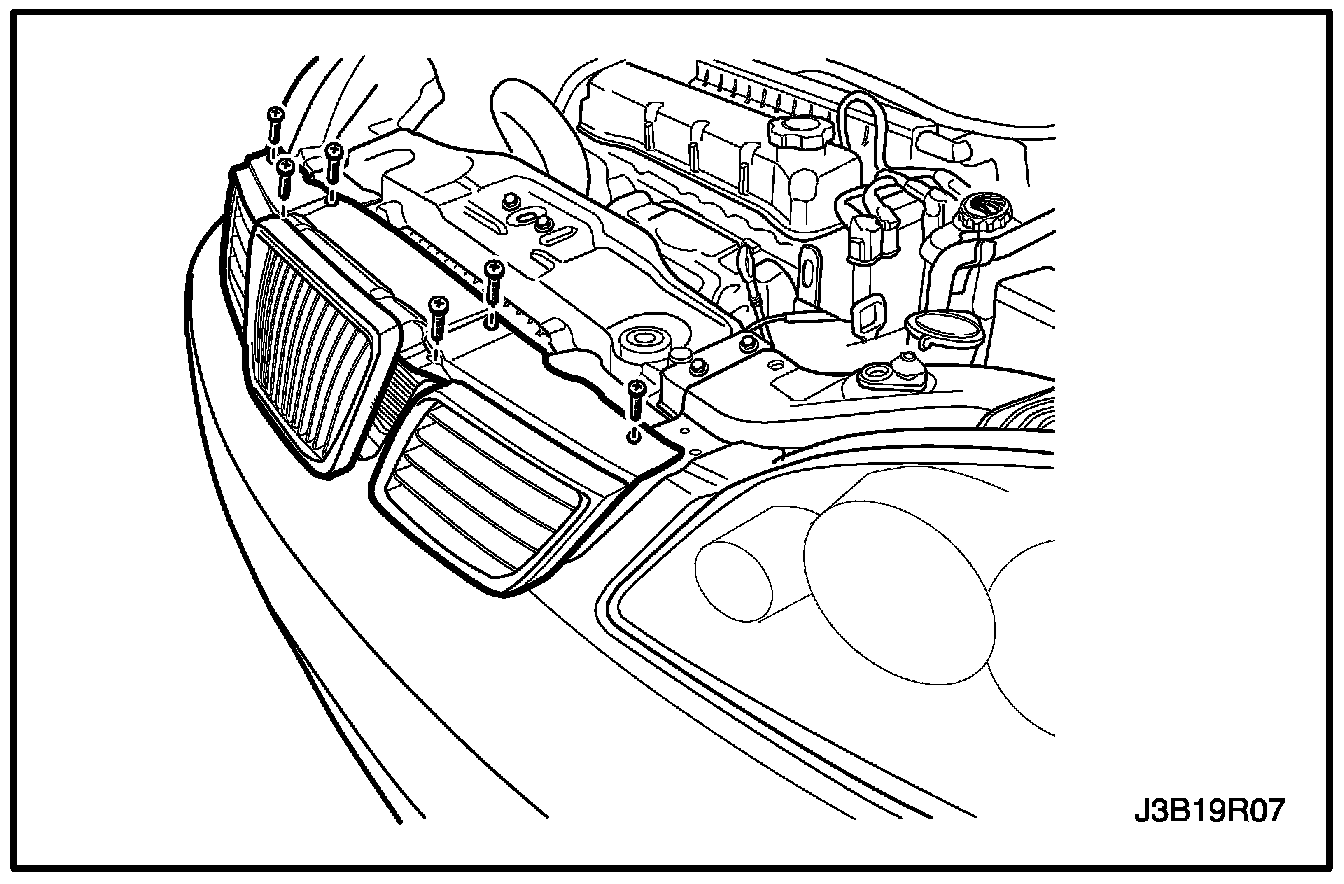

1. Install the radiator grille with the screws and clips.
