Trunk / Liftgate Spring: Service and Repair

Rear Deck Lid Torque Rods Removal And Installation

Removal

1. Raise and support the deck lid in the open position.

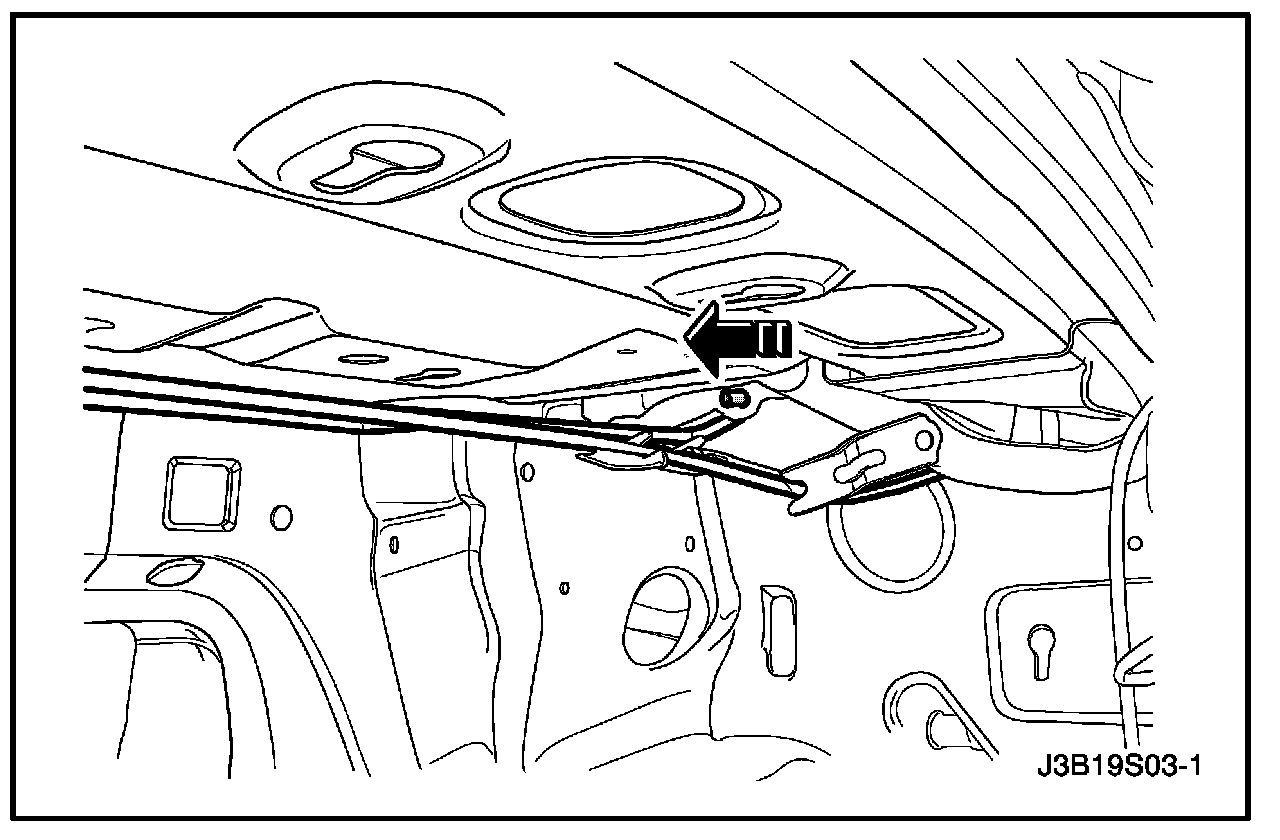

2. Pull the torque rods out of the rear mount.
3. Remove the torque rods from the hinge.







Installation

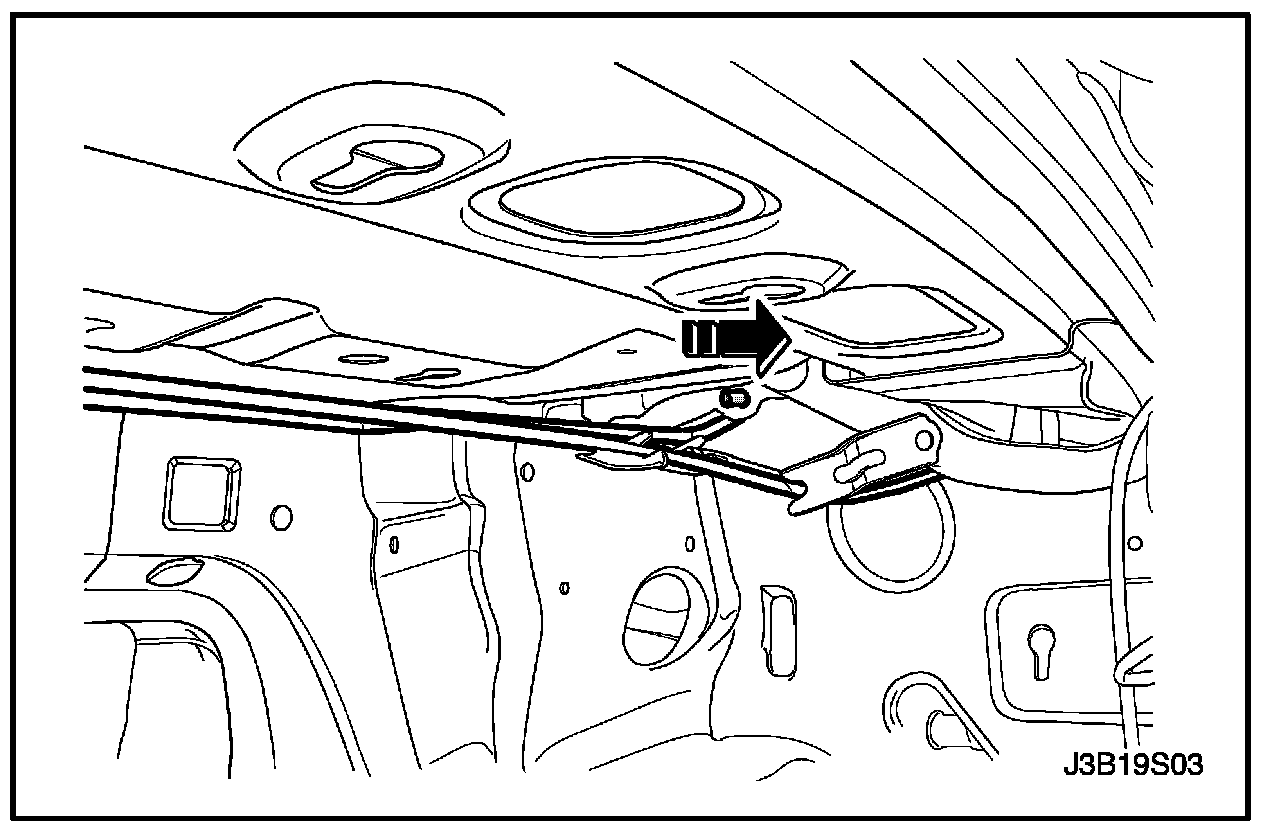

1. Install the torque rods into the hinge mount.
2. Extend the torque rods to mount them in the rear mounting hole.
