Shift Control Lever Assembly: Removal

Disconnect the negative battery cable.
Remove the floor console. See FLOOR CONSOLE .
Disconnect the electrical switch connectors.

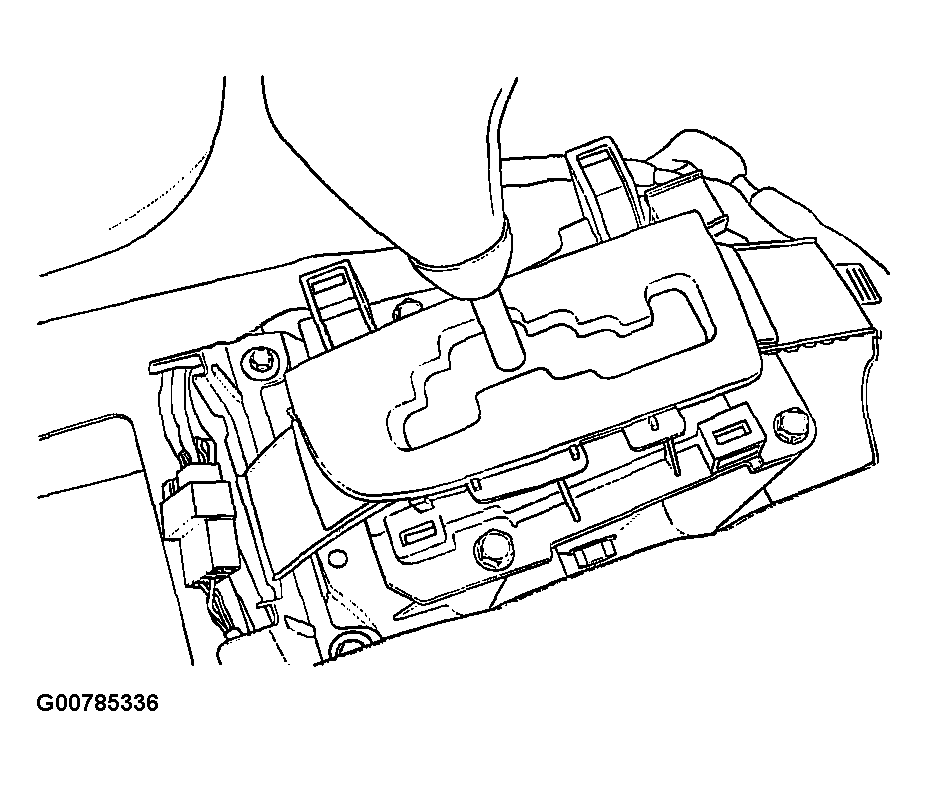

Fig 1: Disconnecting Electrical Switch Connectors
Courtesy of SUZUKI OF AMERICA CORP.
Remove the shift control cable adjuster pinch nut.
Remove the cable from the bracket.

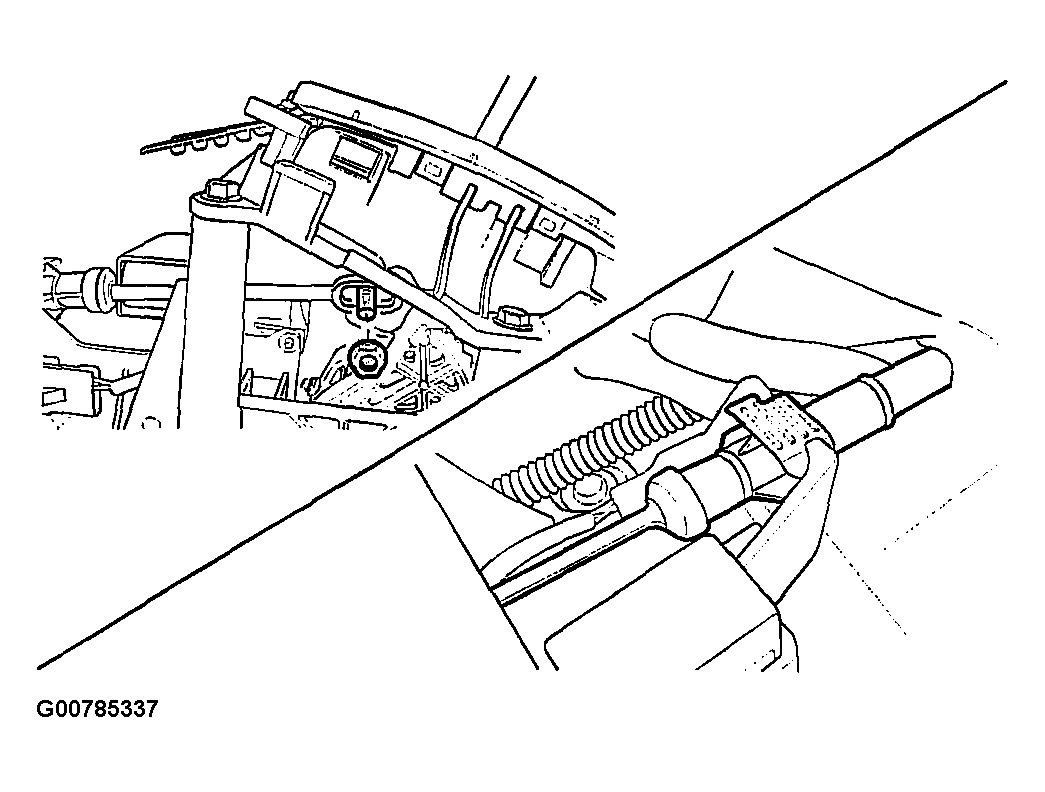

Fig 2: Removing Cable From The Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Remove the bolts and nuts holding the shift control assembly to the floor panel.
Remove the shift control assembly.

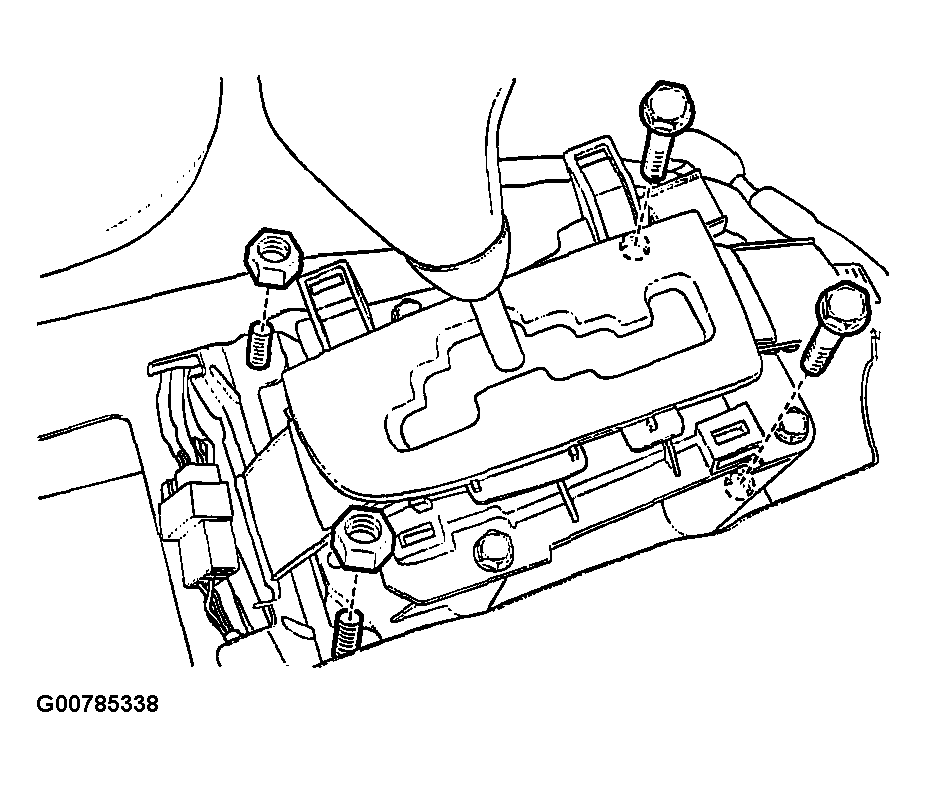

Fig 3: Removing Shift Control Assembly
Courtesy of SUZUKI OF AMERICA CORP.
