Shift Cable: Installation

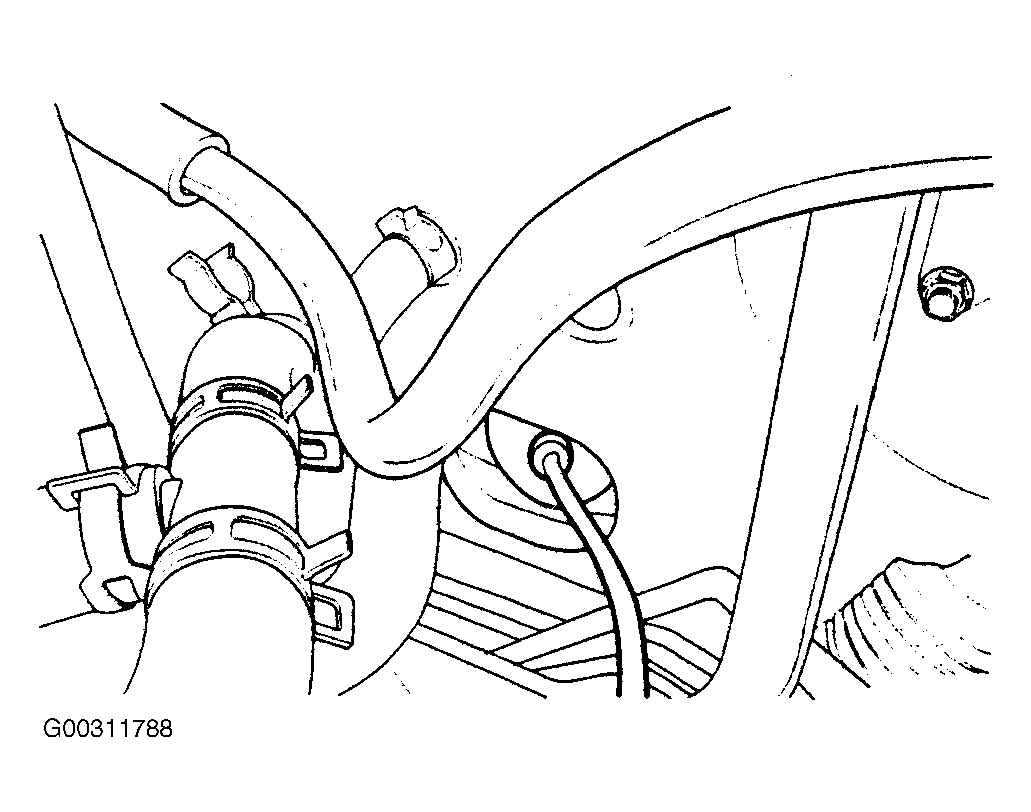

  1. Install the shift control cable into the fire wall of the vehicle.
  2. Install the shift control cable onto the transaxle mount. See Figure .
  3. Install the shift control cable onto the shift control assembly.

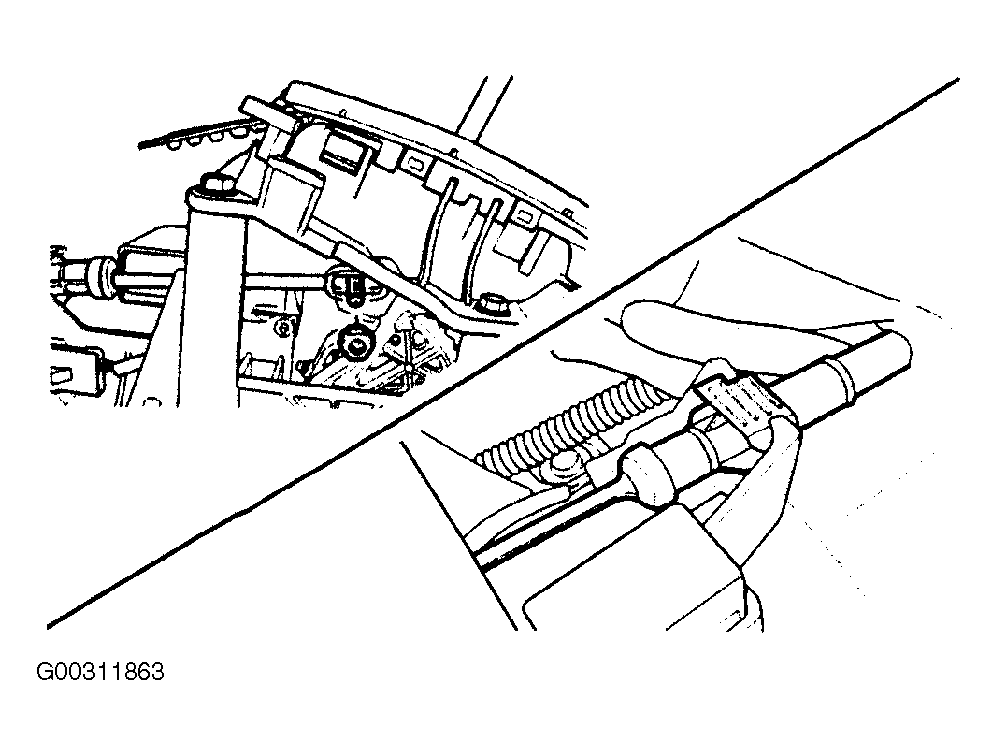

  4. Install the shift control cable adjuster pinch nut. Tighten the nut to the specifications. See TORQUE SPECIFICATIONS  . See Figure .
  5. Install the clip to the shift control cable at the transaxle mount connection.
  6. Install the clip to the select lever connection on the transaxle case.
  7. Adjust the shift control cable. See SHIFT CONTROL CABLE  under ADJUSTMENTS.
  8. Connect the negative battery cable.
