Park/Neutral Start Switch: Removal

Disconnect the negative battery cable.
Disconnect the park/neutral start switch electrical connector.
Disconnect the shift control cable and the retaining clip. See Fig 1 .
Remove the shift lever nut and the shift lever. See Fig 2 .
Remove the park/neutral start switch. See Fig 3 .

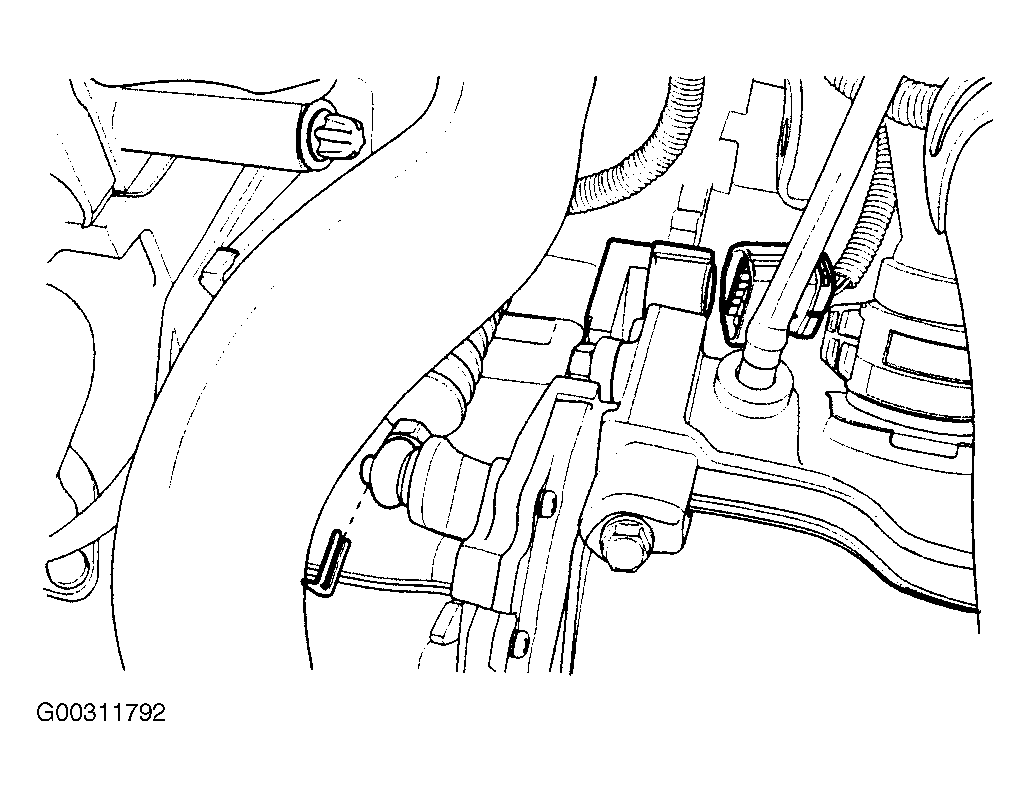

Fig 1: Disconnecting Shift Control Cable And Retaining Clip

G00311792

Courtesy of SUZUKI OF AMERICA CORP.

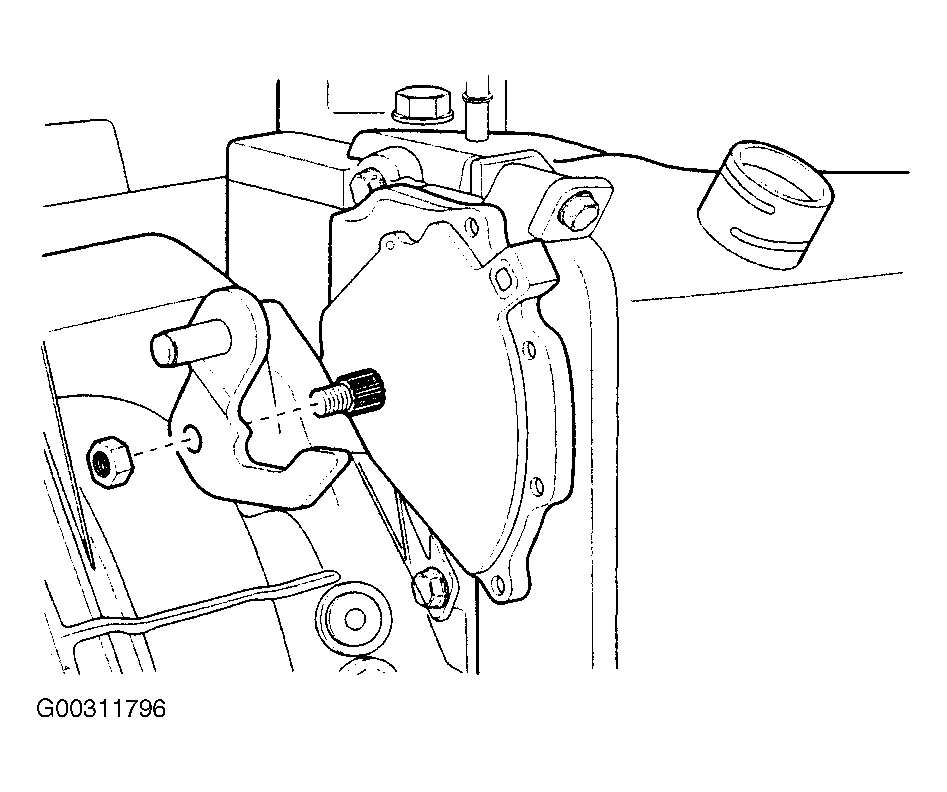

Fig 2: Removing Shift Lever Nut And Shift Lever

G00311796

Courtesy of SUZUKI OF AMERICA CORP.

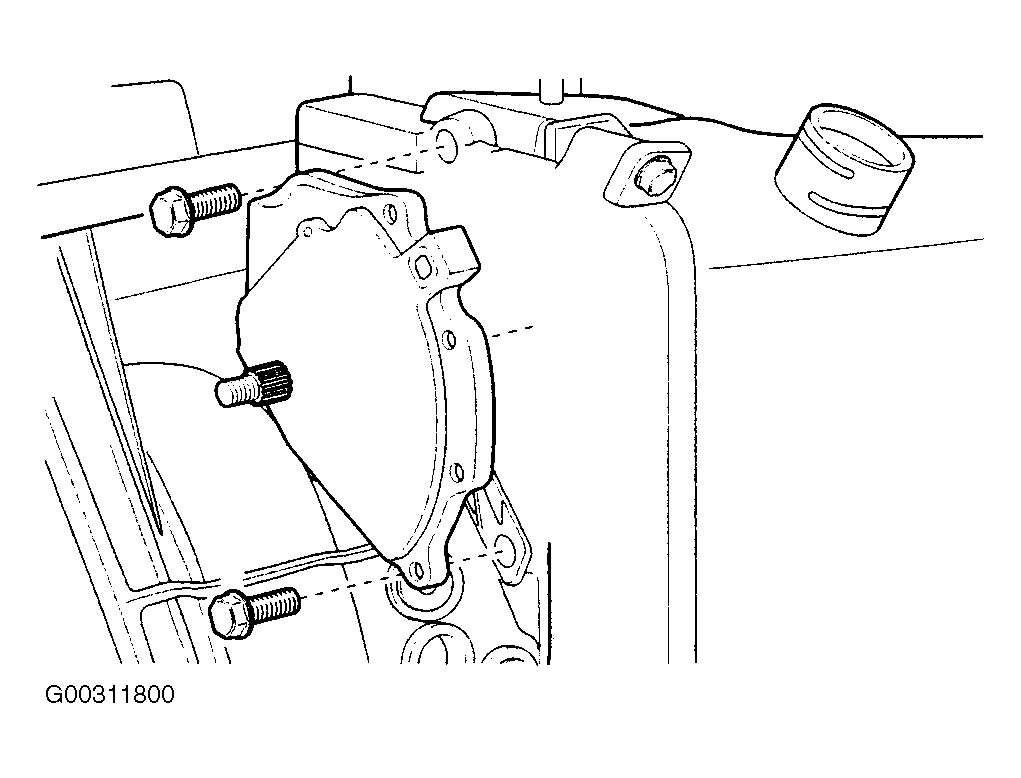

Fig 3: Removing Park/Neutral Start Switch

G00311800

Courtesy of SUZUKI OF AMERICA CORP.
