Oil Cooler Pipes/Hoses: Removal

CAUTION: Place a drip pan under the hoses to catch the fluid that will run out of the lines.
  1. Disconnect the negative battery cable.
  2. Raise and suitably support the vehicle.
  3. Remove the engine under cover.
  4. Remove the oil cooler outlet pipe bolt from the right lower side of the radiator.
  5. Remove the oil cooler outlet pipe bracket bolt. See Fig 1 .
  6. Remove the oil cooler outlet pipe bolt from the transaxle side.
  7. Remove the oil cooler outlet pipe assembly. See Fig 2 .
  8. Remove the oil cooler inlet pipe bolt from the left lower side of the radiator. See Fig 3 .
  9. Remove the oil cooler pipe bolt from the transaxle side.
  10. Remove the oil cooler inlet pipe assembly.

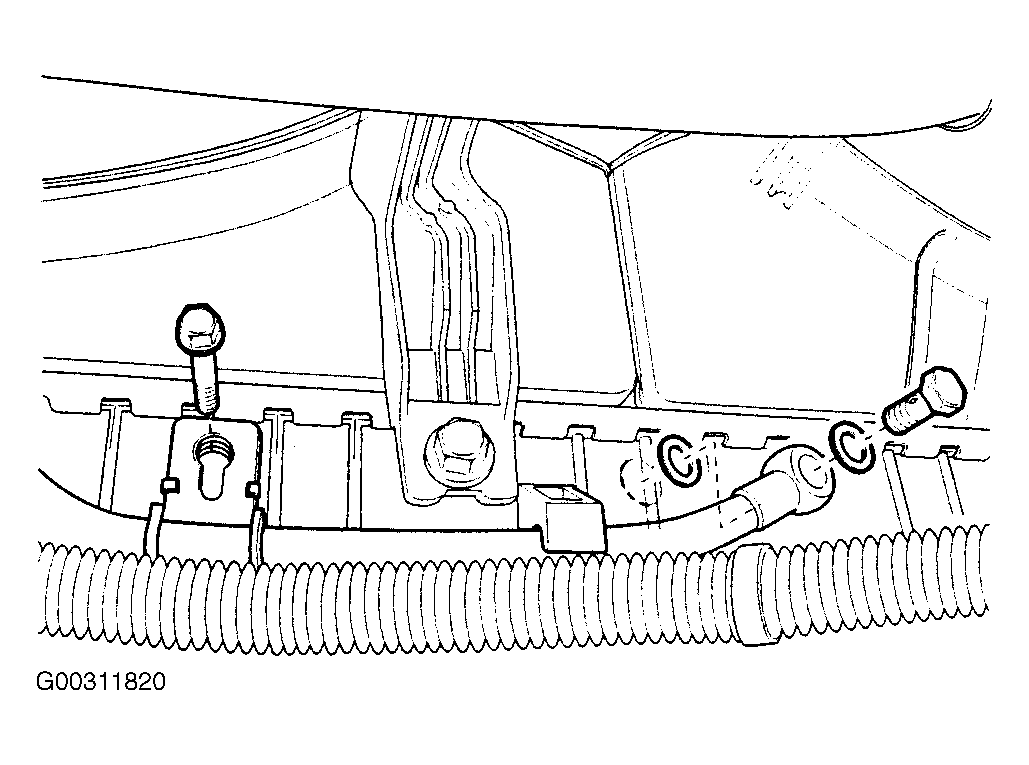

Fig 1: Removing Oil Cooler Outlet Pipe Bracket Bolt
G00311820Courtesy of SUZUKI OF AMERICA CORP.

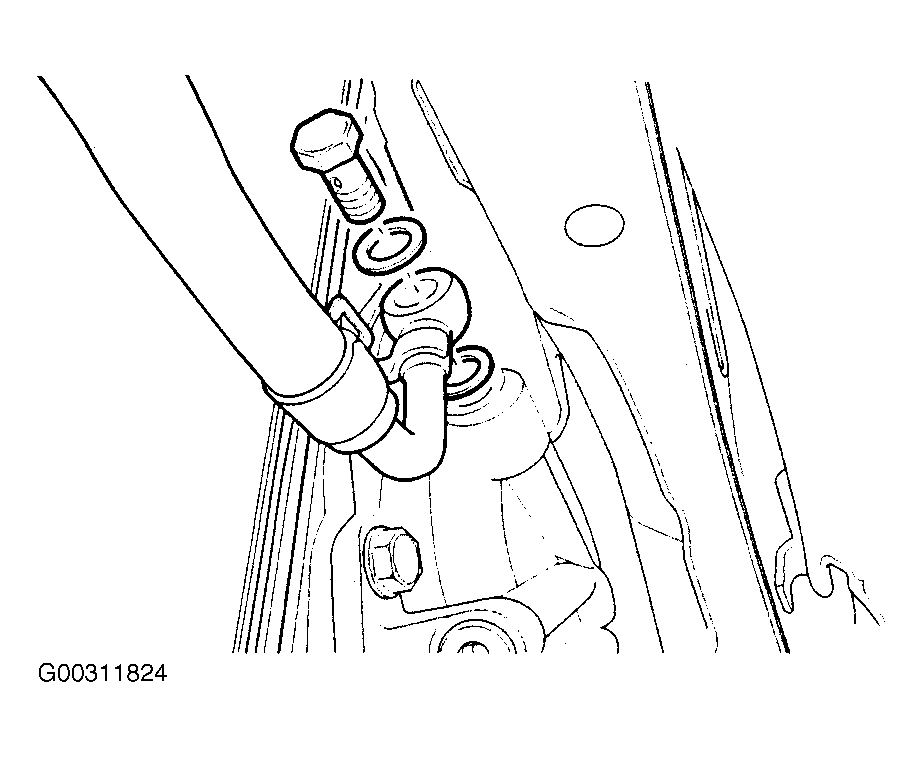

Fig 2: Removing Oil Cooler Outlet Pipe Assembly
G00311824Courtesy of SUZUKI OF AMERICA CORP.
Fig 3: Removing Oil Cooler Inlet Pipe Bolt From Left Lower Side Of The Radiator
G00311828Courtesy of SUZUKI OF AMERICA CORP.
