Floor Console: Removal

  1. Disconnect the negative battery cable.
  2. Remove the screw from the rear portion of the floor console. See Fig 1 .
  3. Remove the screw from the front portion of the floor console.
  4. Remove the floor console.
  5. Disconnect the electrical connectors. See Fig 2 .
Fig 1: Removing Screw From The Rear Portion Of The Floor
G00311812Courtesy of SUZUKI OF AMERICA CORP.

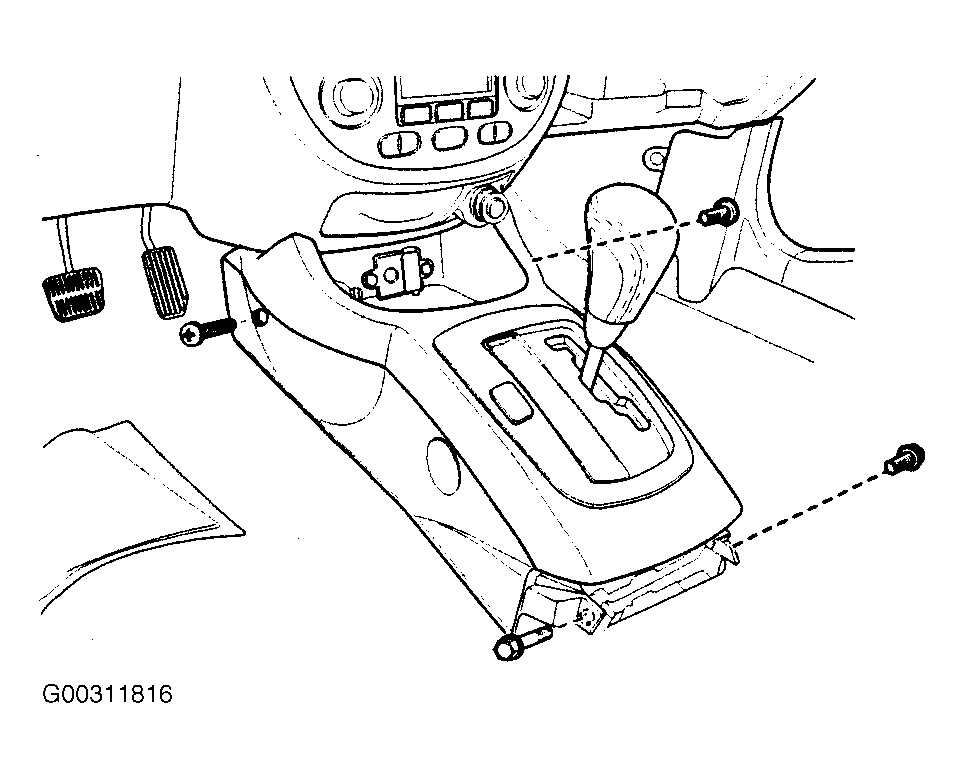

Fig 2: Removing Floor Console
G00311816Courtesy of SUZUKI OF AMERICA CORP.
