Control Valve Body Assembly: Removal
- Disconnect the negative battery cable.

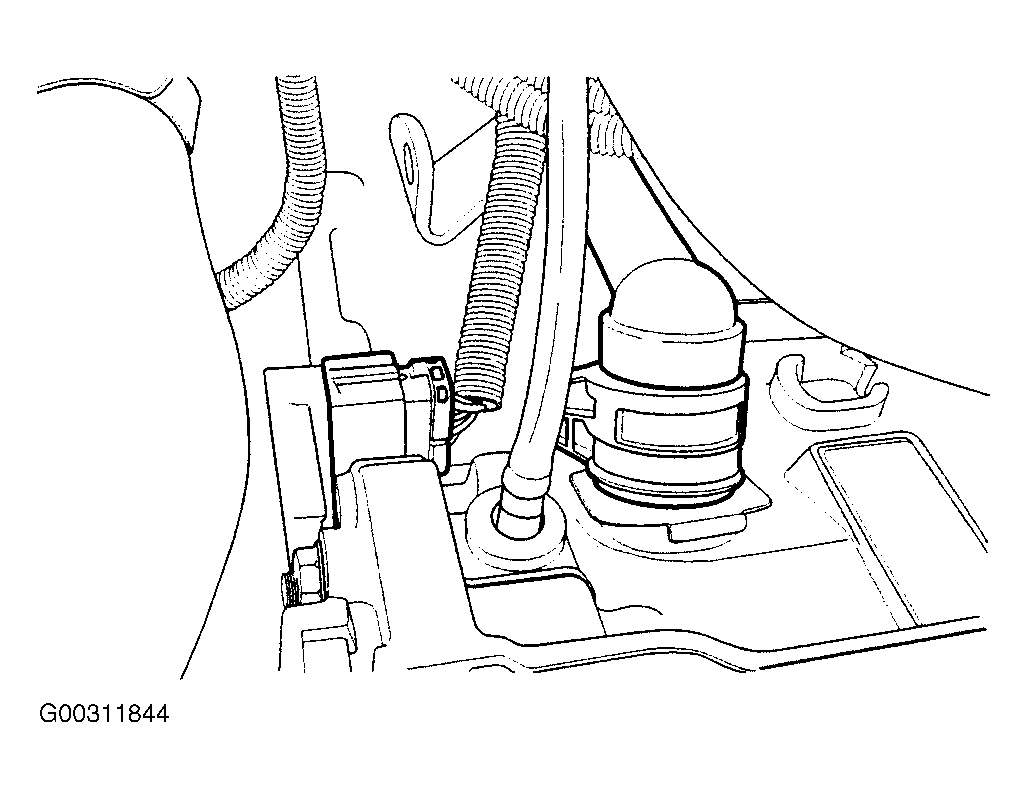

- Disconnect the transaxle wiring harness and the park/neutral position switch electrical connector. See Fig 1
.
- Raise and suitably support the vehicle.
- Remove the engine under cover.
- Remove the transaxle fluid drain plug using the plug removal/installer and drain the transaxle fluid. See Figure
.
- Remove the oil pan, oil pan gasket. See OIL PAN
.
- Remove the valve body mounting bolts.
- Remove the automatic transmission input speed sensor mounting bolt. See Fig 2
.
- Tilt the valve body.
- Remove the automatic transmission output speed sensor mounting bolt under the valve body assembly. See Fig 3
.
- Remove the control valve body. See Fig 4
.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
