Left Transaxle Mounting Bracket Removal & Installation: Removal: Installation

Install the left transaxle mount bracket cage bolts and nut.
Tighten
- Tighten the left transaxle mount bracket cage bolt (a) to 110 N.m (81 Ft. Lbs.).
- Tighten the left transaxle mount bracket cage bolt (b) to 65 N.m (48 Ft. Lbs.).
- Tighten the nut (c) to 65 N.m (48 Ft. Lbs.).

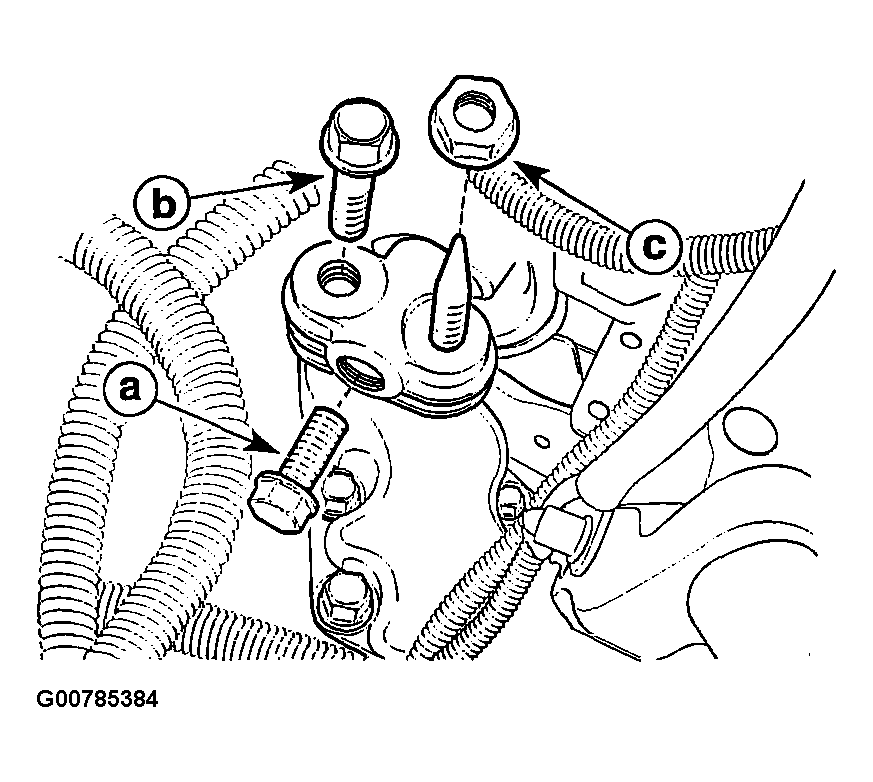

  Fig 1: Installing Left Transaxle Mount Bracket Cage Bolts & Nut
  Courtesy of SUZUKI OF AMERICA CORP.
Install the left transaxle mounting bolts to 48 N.m (35 Ft. Lbs.).

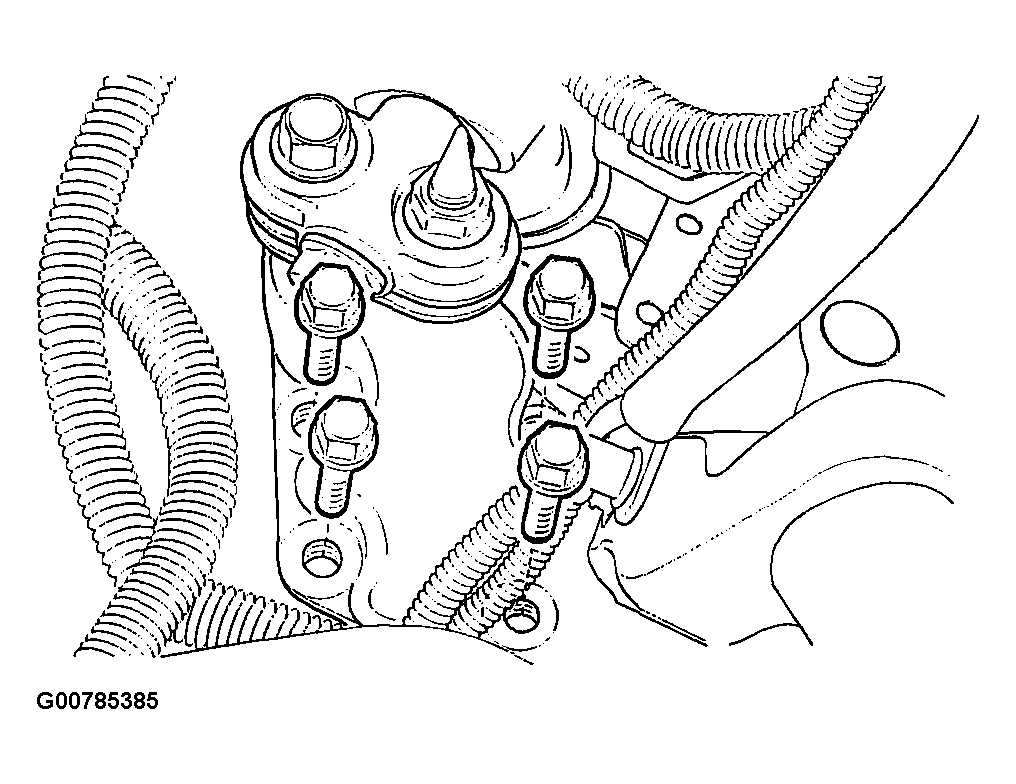

Fig 2: Installing Left Transaxle Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the engine support fixture DW110-060.

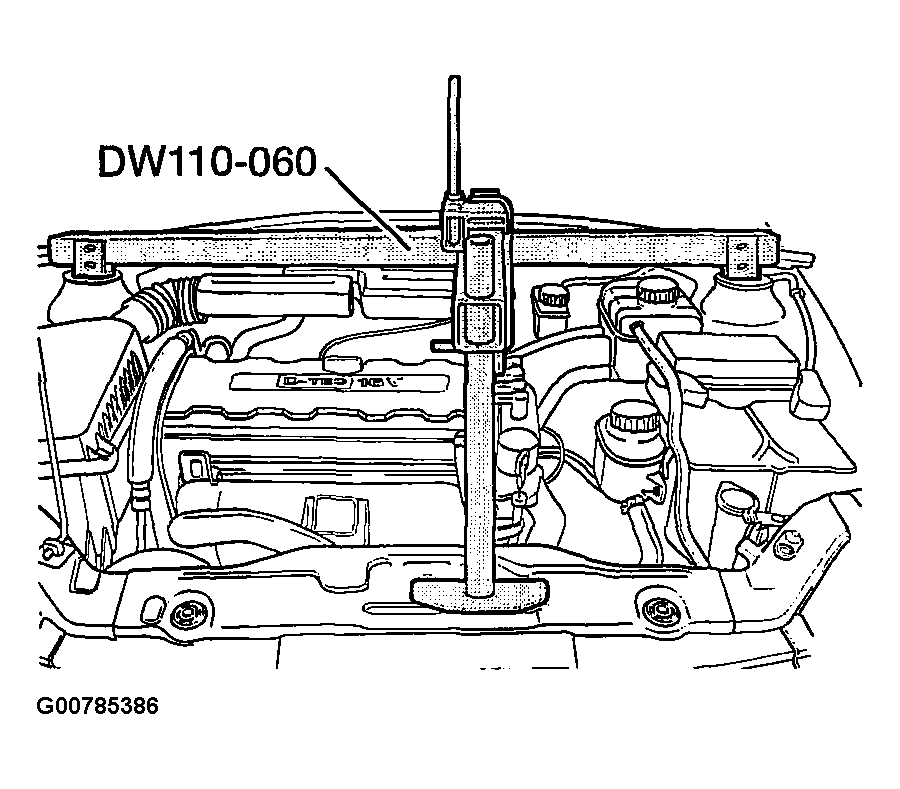

Fig 3: Removing Engine Support Fixture
Courtesy of SUZUKI OF AMERICA CORP.
Install the battery.
