Tightening Torque Specifications

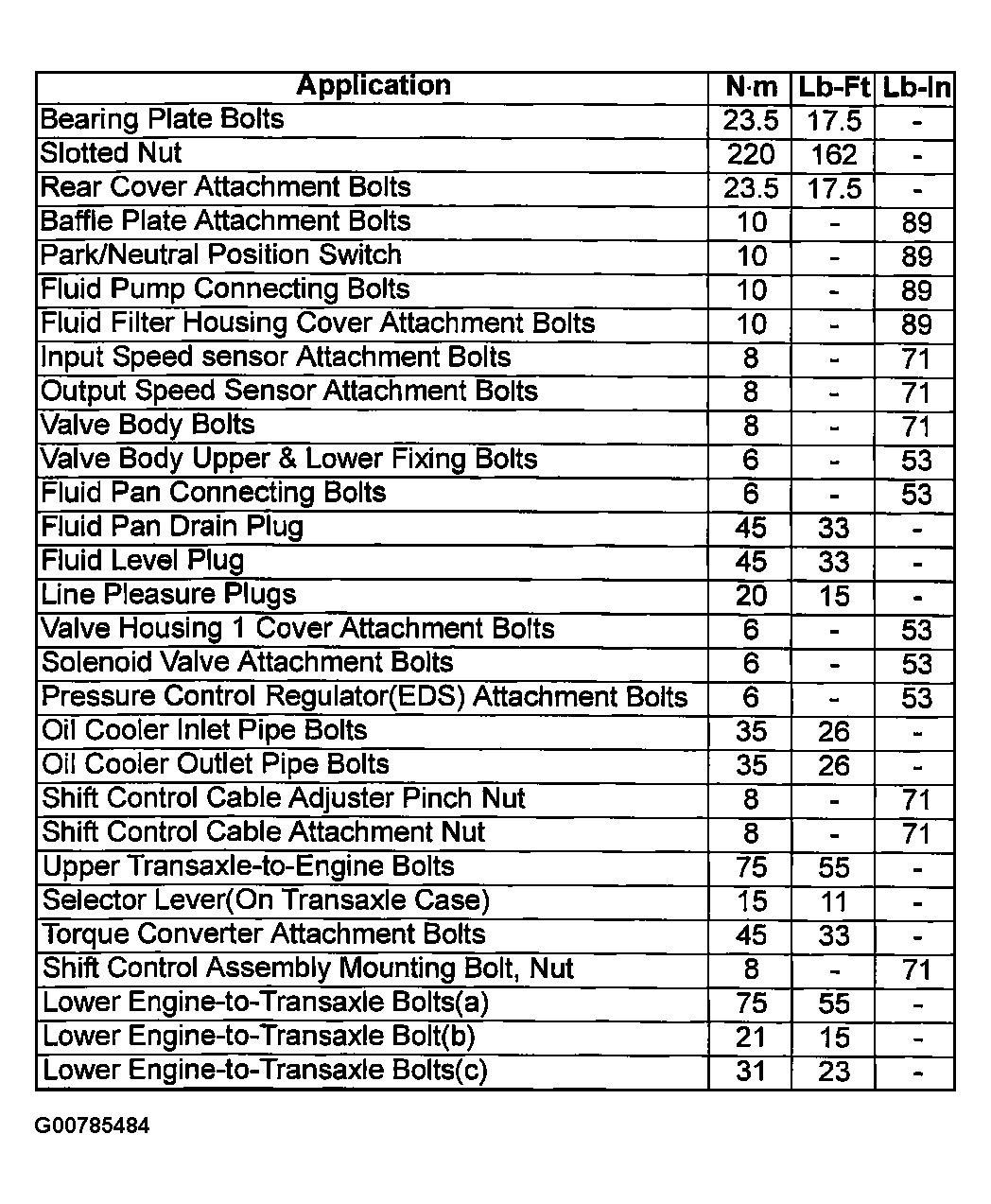

Fig 1: Torque Specifications Table (1 Of 2)
G00785484Courtesy of SUZUKI OF AMERICA CORP.

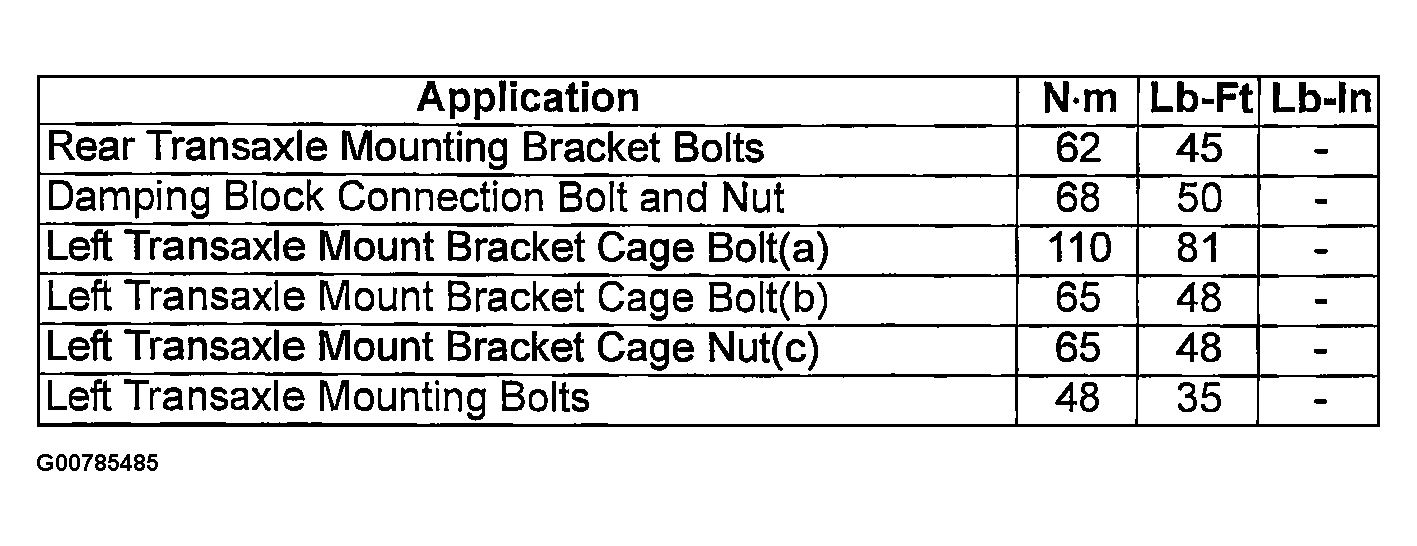

Fig 2: Torque Specifications Table (2 Of 2)
G00785485Courtesy of SUZUKI OF AMERICA CORP.
