Solenoid Valve, Clutch and Brake Operation

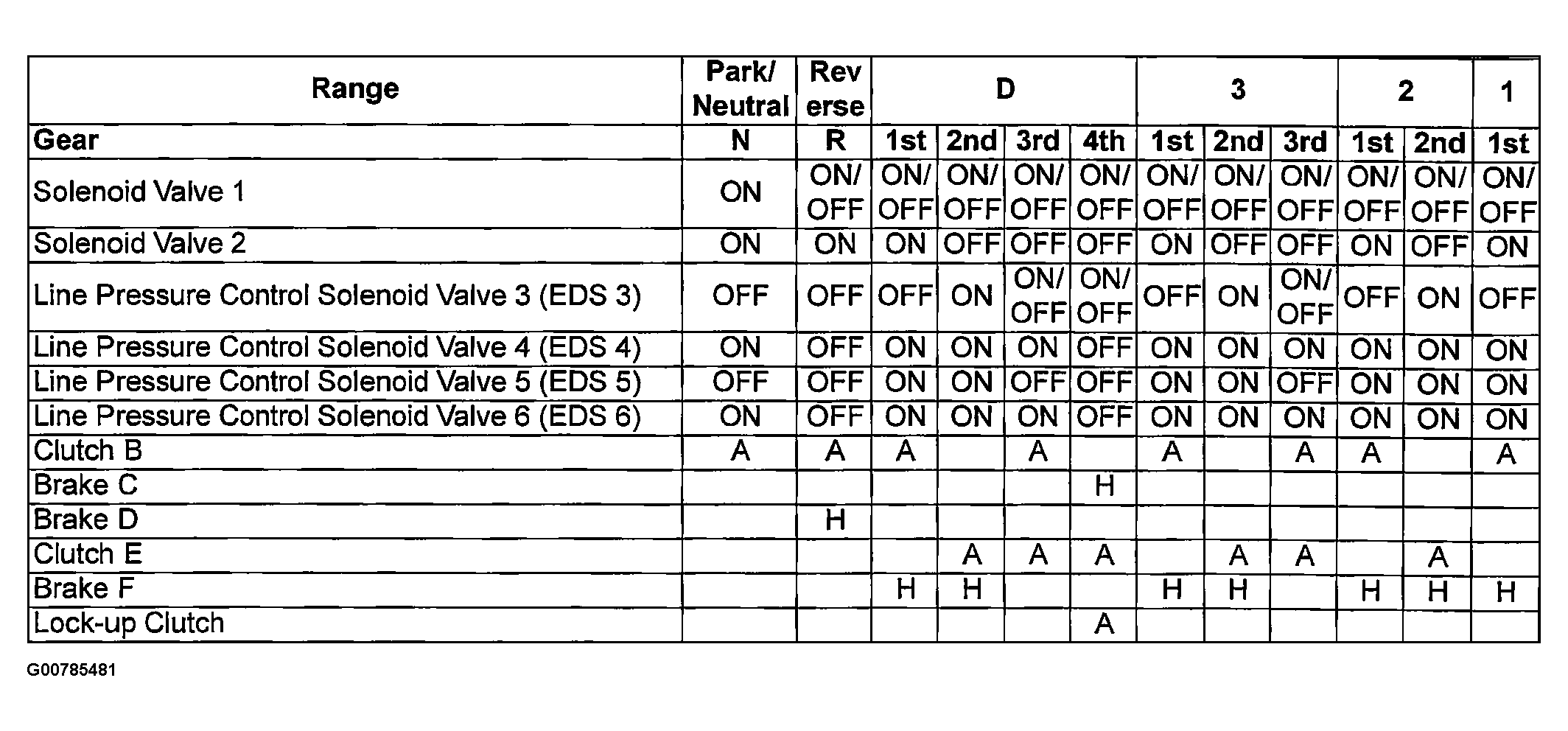

Fig 1: Identifying Solenoid Valve, Clutch & Brake Operation Diagnostic Chart (1 of 2)
G00785481Courtesy of SUZUKI OF AMERICA CORP.

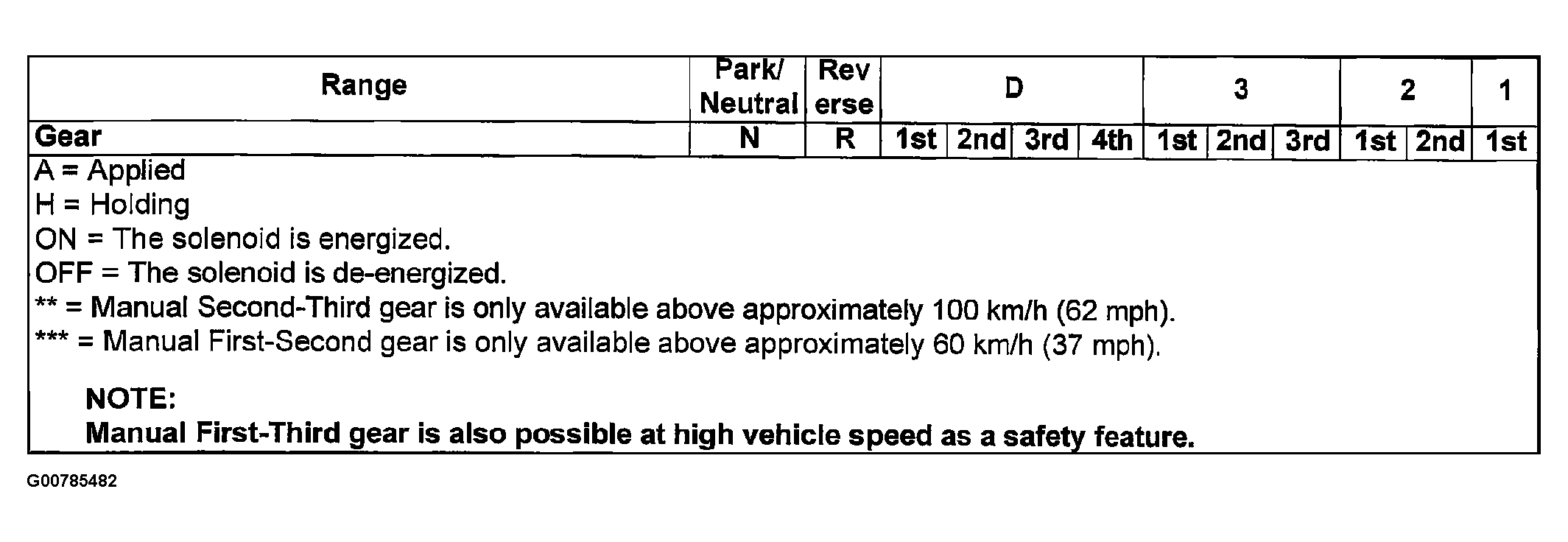

Fig 2: Identifying Solenoid Valve, Clutch & Brake Operation Diagnostic Chart (2 of 2)
G00785482Courtesy of SUZUKI OF AMERICA CORP.
