Tools Required

DW260-020 Transaxle Support Fixture

1. Install the transaxle support fixture DW260-020 onto the transaxle.

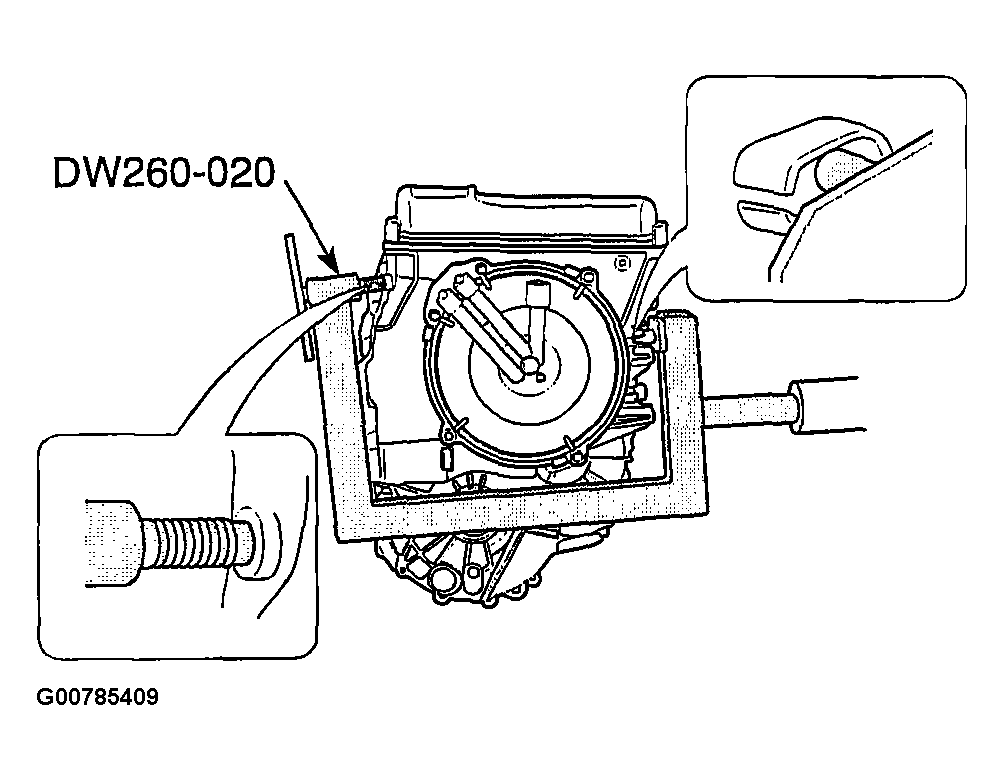

   Fig 1: Installing Transaxle Support Fixture Onto The Transaxle

   Courtesy of SUZUKI OF AMERICA CORP.
2. Torque the support fixture bolts to 98 INCH Lbs. (11 N.m).
3. Position the transaxle with the rear cover facing up.
