Disassembly and Assembly

  1. Remove the transaxle assembly. Refer to TRANSAXLE ASSEMBLY REMOVAL AND INSTALLATION .
  2. Remove the torque converter assembly.

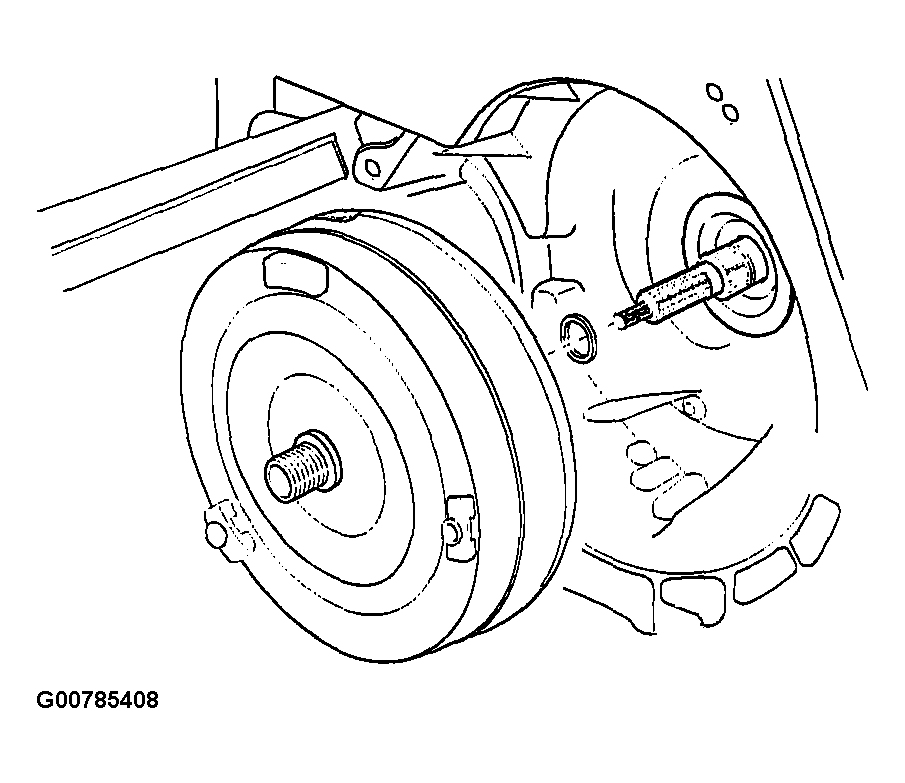

    Fig 1: Removing Torque Converter Assembly
    G00785408Courtesy of SUZUKI OF AMERICA CORP.
  3. Installation should follow the removal procedure in the reverse order.
