Shift Mechanism Disassembly and Assembly

Take out the select shaft clamping sleeve.

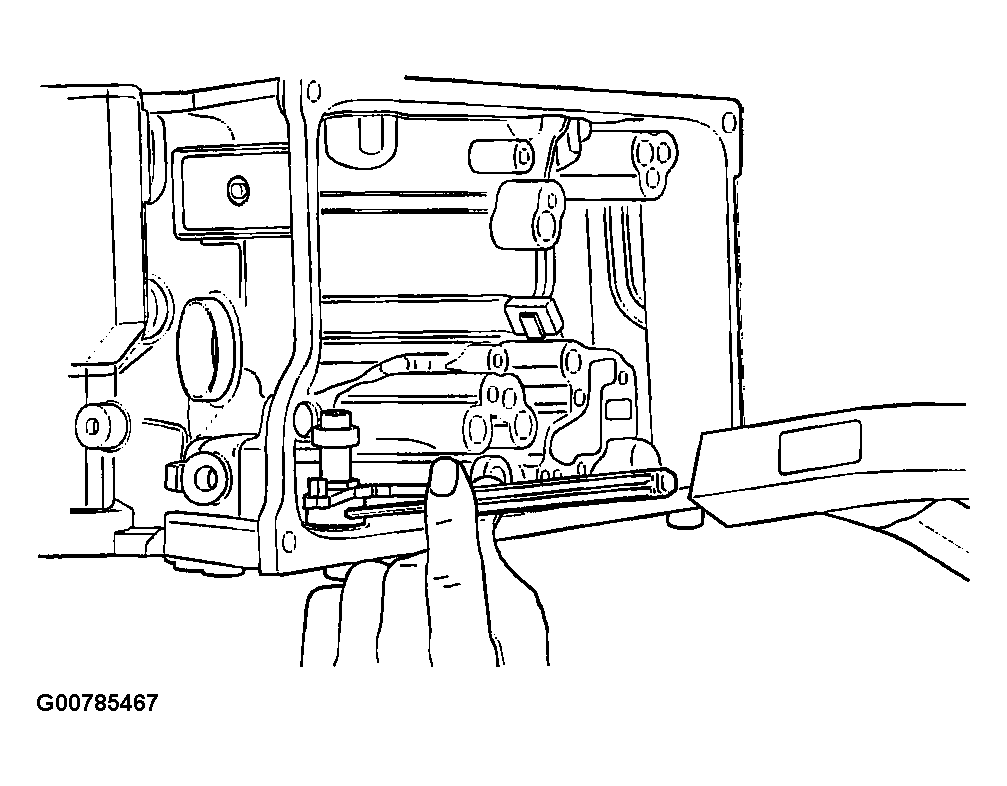

Fig 1: Taking Out Select Shaft Clamping Sleeve
Courtesy of SUZUKI OF AMERICA CORP.
Remove the shift mechanism.
- Shift mechanism is consist of select shaft, detent disc, connecting bar, stop bush.

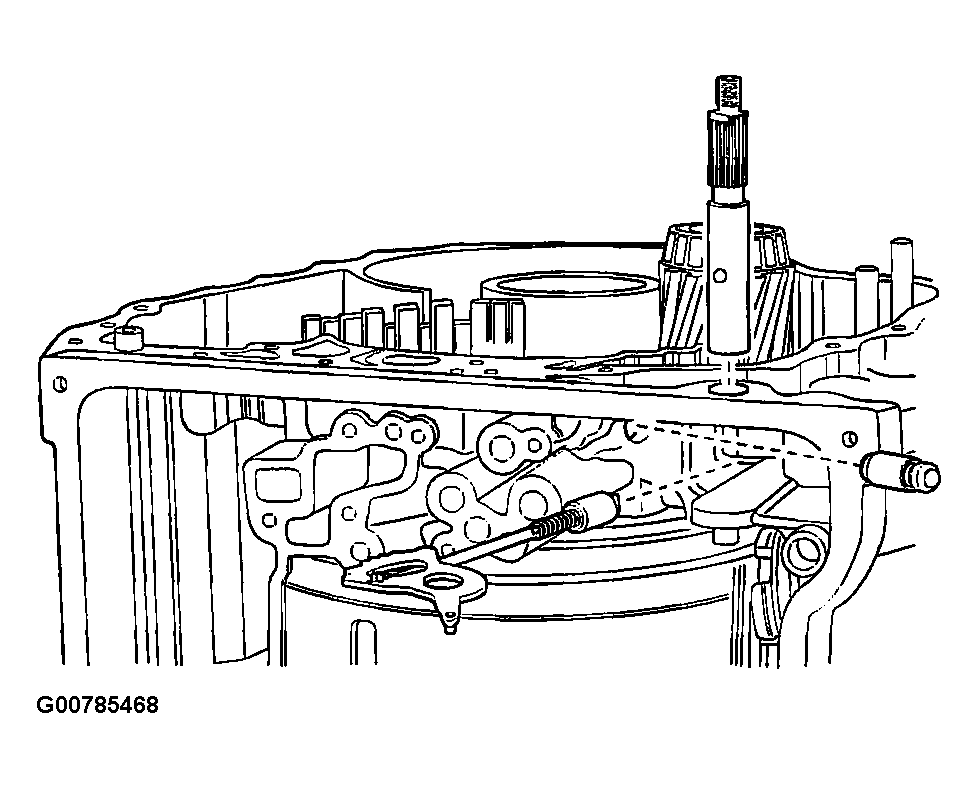

  Fig 2: Removing Shift Mechanism
  Courtesy of SUZUKI OF AMERICA CORP.
Installation should follow the removal procedure in the reverse order.
