Planetary Gear Set Disassembly & Assembly

Remove the clutch B/E.
Remove the rear sun gear.

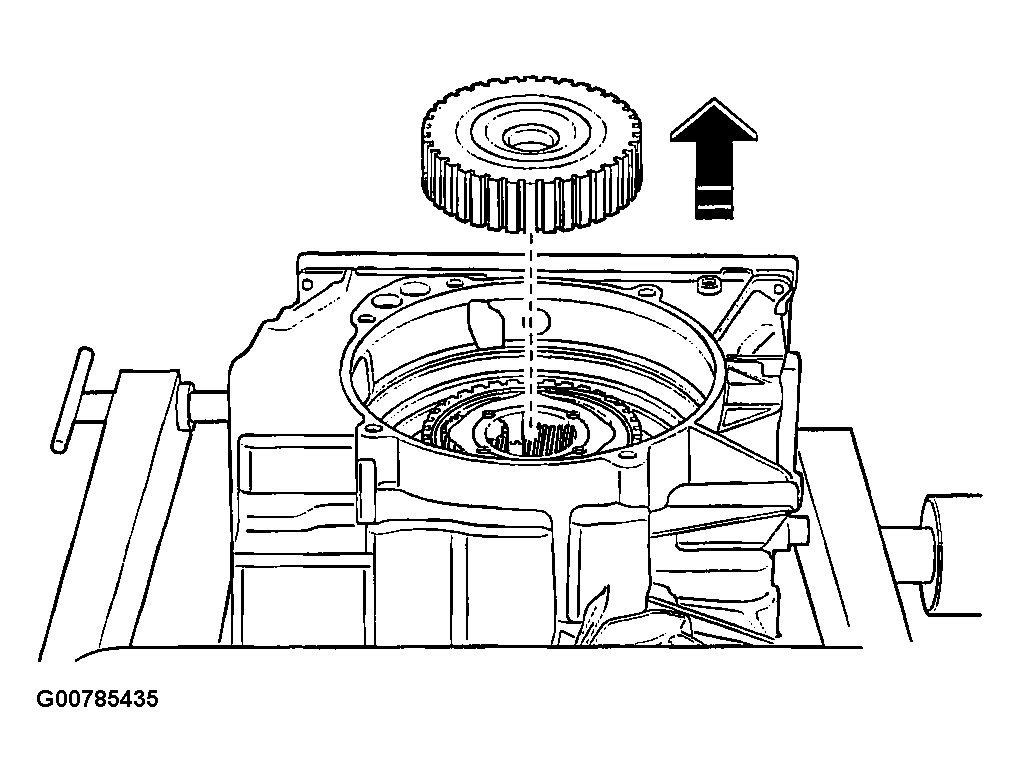

Fig 1: Removing Rear Sun Gear
Courtesy of SUZUKI OF AMERICA CORP.
Remove the planetary gear set.

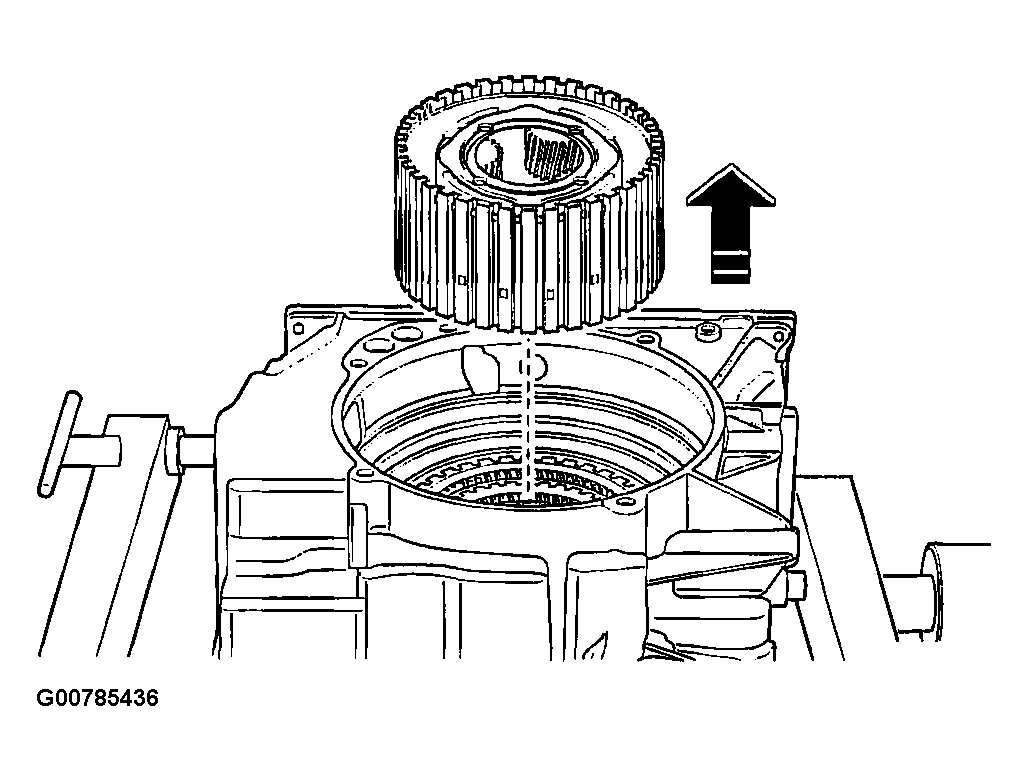

Fig 2: Removing Planetary Gear Set
Courtesy of SUZUKI OF AMERICA CORP.
Remove snap ring from front ring gear.

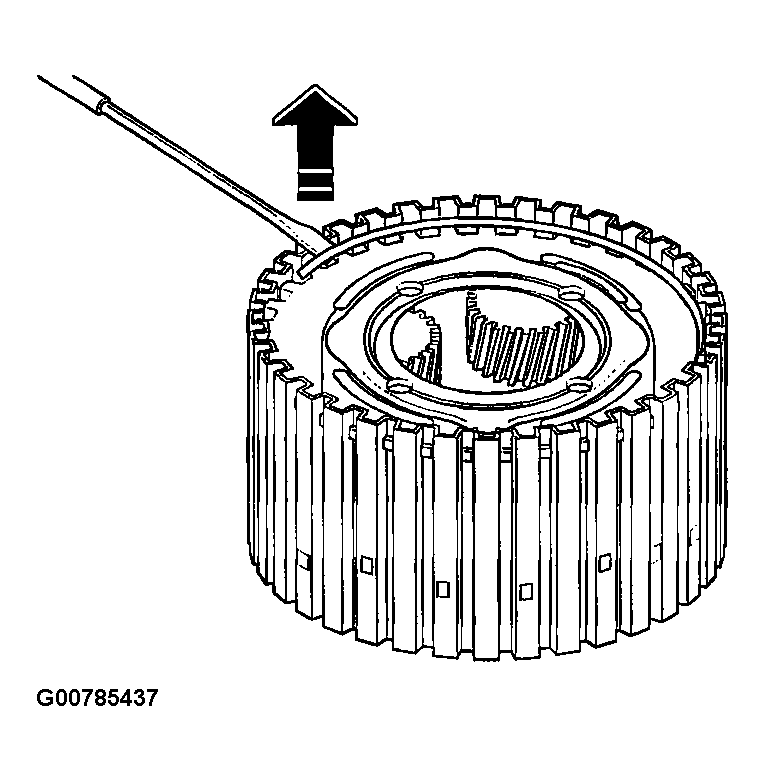

Fig 3: Removing Snap Ring From Front Ring Gear
Courtesy of SUZUKI OF AMERICA CORP.
Take out rear planetary gear set.

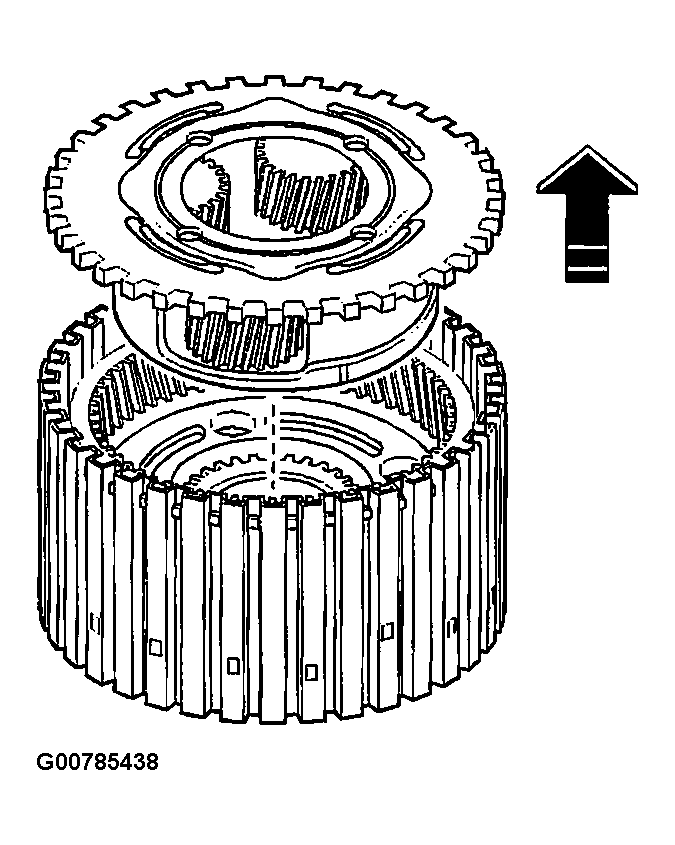

Fig 4: Taking Out Rear Planetary Gear Set
Courtesy of SUZUKI OF AMERICA CORP.
Remove the axial needle bearing.

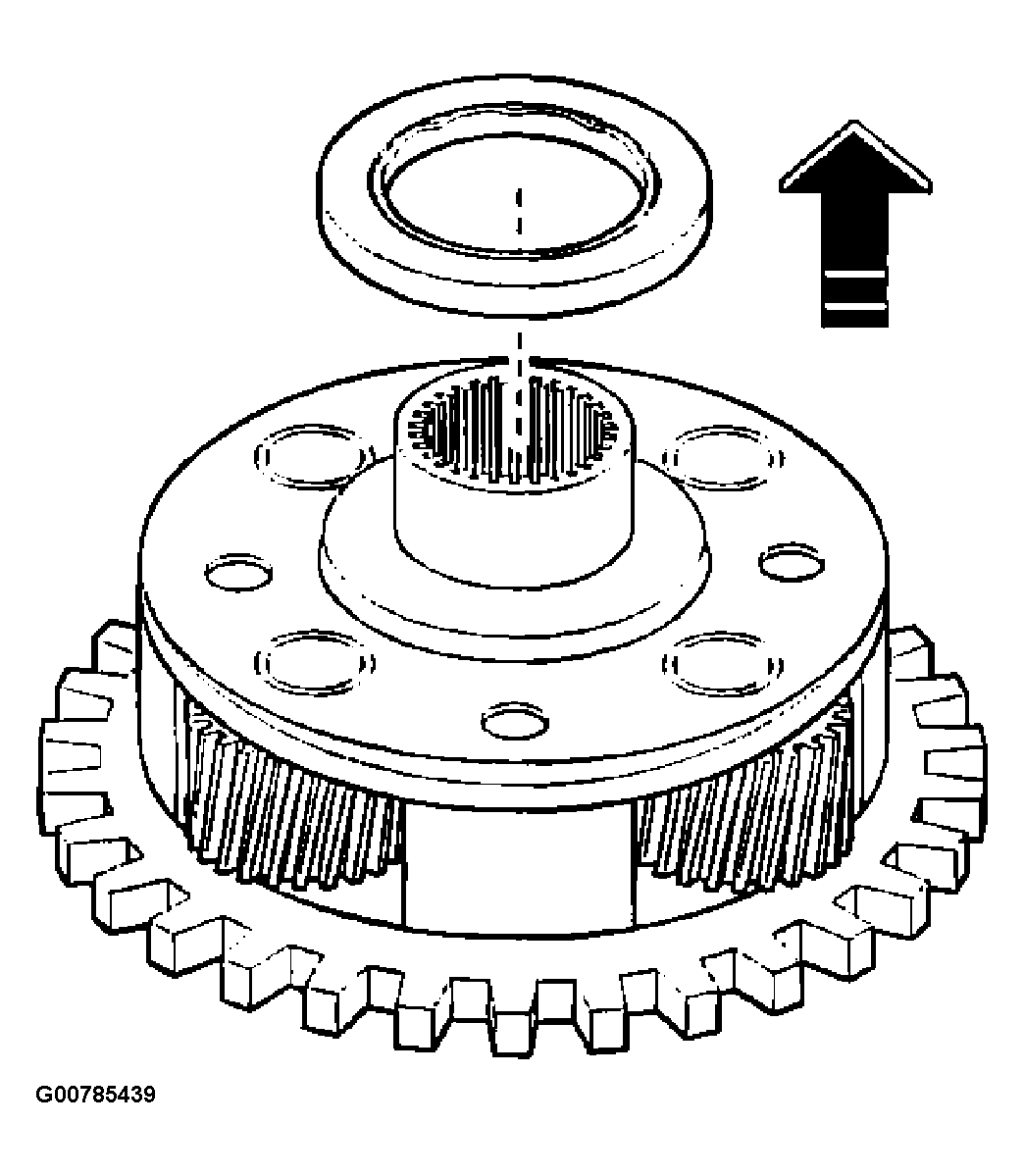

Fig 5: Removing Axial Needle Bearing
Courtesy of SUZUKI OF AMERICA CORP.
Take out front gear set with rear ring gear, front sun gear and oil trays.

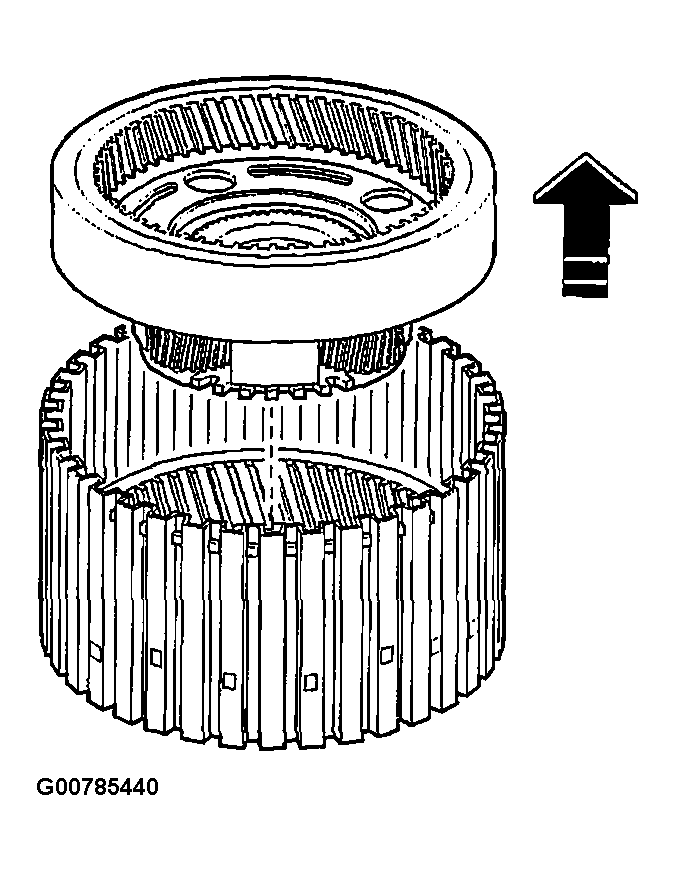

Fig 6: Taking Out Front Gear Set With Rear Ring Gear, Front Sun Gear & Oil Trays
Courtesy of SUZUKI OF AMERICA CORP.
Take oil trays and front sun gear off the planetary gear set.

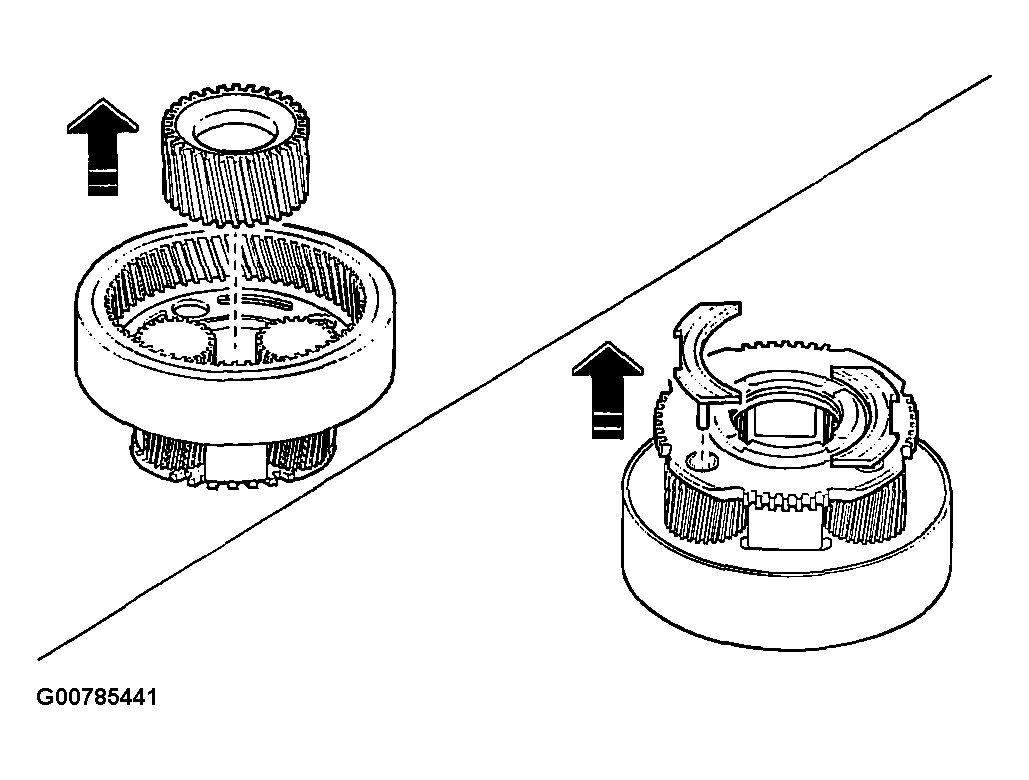

Fig 7: Taking Out Oil Trays & Front Sun Gear Off The Planetary Gear Set
Courtesy of SUZUKI OF AMERICA CORP.
Installation should follow the removal procedure in the reverse order.
