Oil Pump Assembly Disassembly and Assembly

Remove the oil pump housing bolts.
Using the plastic hammer. Take out the oil pump housing.
Installation Notice

Tighten

Tighten the oil pump housing bolts 89 INCH Lbs. (10 N.m).

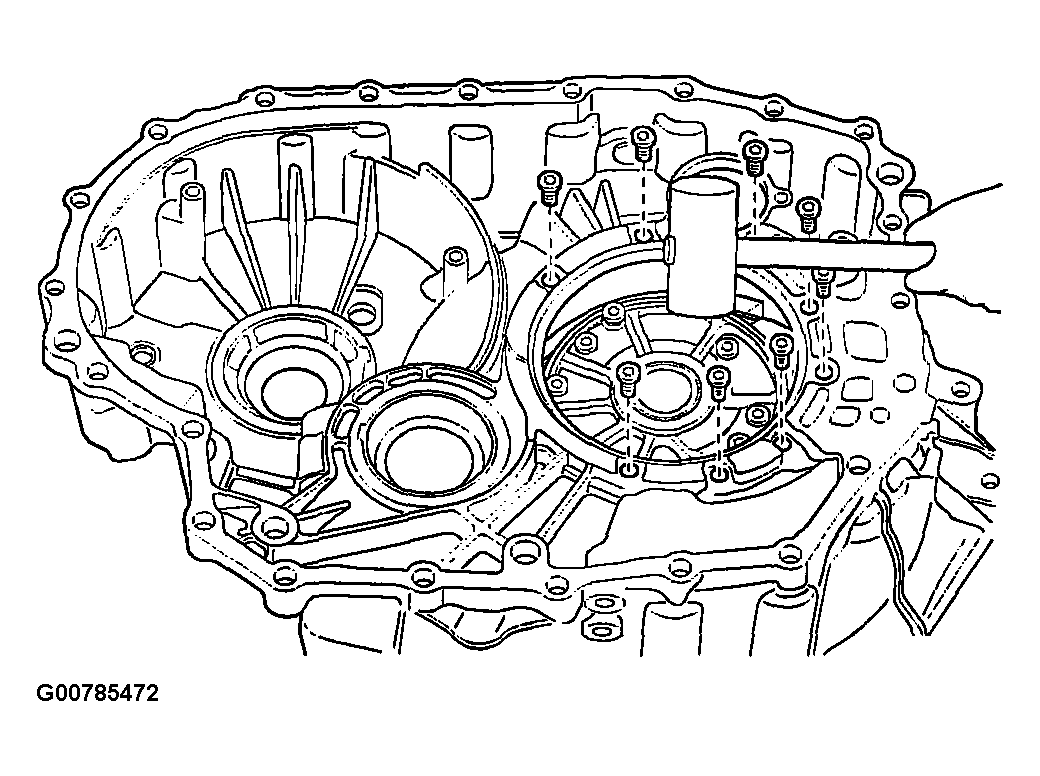

Fig 1: Removing Oil Pump Housing Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the stator shaft bolts.

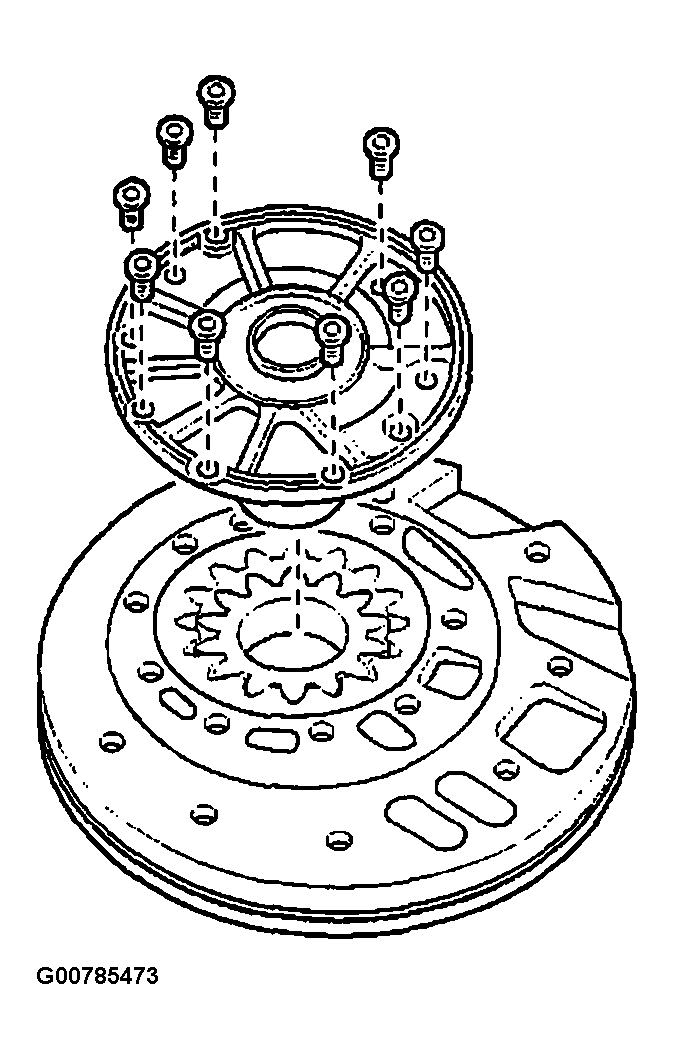

Fig 2: Removing Stator Shaft Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Dismantle the oil pump gear, ring gear.

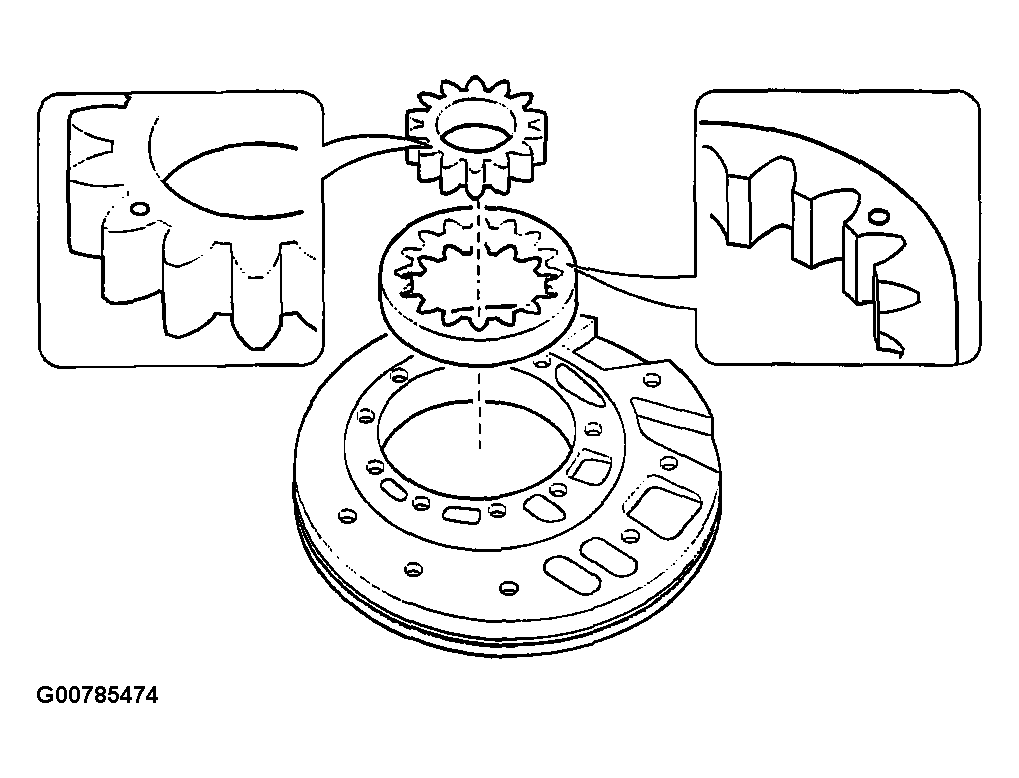

Fig 3: Dismantling Oil Pump Gear & Ring Gear
Courtesy of SUZUKI OF AMERICA CORP.
Installation should follow the removal procedure in the reverse order.
