Tools Required

DW 260-110 Brake F Disc Clearance Measuring Bar

1. Using a depth gauge, measuring from the transaxle housing sealing surfaces to the piston's disc support surface at two opposing points = M1, M2
2. Average the measurement values M1, M2 = BF
   • CALCULATION

     BF = (M1+M2)/2

   • CALCULATION

     M1 = 18.6 mm

     M2 = 18.8 mm

     BF = 18.7 mm

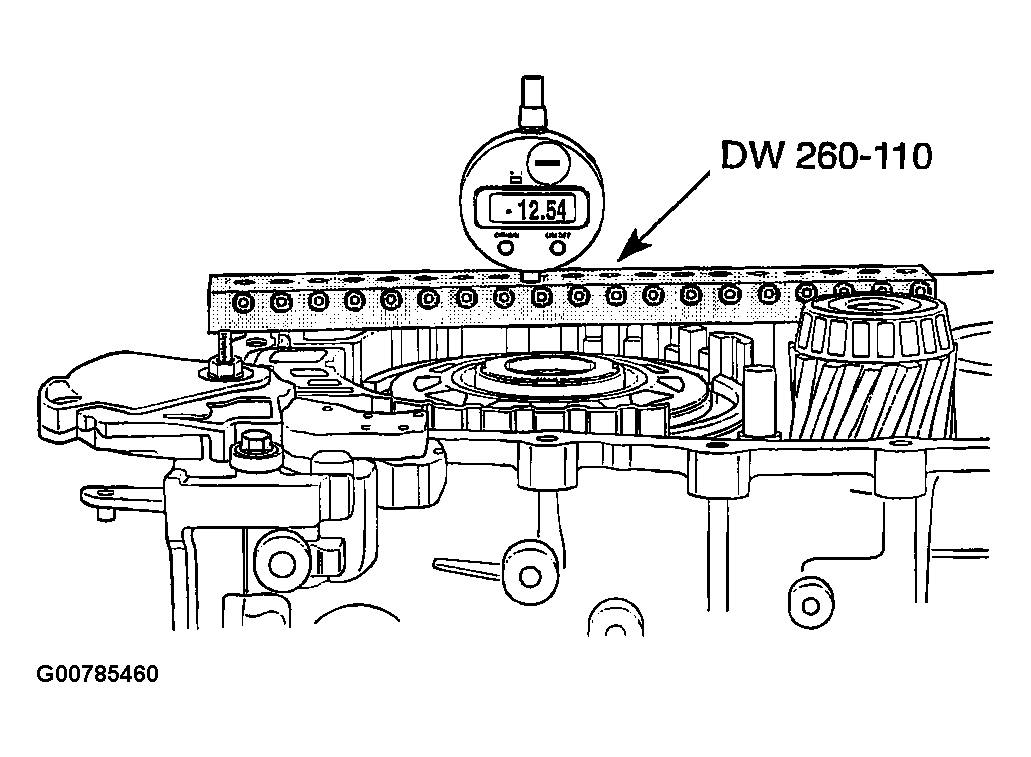

Fig 1: Measuring From Transaxle Housing Sealing Surfaces To The Piston's Disc Support Surface

Courtesy of SUZUKI OF AMERICA CORP.
