Tools Required

DW 260-100 Brake B/E Disc Thickness Measuring Fixture

1. Using disc thickness gauge, determine thickness ME for the disc set for clutch E (without the setting disc).
   • Measure the E disc set thickness.

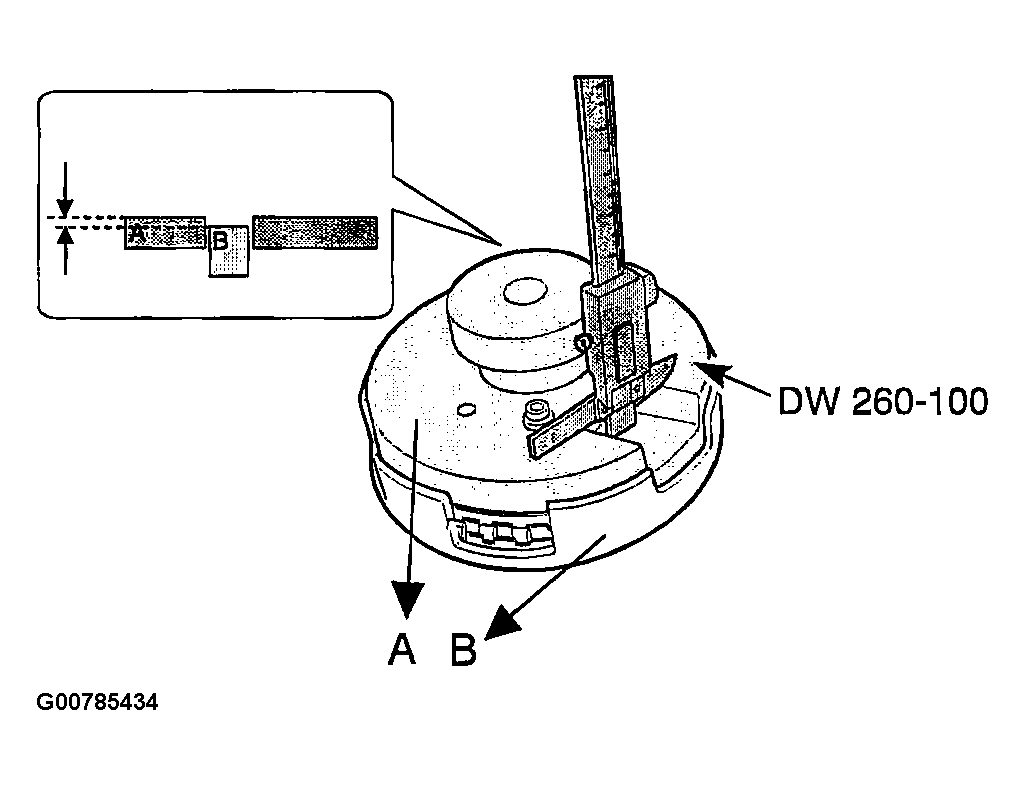

   Fig 1: Determining Thickness ME For The Disc Set For Clutch E

   Courtesy of SUZUKI OF AMERICA CORP.
2. Calculate the test dimension PE (PE = EE - ME)

   EE = installation space

   ME = E disc set thickness

   • EXAMPLE

     EE = 23.34 mm

     ME = 16.70 mm

     PE = 6.64 mm

3. Find the clutch E setting disc (clutch plate) thickness. Refer to the below table.
   Fig 2: Clutch E Setting Disc Thickness Table

   Courtesy of SUZUKI OF AMERICA CORP.

   PE is 6.64 mm so, the setting disc (clutch plate of E set) thickness is 5.0 mm.

4. Replace clutch E's setting disc. (5.0 mm)
