Tools Required

DW260-160 Brake C/D Snap Ring Remover/Installer

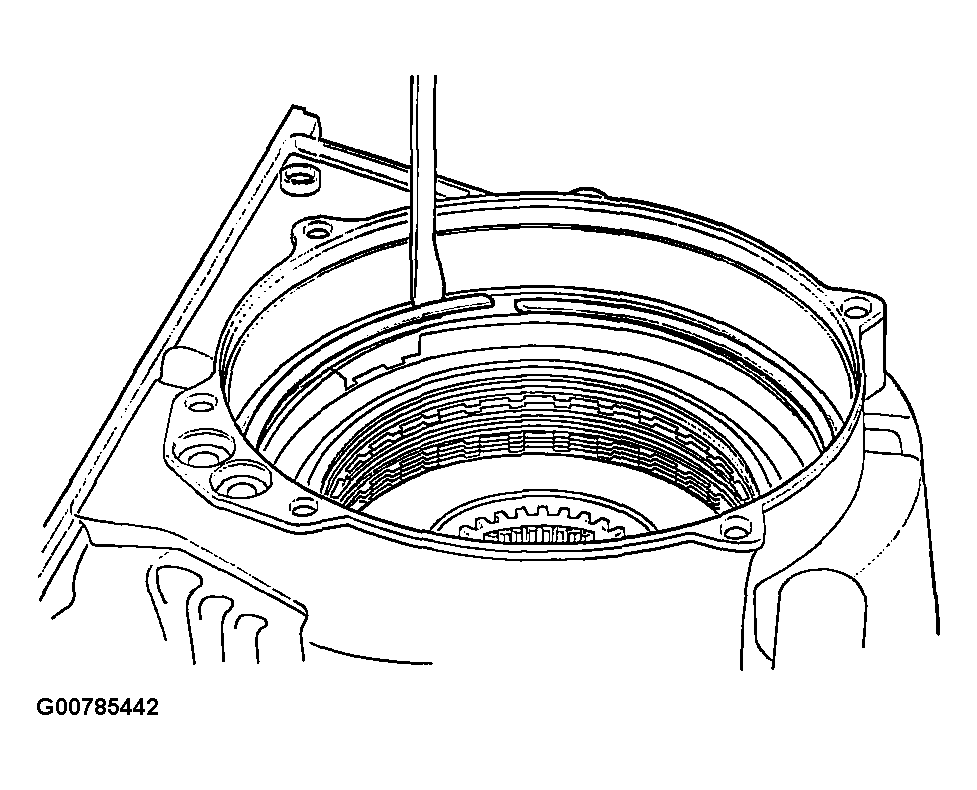

1. Take snap ring out of transaxle housing.
   Fig 1: Taking Snap Ring Out Of Transaxle Housing

   Courtesy of SUZUKI OF AMERICA CORP.

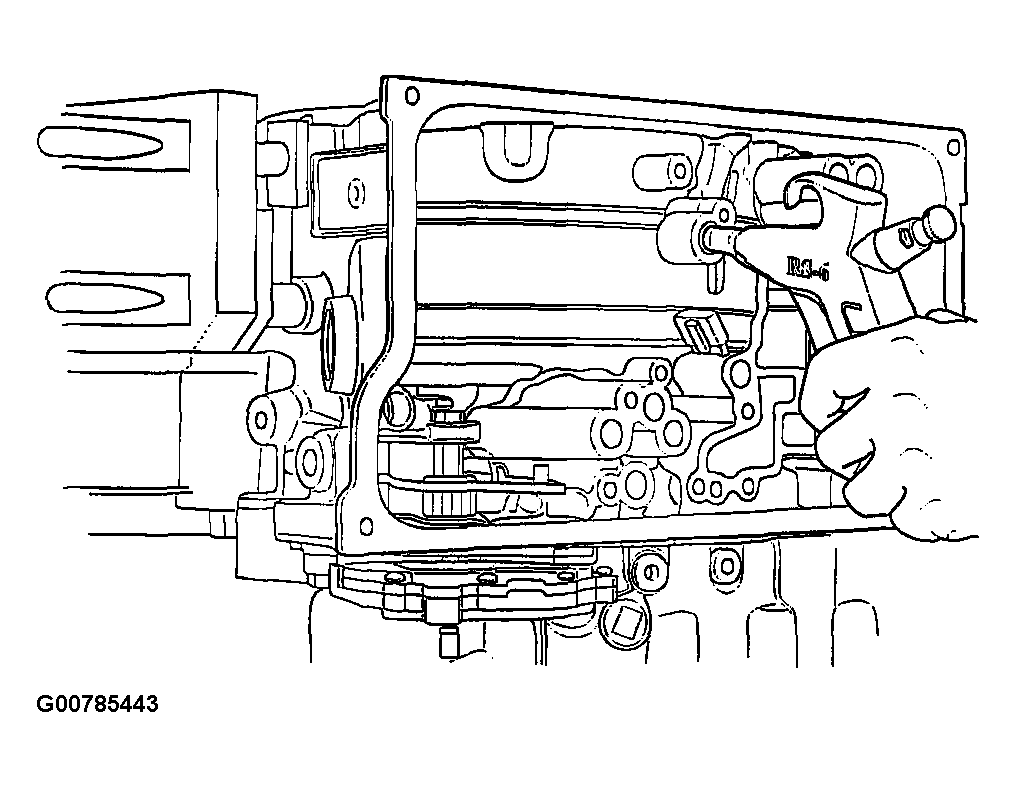

2. Release cylinder with piston C by applying compressed air to the feed bore.
   Fig 2: Releasing Cylinder With Piston C

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove cylinder with piston C.

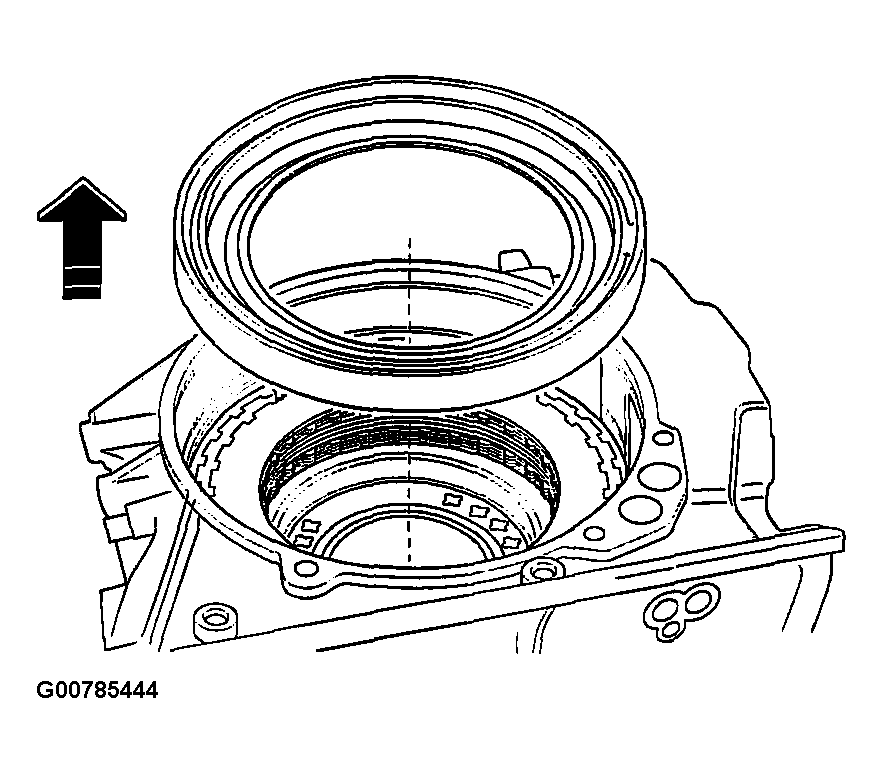

   Fig 3: Removing Cylinder With Piston C

   Courtesy of SUZUKI OF AMERICA CORP.

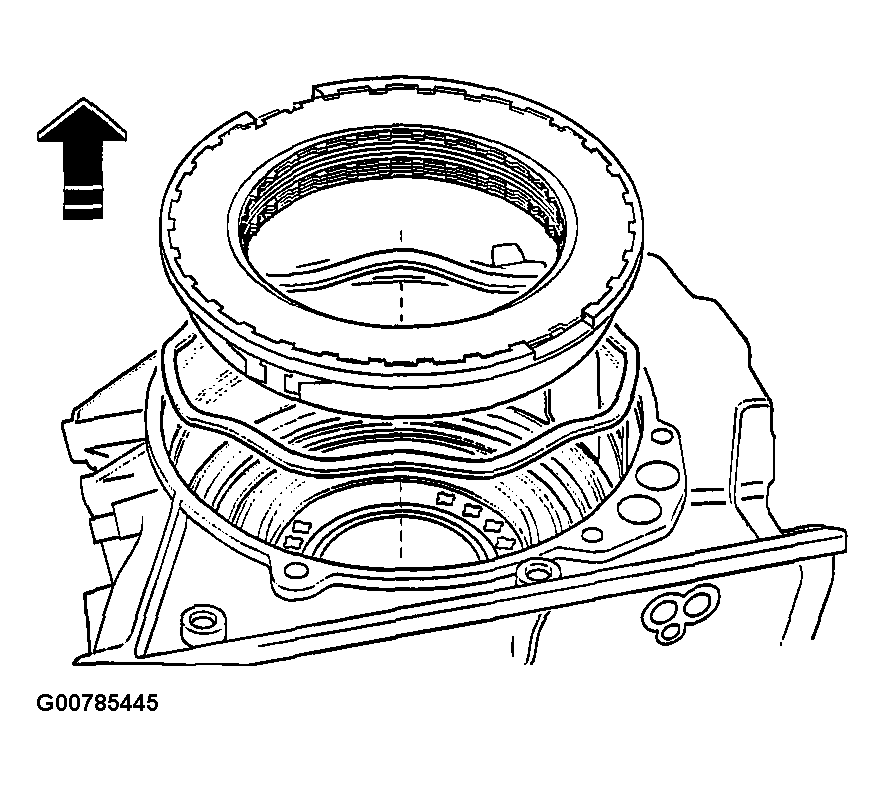

4. Take disc carrier C/D and spring disc out of transaxle housing.
   Fig 4: Taking Disc Carrier C/D & Spring Disc Out Of Transaxle Housing

   Courtesy of SUZUKI OF AMERICA CORP.

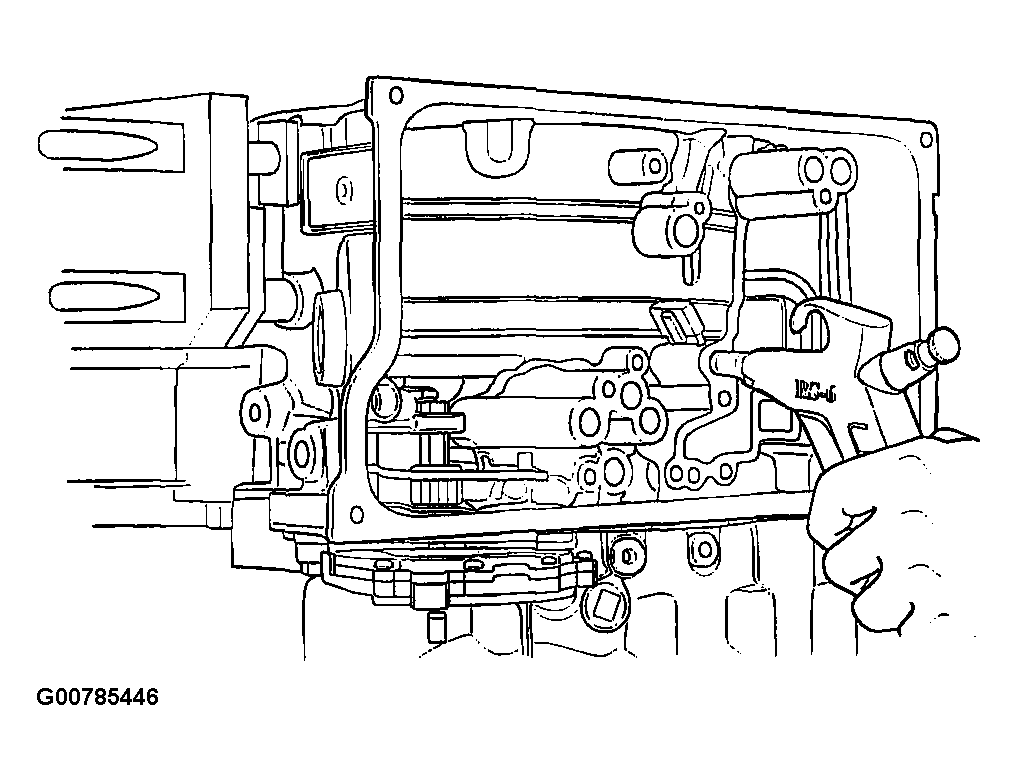

5. Release cylinder with piston D by applying compressed air to the feed bore.
   Fig 5: Applying Compressed Air To The Piston D Feed Bore

   Courtesy of SUZUKI OF AMERICA CORP.
6. Remove cylinder with piston D.

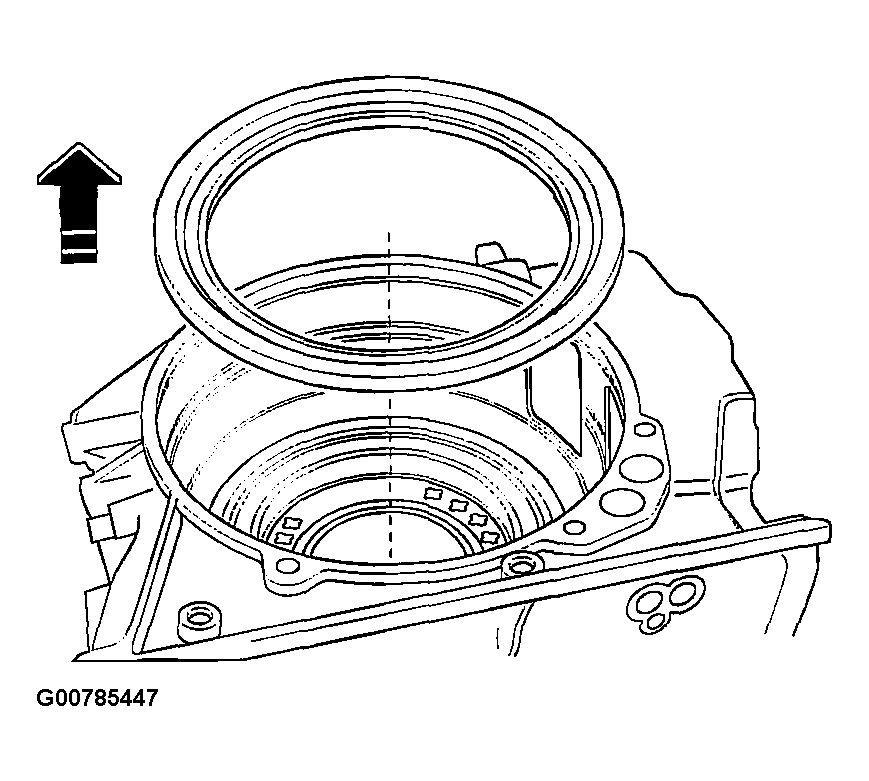

   Fig 6: Removing Cylinder With Piston D

   Courtesy of SUZUKI OF AMERICA CORP.

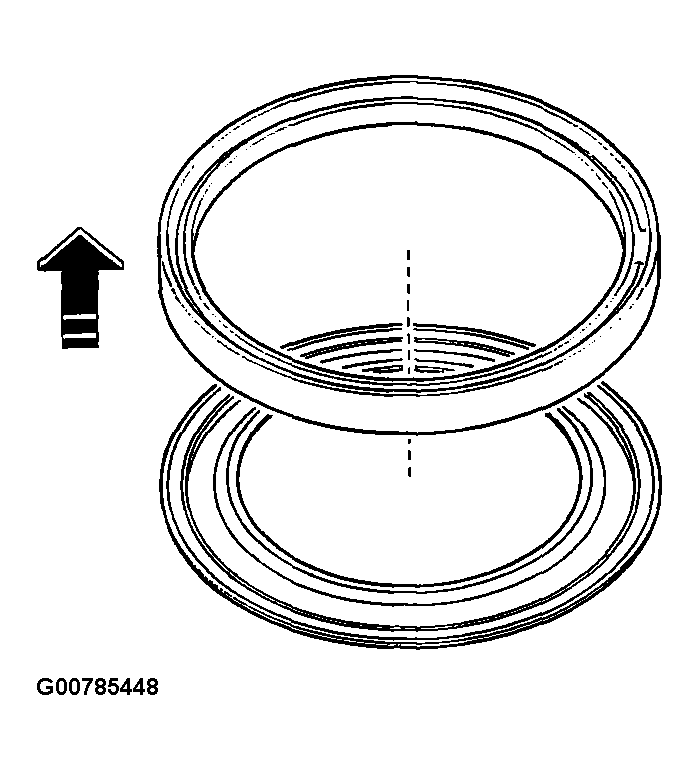

7. Separate between piston C and cylinder C.
   Fig 7: Separating Piston C & Cylinder C

   Courtesy of SUZUKI OF AMERICA CORP.
8. Take snap ring out of brake C.
   Fig 8: Taking Snap Ring Out Of Brake C

   Courtesy of SUZUKI OF AMERICA CORP.

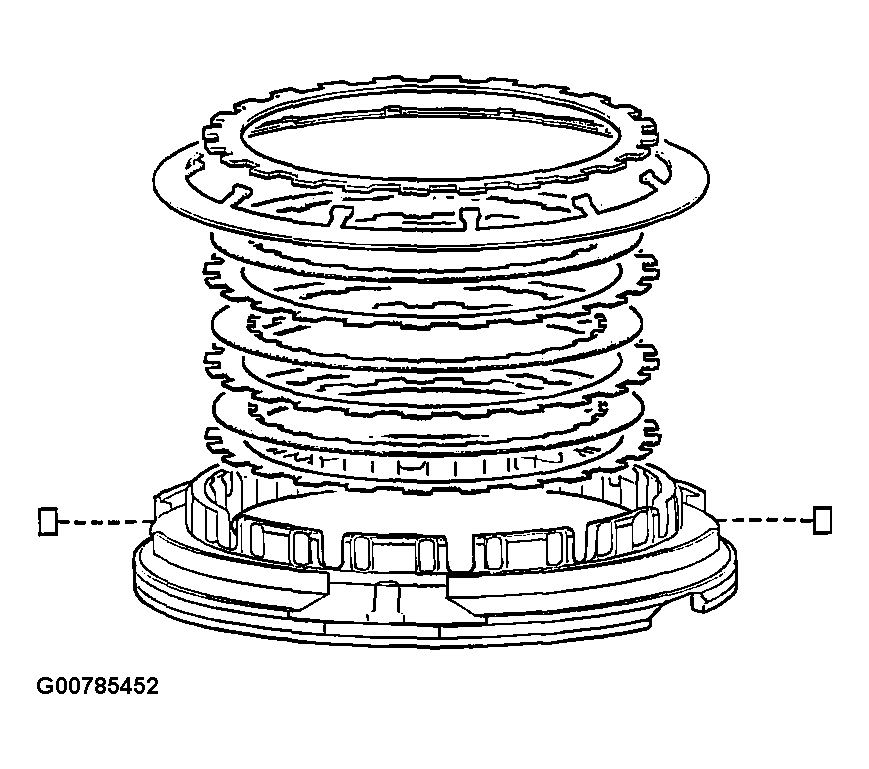

9. Remove the disc set C.

   Installation Notice

   • Transaxle has two lined clutch discs and one steel clutch disc. The lined discs must be installed in such a way that the lining faces the steel disc.
   • Insert the fitting keys into the appropriate grooves.
     Fig 9: Removing Disc Set C

     Courtesy of SUZUKI OF AMERICA CORP.
10. Turn the disc carrier C/D by 180°.

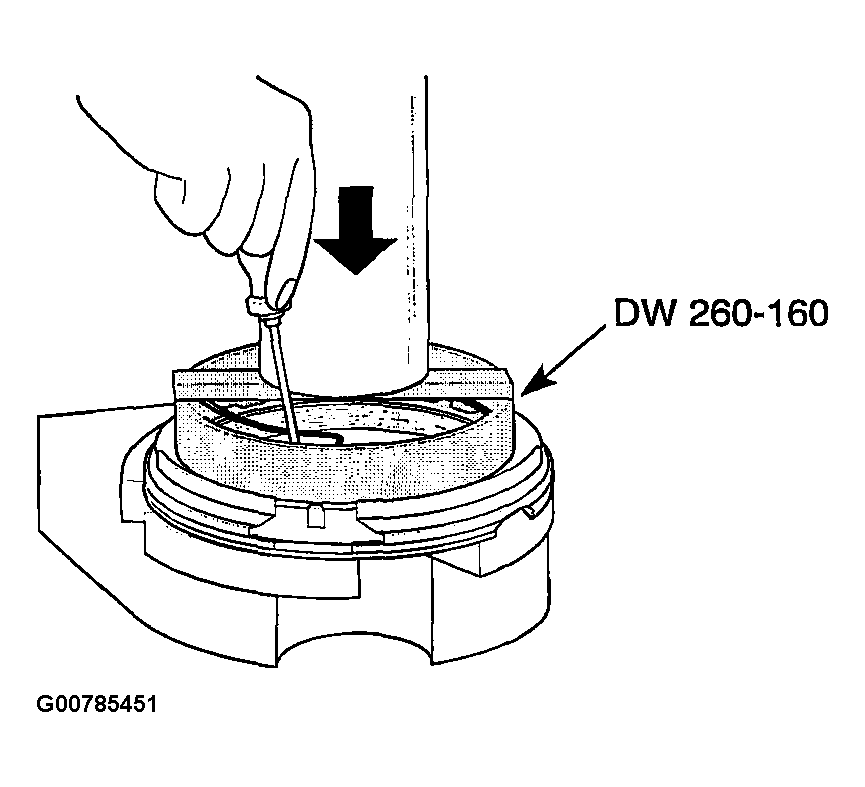

11. Using assembly bracket Press down cup spring and take out the snap ring.
    Fig 10: Taking Out Snap Ring

    Courtesy of SUZUKI OF AMERICA CORP.

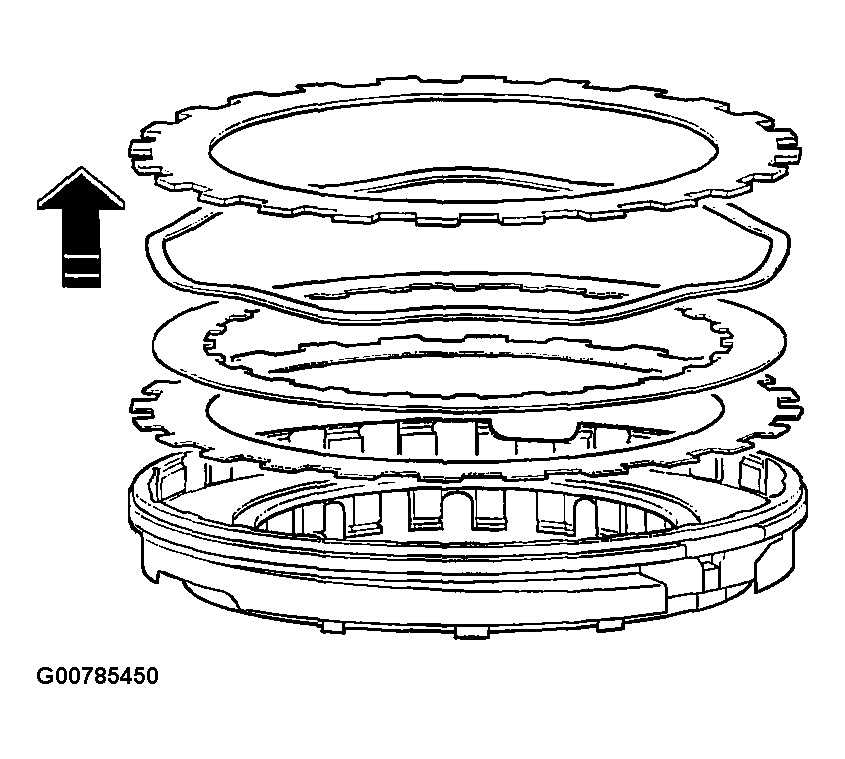

12. Remove the disc set D.
    Fig 11: Removing Disc Set D

    Courtesy of SUZUKI OF AMERICA CORP.
13. Installation should follow the removal procedure in the reverse order.
