Bearing Plate (With Spur Gear) Assembly Disassembly and Assembly

  1. Remove the piston F. Refer to BRAKE F, SLOTTED NUT DISASSEMBLY & ASSEMBLY & INSTALLATION .
  2. Remove the bearing plate bolts and bearing plate.

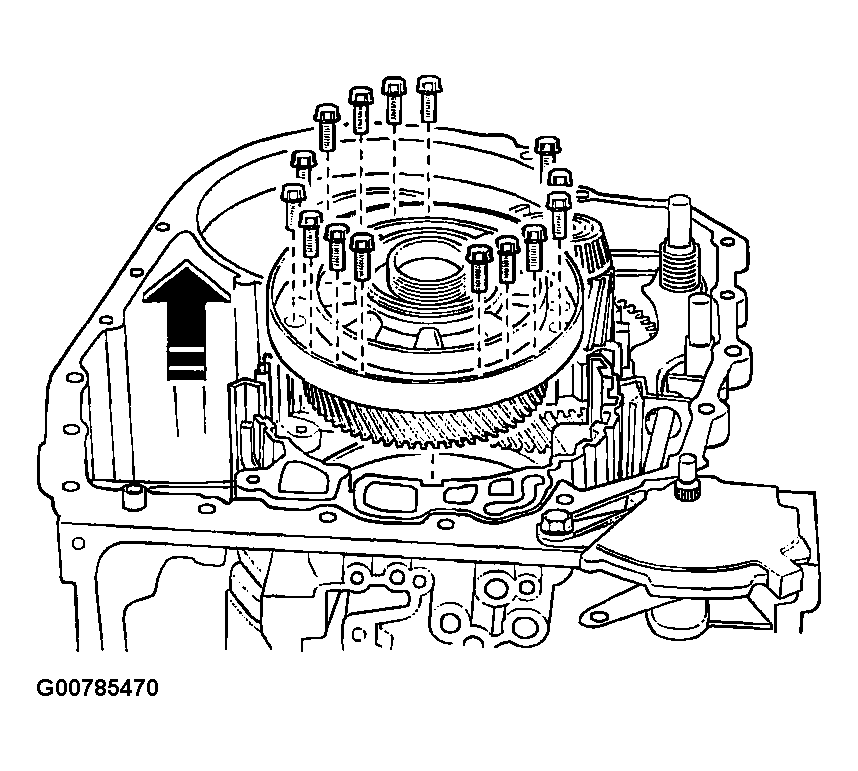

    Fig 1: Removing Bearing Plate Bolts & Bearing Plate
    G00785470Courtesy of SUZUKI OF AMERICA CORP.
  3. Installation should follow the removal procedure in the reverse order.

    Installation Notice

    Tighten

    Tighten the bearing plate bolts to 17 Ft. Lbs. (27 N.m).
